Explanation of operating controls
Fridge / Freezer models
The control panel buttons are not accessible
when the refrigerator door is closed. Open the
bottom door to reach the operating buttons.
Depending on the door opening direction,
there are two LEDs on the left or right edge of
the control panel. The outer LED (1) indicates
that the refrigerator is operational (blue). The
other LED (2) lights red in the event of a fault.

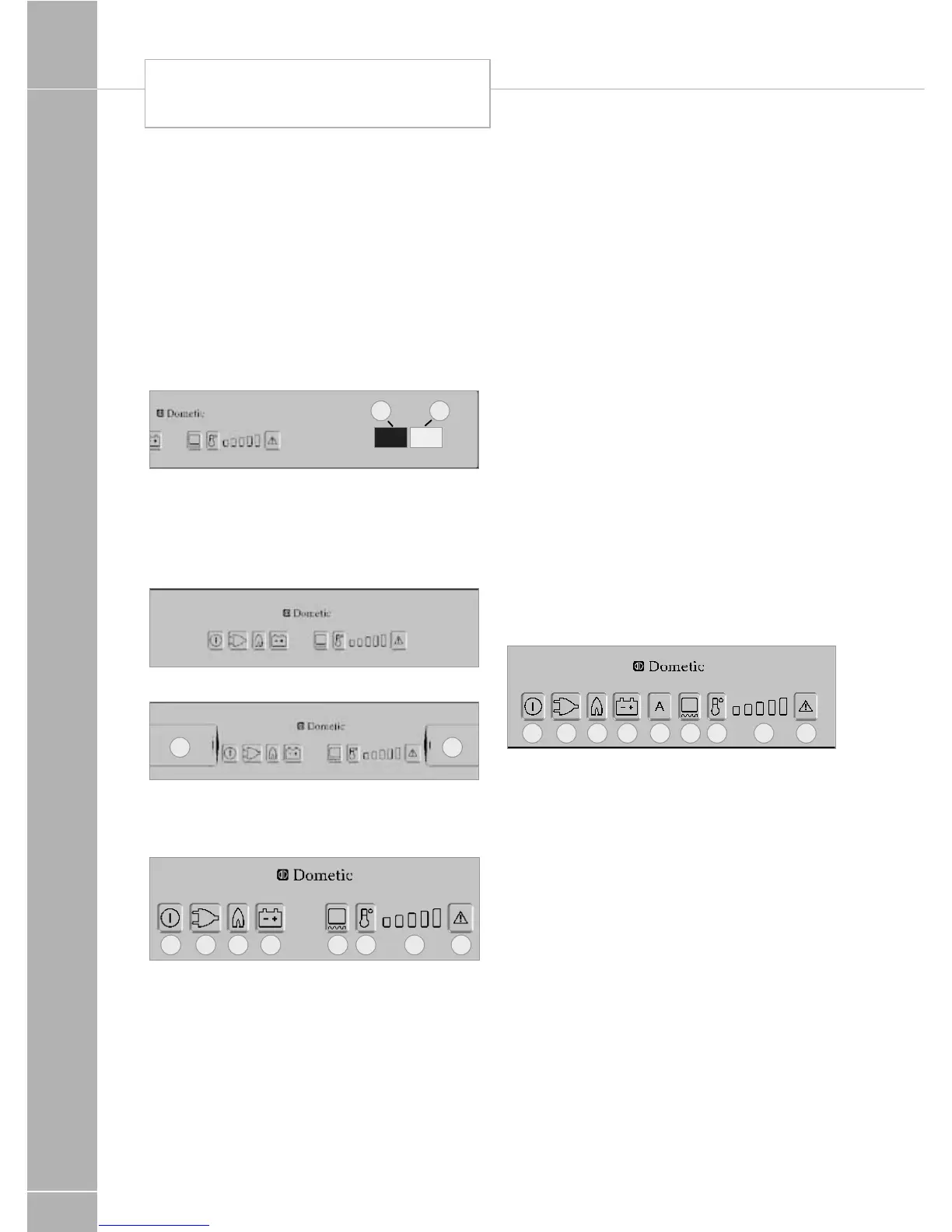

Fig. 4
Indicator LEDs
12
Refrigerators for self-contained (gas) operation
contain two battery compartments in the
control panel which are located on the left and
right next to the button bar.
Fig. 5
Operating controls without battery compartments
Operating controls with battery compartments (L, R)
L R
Manual energy selection / automatic
ignition (RMD 8xx1) MES
Fig. 7
1 2 3 4 6 7 8 9
1 - Power ON/OFF switch
2 - Energy selector button 230V ~
3 - Energy selector button GAS
4 - Energy selector button 12V =
6 - Frameheating
7 - Temperature level selection
8 - Temperature level display
9 - Indicator LED failure /
Reset button GAS FAILURE
Switching ON/OFF
• Switch ON by pressing button (1), 2s
• Switch OFF by pressing button (1), > 2s
230V AC operation
• Select “Mains voltage” by pressing button (2)
• Set temperature step by pressing button (7)
12V DC operation (vehicle’s battery)
• Select “Battery voltage” by pressing
button (4)
• Set temperature step by pressing button (7)
Gas operation
• Select “Gas” by pressing button (3)
• Set temperature step by pressing button (7)
Automatic energy selection / automatic
ignition (RMD 8xx5) AES
Fig. 8
1 2 3 4 5 6 8 97
1 - Power ON/OFF switch
2 - Energy selector button 230V ~
3 - Energy selector button GAS
4 - Energy selector button 12V =
5 - Selector button “AUTOMATIC”
6 - Frameheating
7 - Temperature level selection
8 - Temperature level display
9 - Indicator LED failure /
Reset button GAS FAILURE
Switching ON/OFF
• Switch ON by pressing button (1), 2s
• Switch OFF by pressing button (1), > 2s
