Swift SW200 User Manual

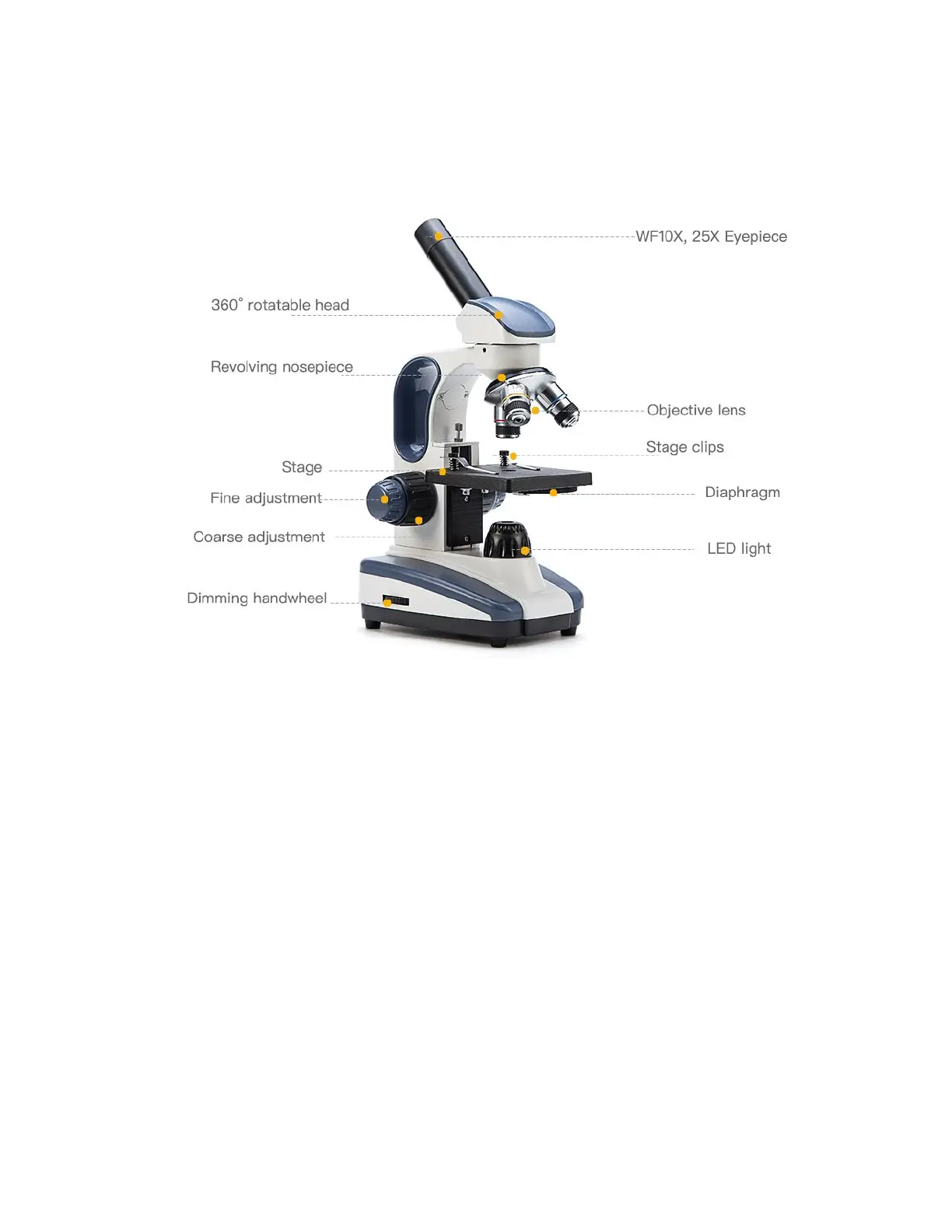

II. Parts of the microscope
III. Assembly and set up
Carefully remove the microscope from the box and set it on a sturdy, flat surface.
Remove the plastic cover from the eyepiece holder on the microscope's head, then
place an eyepiece into the holder. Locate the power adapter and attach it to the
microscope, then plug it in. Turn the microscope on by pressing the power button.
IV. Using the microscope
Turn the microscope on and use the illumination intensity control dimming handwheel to
set the lamp on the lowest brightness setting.
Secure a slide via the slide clips on the stage.
3

Swift SW200 Specifications

General

Observation tube	Monocular, 360° rotatable
Eyepiece	Wide-field 10X and 25X
Nosepiece	Triple revolving
Objectives	4X, 10X, and 40X Achromatic
Magnifications	40X, 100X, 250X, 400X, and 1000X
Condenser	6-hole disc diaphragm
Focusing	Coaxial coarse and fine focus knobs
Inclination	30°
Stage	Plain stage with slide clips
Stage size	90mmx90mm
Illumination	Dimmable bottom LED light
Power	100-240V AC adapter or 3 AA batteries (included)
