1.4 E-Gun

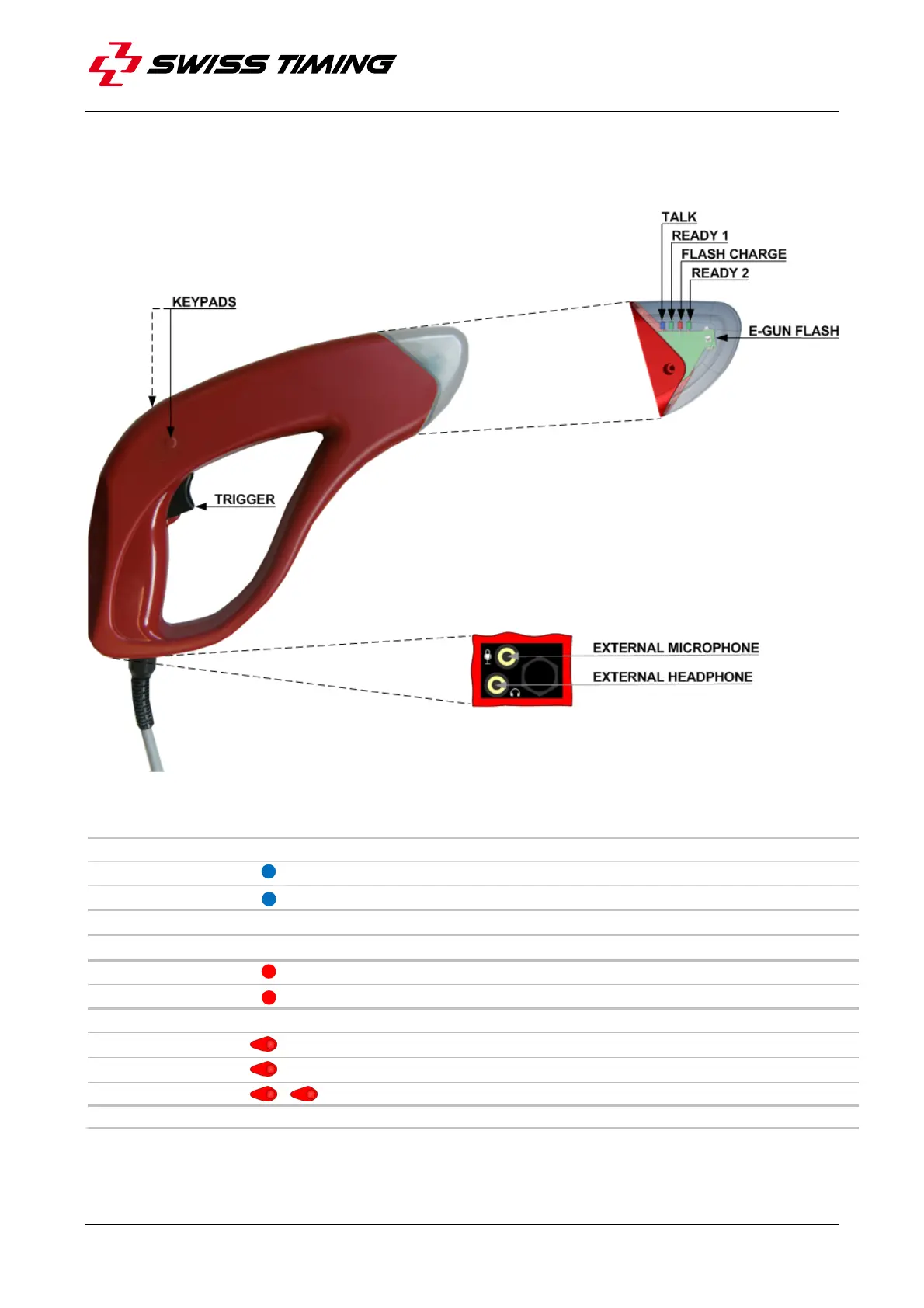

Figure 3 – E-GUN
LED / Key Description
TALK
Indication of the selected audio channel
Mode SPEAK selected
(( )) Mode TEL selected
READY 1
Indication that the main timing device is ready (MAIN / PRIMARY)
READY 2
Indication that the additional timing device is ready (BACKUP / SECONDARY)
FLASH CHARGE
Indication that the flash system is recharging
(( )) Mode TEST selected
KEYPADS
Allow starter to select the audio channel
1x Mode SPEAK
2x (quickly) Mode TEL
+ 1x Mode TEST
TRIGGER
Allow starter to start the TIMER
