3. Installation of S-7004A/S Gold mount / V-mount battery plate
To use Gold mount or V-mount battery, please install the S-7004A/S plate as following
instructions:
(1) Please make sure the power terminals are clean and in well condition before use.
(2) Connect the wire of S-7004A/S to the 2-pin DC socket.

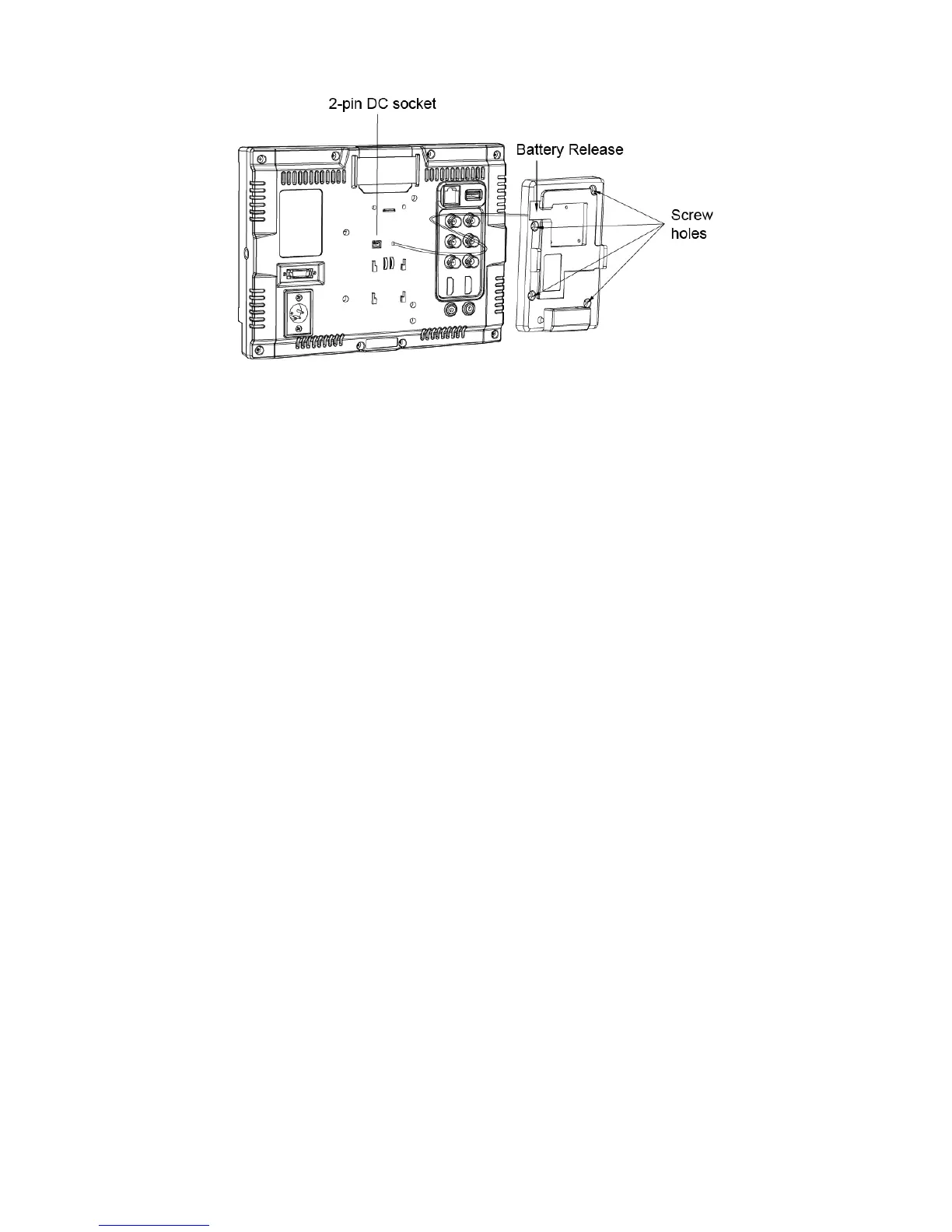

(3) Align the S-7004A/S screw holes to the bolts of the monitor rear panel.
(S-7004A Gold mount plate need a spare bedding between the monitor and plate)
(4) Fix the S-7004A/S mount by provided screws.
(5) Mount Gold mount / V-mount battery to S-7004A/S to power the monitor.
(6) Press the battery release to take down the battery
