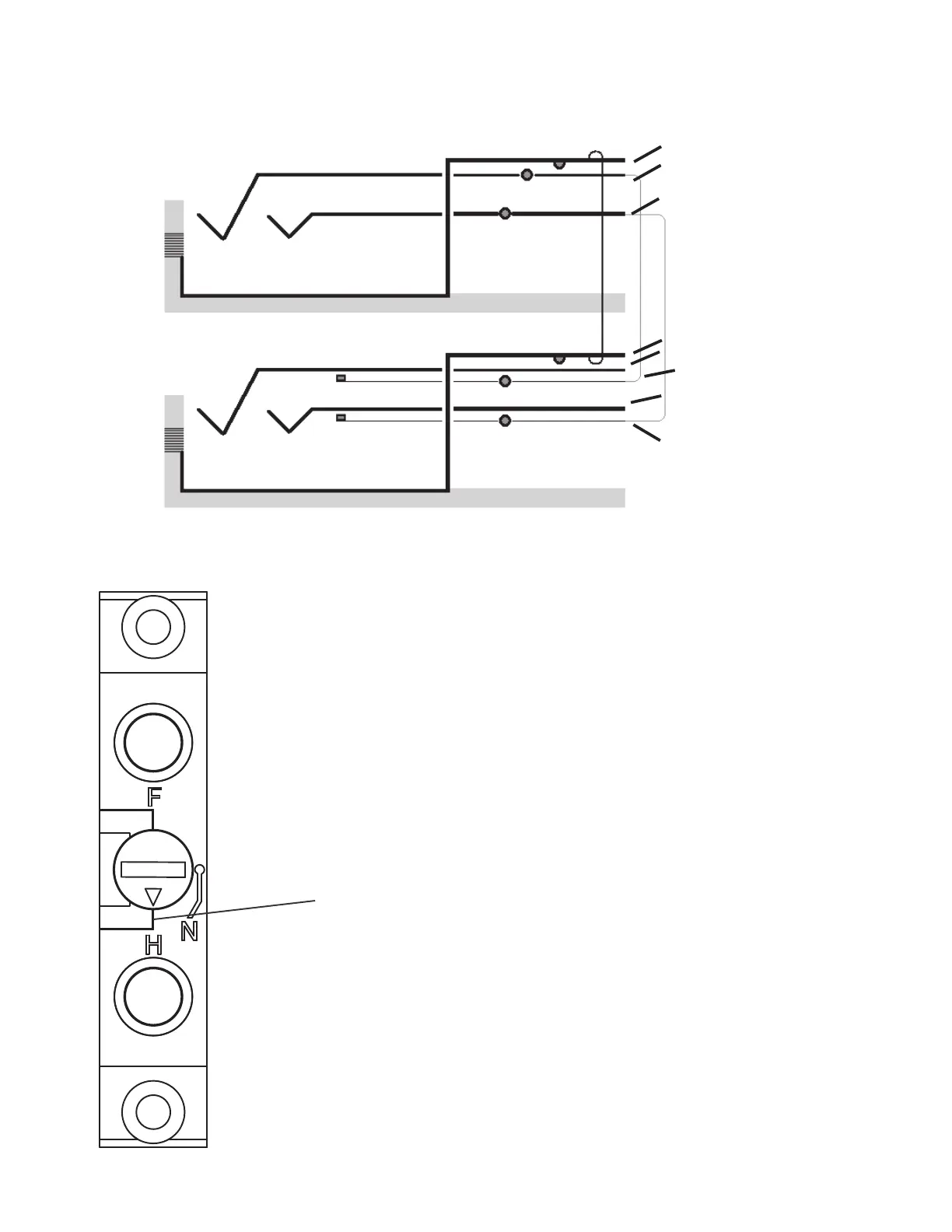

Half Normalled Position (with grounds bussed)
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Ring Normal
Tip Normal
A half-normal position occurs when the screw cam is set in the
"H" position. Both tip and ring connections of the source jack
(top) are wired respectively to the tip normal and ring normal
connections of the destination jack (bottom). Plugging a patch
cord into the source jack allows the user to monitor the source
signal without interrupting the normal path. The normal path
can be interrupted and redirected only by inserting a plug into
the destination jack (For use with analog signals only, see
AES/EBU section).
Turn arrow clockwise to this position
for Half Normal function.
12
