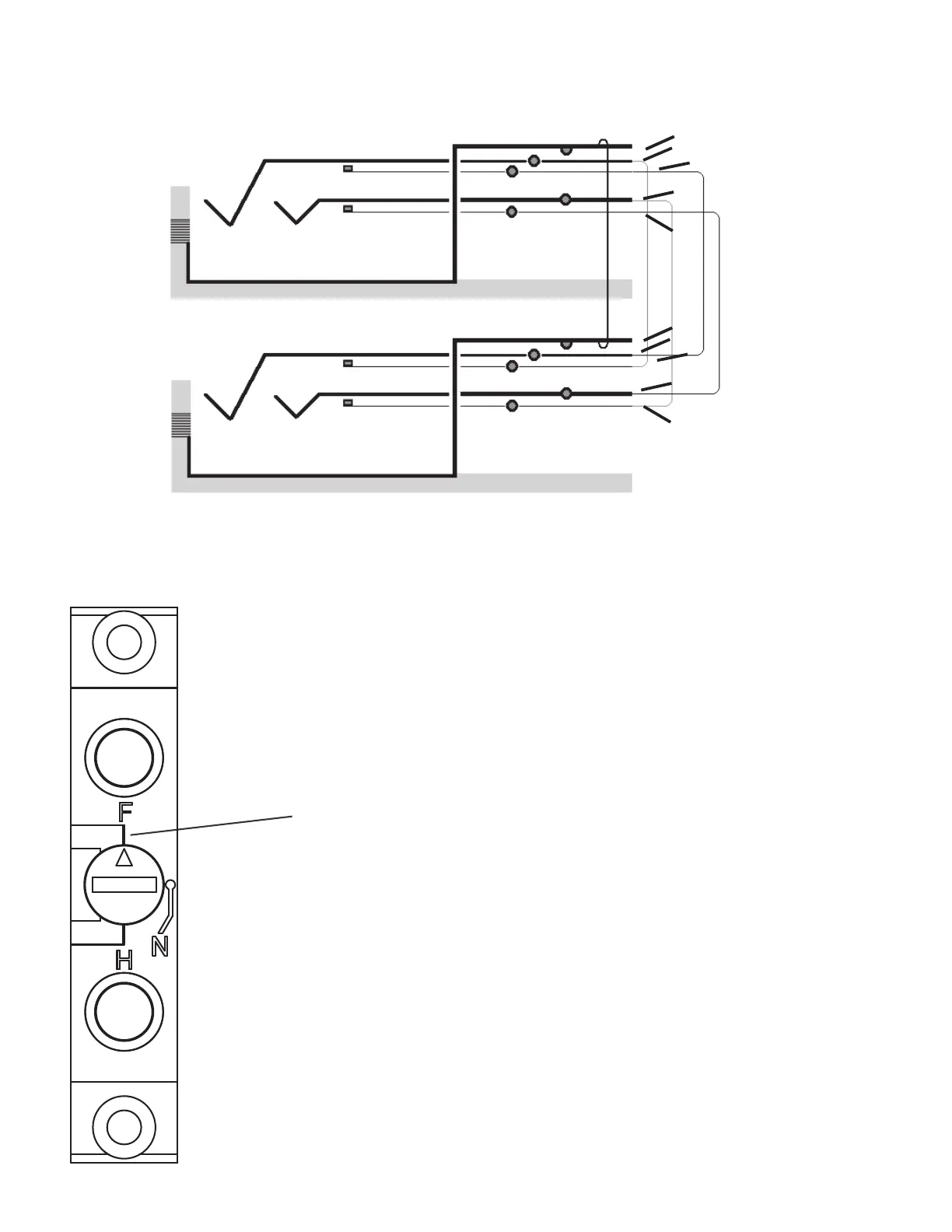

Full Normalled Position (with grounds bussed)
A full-normal position occurs when the screw cam is set
in the "F" position. The jack's primary and normalling
contacts are fully wired together from top to bottom.
This normal signal path can be interrupted and redirected
by plugging a patch cord into either jack.
Tip
Ring
Sleeve
Ring Normal
Tip Normal
Tip
Ring
Sleeve
Ring Normal
Tip Normal
Turn arrow clockwise to this position
for Full Normal function.
13
