HEADLIGHT ADJUSTMENT
When checking the proper aiming of the headlight
beam: inate tyres at the right pressure, have a person
sit astride the motorcycle and set the motorcycle
perpendicular to its longitudinal axis.

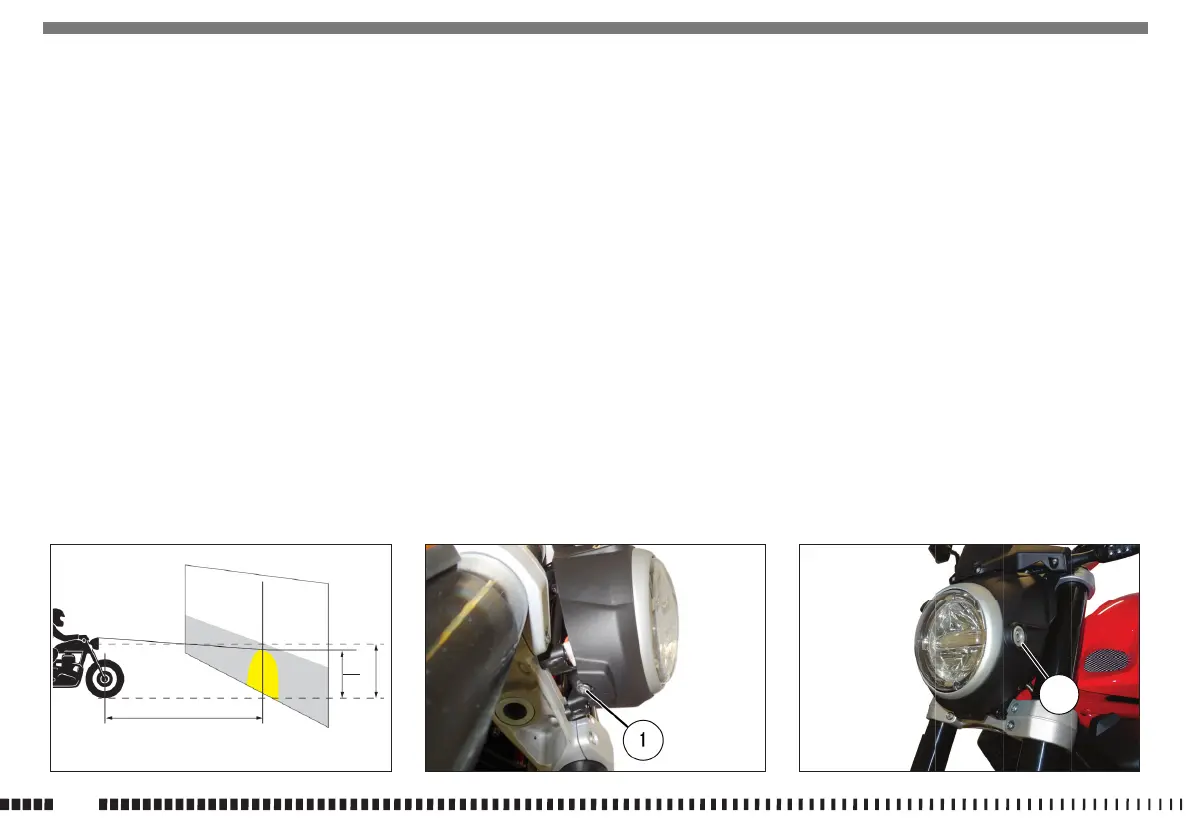

At 10 metres from a wall or screen, trace a horizontal
line at the height of headlight centre and a vertical one,
in line with vehicle longitudinal axis.
lit zone should be at a height not exceeding 9/10th of
headlight centre height from ground.
Any adjustment of the direction can be carried out
by directly using the screw (1) positioned under the
headlight, after loosening the side screws (2).
2
10 m
9 x
10
x
If possible, carry out this check in a shaded place. When
the low beam is on, the upper edge between dark and
