DEVYL ARTIC
18
2 DESCRIPTION OF THE APPLIANCE

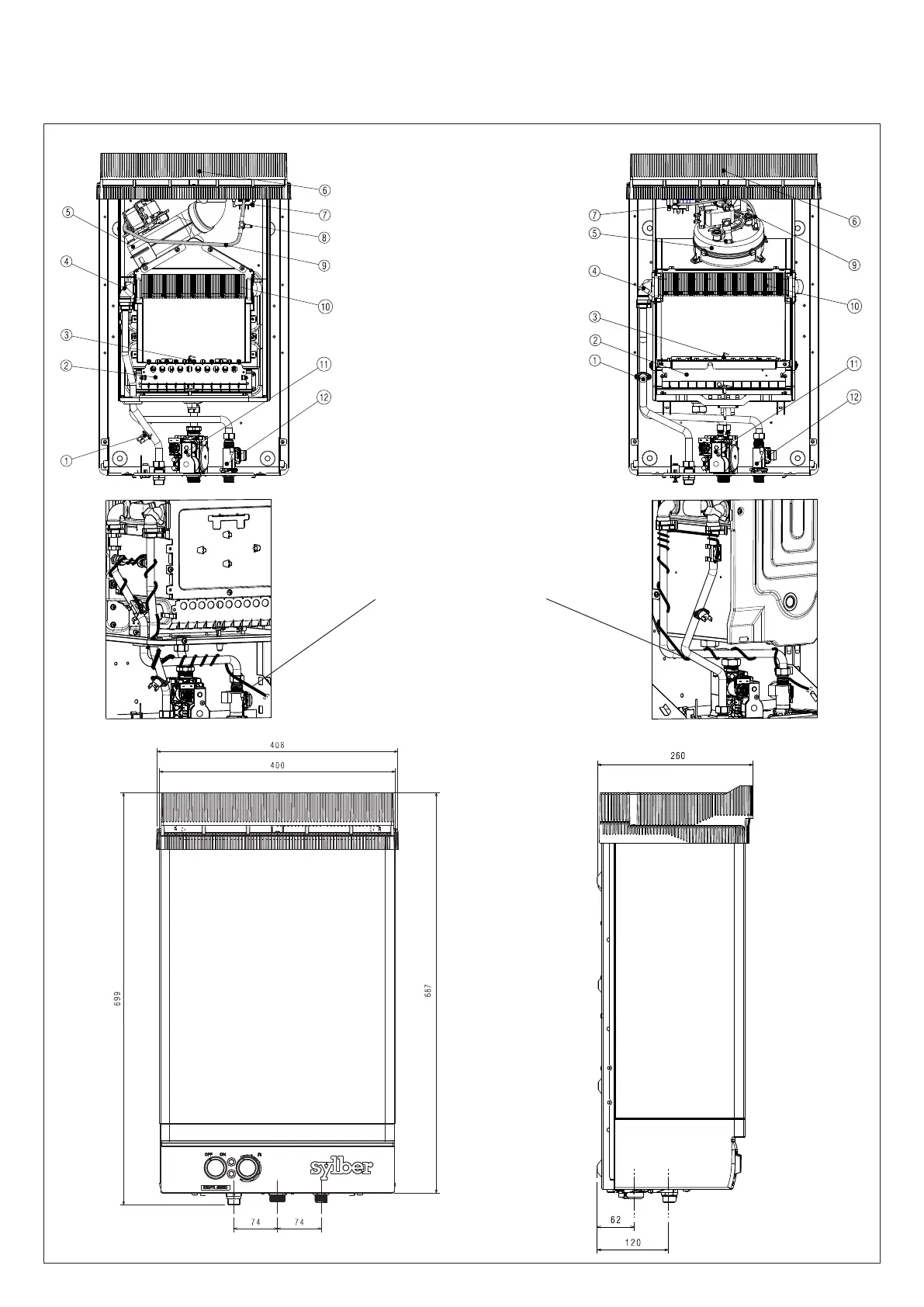

2.1 Appliance parts/Size and connections
fig. 1
DEVYL ARTIC 11-13 DEVYL ARTIC 17
1 Limit thermostat
2 Burner
3 Ignition/detection electrode
4 NTC sensor
5 Fan
6 Flue gas outlet
7 Air pressure switch
8 Signal amplifier
(only 11-litre model)
9 Pressure/vacuum
10 Exchanger
11 Gas valve
12 Water flow switch
wire-wound heating element
gas
water
