Sylvac UL 4 User Manual

6
1. Operating features of the instrument
- The instrument has two operating modes: basic functions (direct ac-
cess) and advanced functions. In addition to the conguration functions,
available access to the MIN, MAX and DELTA (TIR) mode, or display of
tolerances (see chaps. 3 and 4)
- The «favourite» key gives direct access to the function used most often
(see chap. 7)
- Sets a Preset value, reset the MIN/MAX mode, veries a selection, and
controls switching off the instrument. By default, SIS mode enables au-
tomatic switch-off with no loss of origin (see chap. 8).
1.1 Personalising the functions
It is possible to activate or de-activate certain functions of the instrument via
RS232 (see chap. 11)
1.2 Data transmission parameters
4800Bds, 7 bits, even parity, 2 stop bits
2. Start
Press a button.
SET
MODE
3. Basic functions
MODE
MODE
SET

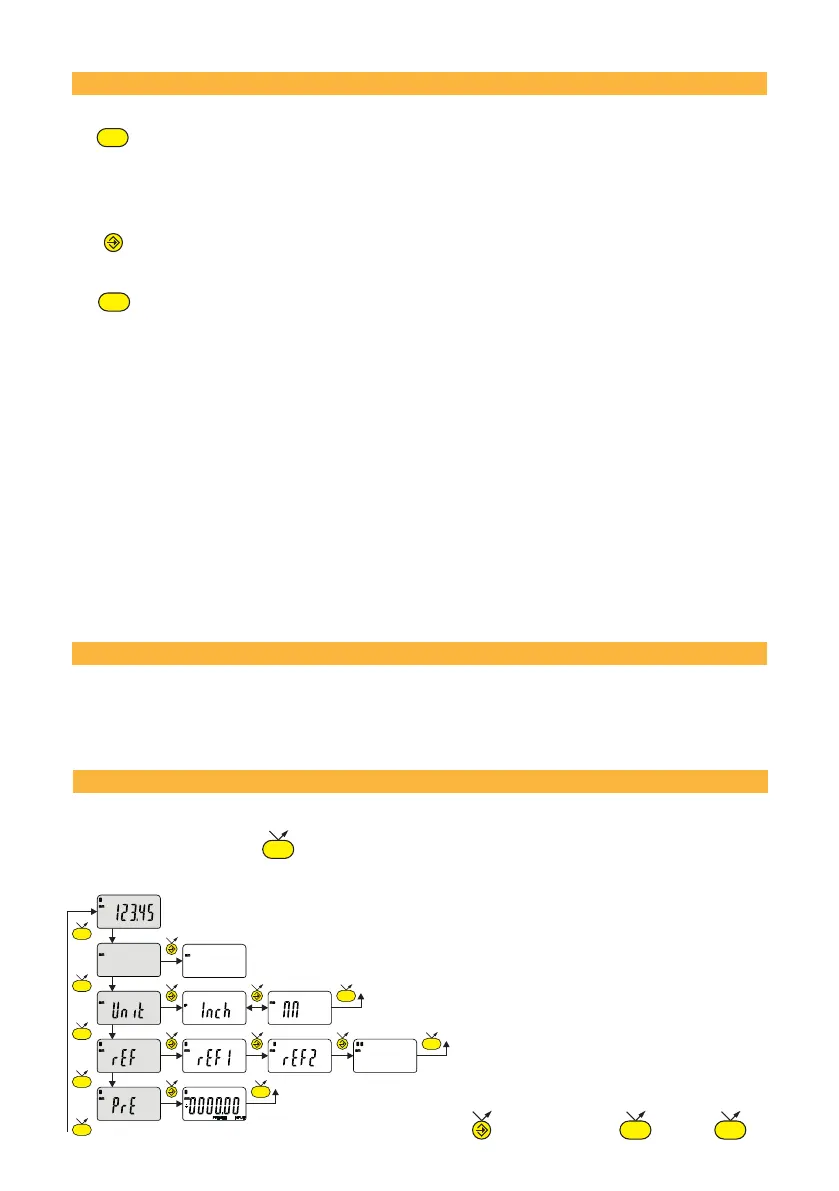

Each short press on gives direct access to the basic functions :
→ Units selection (mm or Inch)
→ Choice of reference (REF1, REF2 or
automatic REF)
→ Inputting a Preset value
next digit 0...9
save the
Preset
MODE
MODE
SET
MODE
SET
MODE
MODE
MODE
ArEf
sEt 0.00
→ Normal mode : zero reset
Min (max) Mode : diameter calibration on the
measured min (max) value.
