1-7-4 T5307EA
5. V. Size Adjustment
Purpose: To obtain correct vertical height of screen
image.
Symptom of Misadjustment: If V. Size is incorrect,
vertical height of image on the screen may not be
properly displayed.
1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-S Mode. (Press "9" button then display will
change to V-P and V-S).
2. Input monoscope pattern.
3. Press CH o / p buttons on the remote control unit
so that the monoscope pattern is 90±5% of display
size and the circle is round.
6. V. Shift Adjustment
Purpose: To obtain correct vertical position of screen
image.
Symptom of Misadjustment: If V. position is incor-
rect, vertical position of image on the screen may not
be properly displayed.
1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-P Mode. (Press "9" button then display will
change to V-P and V-S).
2. Input monoscope pattern.
3. Press CH o / p buttons on the remote control unit
so that the top and bottom of the monoscope pat-
tern are equal to each other.
7. H. Shift Adjustment
Purpose: To obtain correct horizontal position and
size of screen image.
Symptom of Misadjustment: Horizontal position and
size of screen image may not be properly displayed.
1. Enter the Service mode. (See page 1-4-1.)
Press "8" button on the remote control unit and
select H-P Mode.
2. Input monoscope pattern.
3. Press CH o / p buttons on the remote control unit
so that the left and right side of the monoscope pat-
tern are equal to each other.
4. Turn the power off and on again.
8. Cut-off Adjustment
Purpose: To adjust the beam current of R, G, B, and
screen voltage.
Symptom of Misadjustment: White color may be
reddish, greenish or bluish.

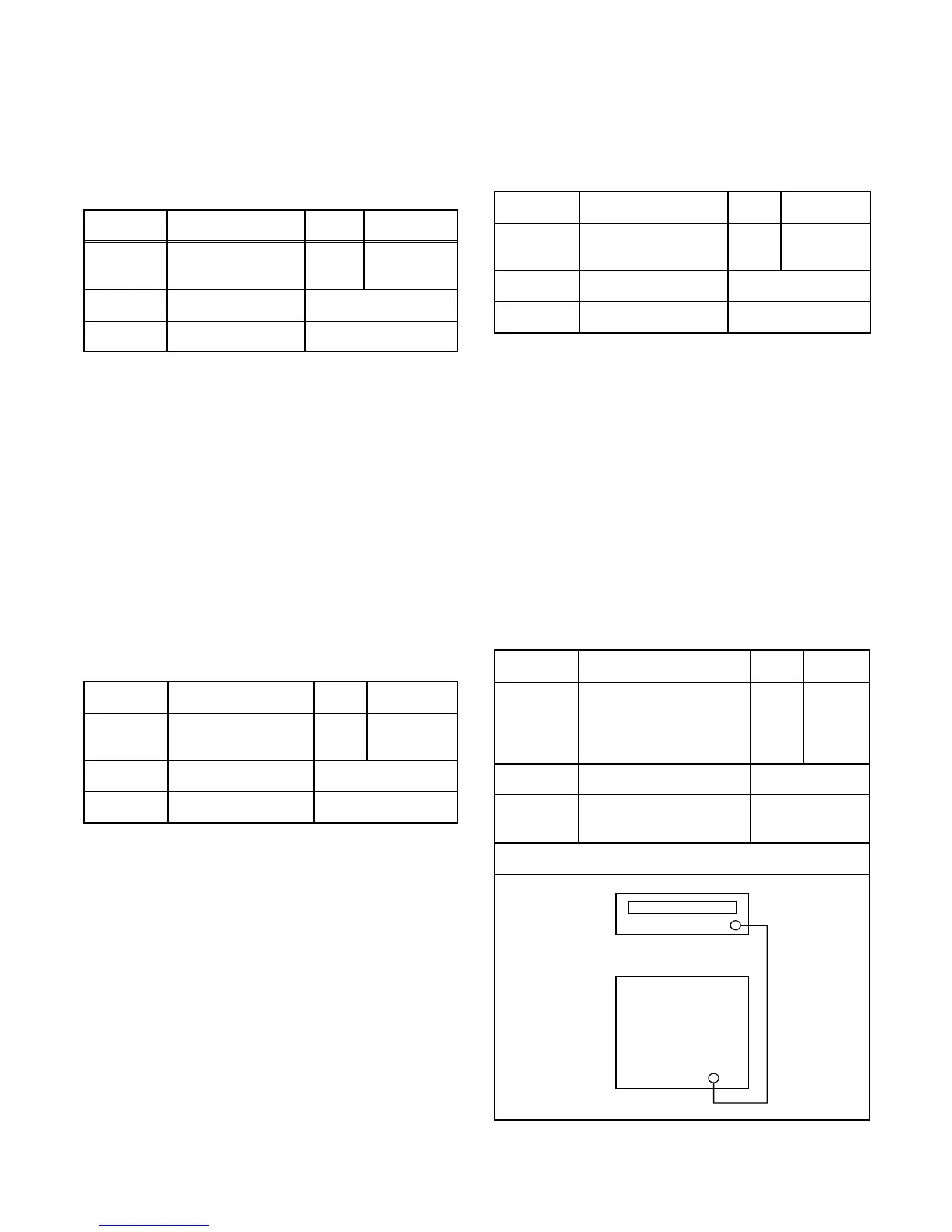

Test point Adj. Point Mode Input
---
CH o / p
buttons
--- Monoscope
Tape M. EQ. Spec.
--- Pattern Generator 90±5%
Test point Adj. Point Mode Input
---
CH o / p
buttons
--- Monoscope
Tape M. EQ. Spec.
--- Pattern Generator 90±5%
Test point Adj. Point Mode Input
---
CH o / p
buttons
--- Monoscope
Tape M. EQ. Spec.
--- Pattern Generator 90±5%
Test point Adj. Point Mode Input
--- Screen-Control Ext.
Black
Raster /
White
Raster
Tape M. EQ. Spec.
--- Pattern Generator
See Reference
Notes below
Figure
PATTERN GENERATOR
EXT. INPUT
Fig. 3
