7. Use of each component
7
Gauges
CAUTION:
Do not wipe plastic components, such as the instrument panel, the headlight, body covers, etc. with
solvents, such as gasoline, etc. Wiping plastic components with solvents can damage these
components.
Speedometer:
This shows your speed in kilometers per hour (km/h).
Odometer:
This odometer shows the total kilometers this motor has been driven.
Turn Signal Indicator:
The left or right Indicator will be flashing according to the operated directions of turn signal light switch
when it is turned on.
High Beam Indicator:
This indicator comes on when the high beam headlight switch is turned on.
Fuel Gauge:
The pointer in this gauge shows how much fuel remains in the tank.
The pointer stays in “E” position when key switch is turned to “ .”
When key switch is turned to “ ”, and the “pointer” also in “E” position (red area).
Refuel immediately.
Water temperature gauge:
To indicate engine coolant temperature.
When the main switch turns to “ ”, the pointer indicator should be below the (H) position when the
scooter is operating.
If the pointer indicator stays above (H) position. Please check the coolant level of spare coolant tank
and check cooling fan for proper operation.
CAUTION:
The indicator will stay above (H) position when engine is run under high temperature for a long period
of time. In this case, the only way to cool the engine is to stop the engine.

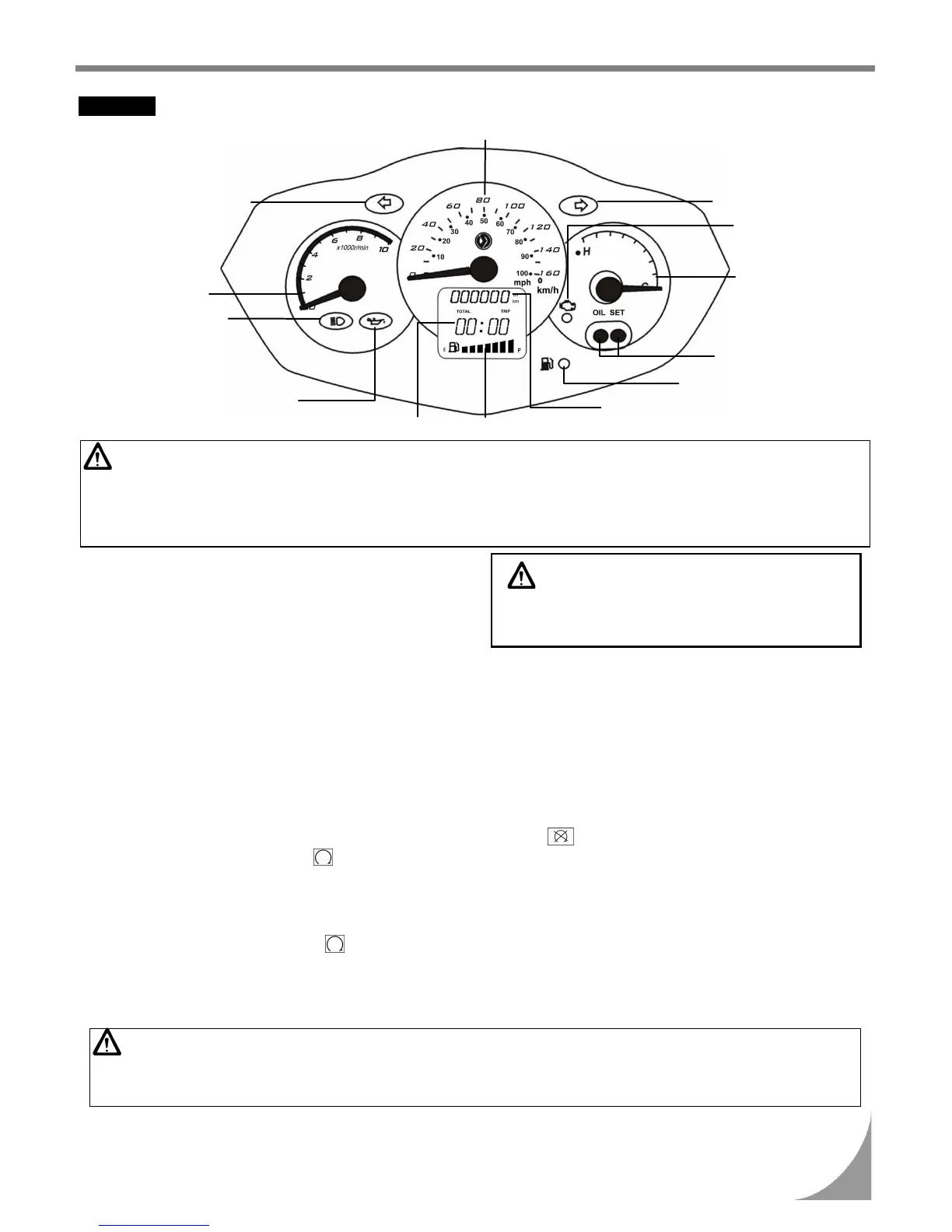

Water temperature
gauge
Fuel Gauge
Turn Signal Indicator
Odometer
Speedometer
Oil change
indicator
Clock
High Beam Indicator
Turn Signal Indicator
WARNING:
To ensure safe riding always observe the
speed limit and other road signs.
tachometer
Time set button
EFi Indicator
Fuel Warning Indicator
