10. Inspection and maintenance before riding
17

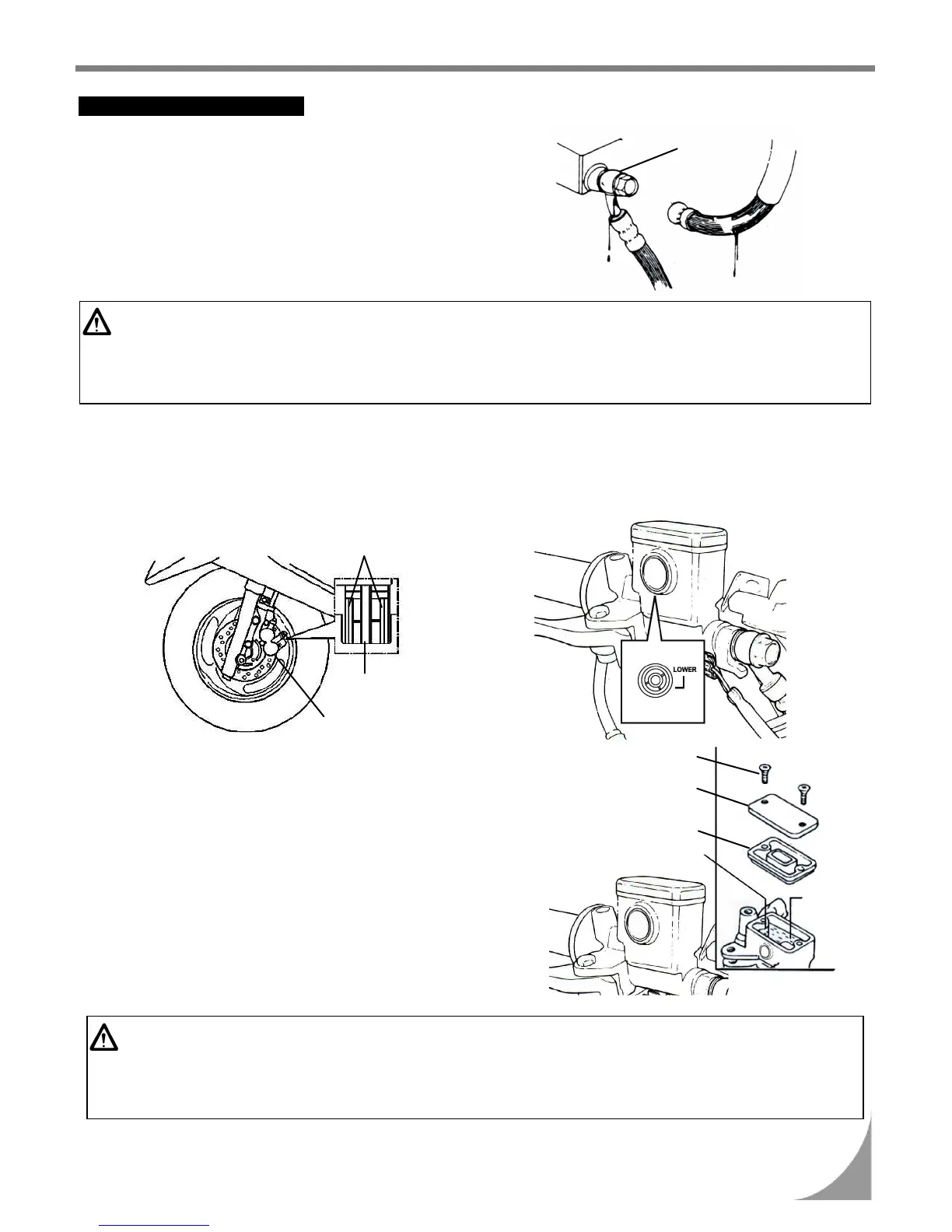

DISK BRAKE INSPECTION (Applicable for model equipped with disc brake.)
(Leak, damaged, looseness of brake line)
Visual Inspection for leakage or damage. If there is any,
take your scooter to SYM Authorized Dealer or
Franchised Dealer for a check or repair. Do not
operate the scooter in this condition until the problem
has been resolved.
CAUTION:
Please drive your motorcycle on a dry road surface slowly and operate front and rear brakes in order to
find out if there is any malfunction so as to ensure the motorcycle is at its optimum condition and safe to
ride.
﹙
﹙﹙
﹙ Checking front brake lining﹚
﹚﹚
﹚
• Check the brake from behind the brake caliper.
The brake pad must be replaced with new lining
when the brake pad wear limit reaches the
brake disk.
• Park the motorcycle on a level ground, and
check if fluid level is under the “LOWER”
mark. Recommended Brake Fluid: WELL
RUN BRAKE OIL (DOT 3).
﹙
﹙﹙
﹙ Replenishment of brake fluid﹚
﹚﹚
﹚
1. Loosen the screws and remove the master cylinder cover.
2. Wipe clean foreign materials , dirt around the reservoir, being
careful not to let foreign materials fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper level.
5. Install the diaphragm plate and the diaphragm, and install the
master cylinder cover.
6. Please note the diaphragm direction, and do not let foreign
materials fall into the reservoir. And tighten the master
cylinder cover securely.
CAUTION:
To prevent chemical reaction, please do not use brake fluids other than those recommended.
Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
