SYM 11. CRANKCASE/CRANKSHAFT
11-3

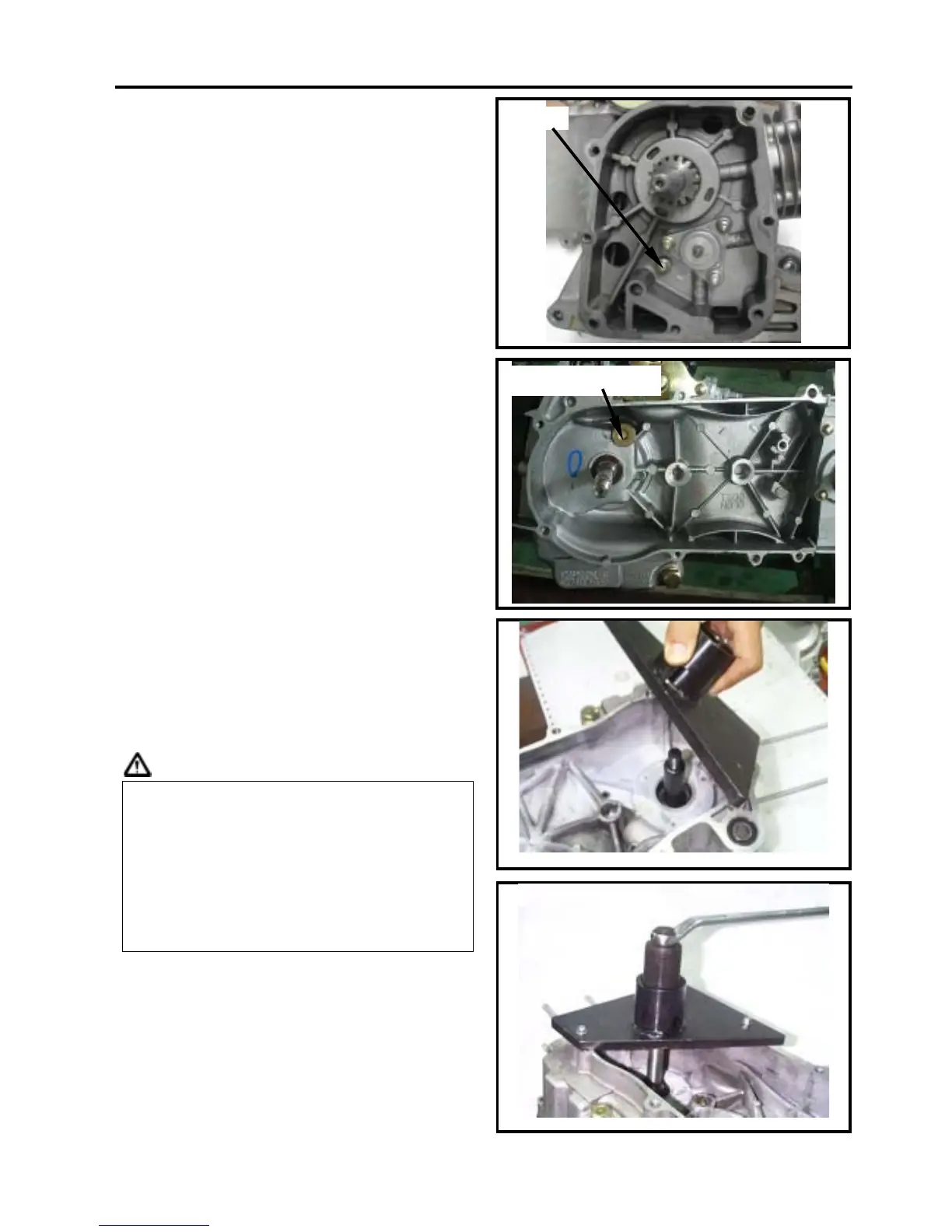

DISASSEMBLY OF CRANKCASE
Remove the 1 bolt from the right crankcase.
Remove the cam chain tensioner (hex socket
bolt) from the left side of crankcase.
Place the left side of crankcase upward,
and then install the crankcase remover/set
onto the crankcase.
Drive the screw of the crankcase
remover/set into the crankcase, and then
separate the left and the right crankcases.
Remove the cam chain.
Caution
Special Service Tools:
Crankcase remover/set
 Never pry out the connection surfaces
of crankcases as separating.
Otherwise, the connection surfaces
could be damaged and cause oil
leaking.
 It have to separate the cam chain and
the drive gear before pressing out the
both left and ri
g
ht crankcases.
1 bolt
1 hex socket bolt
