(The following is SYM 4 stroke liquid cooling scooter’s basic operation, and they could vary from different
individual models. Please consult the end of this manual.)

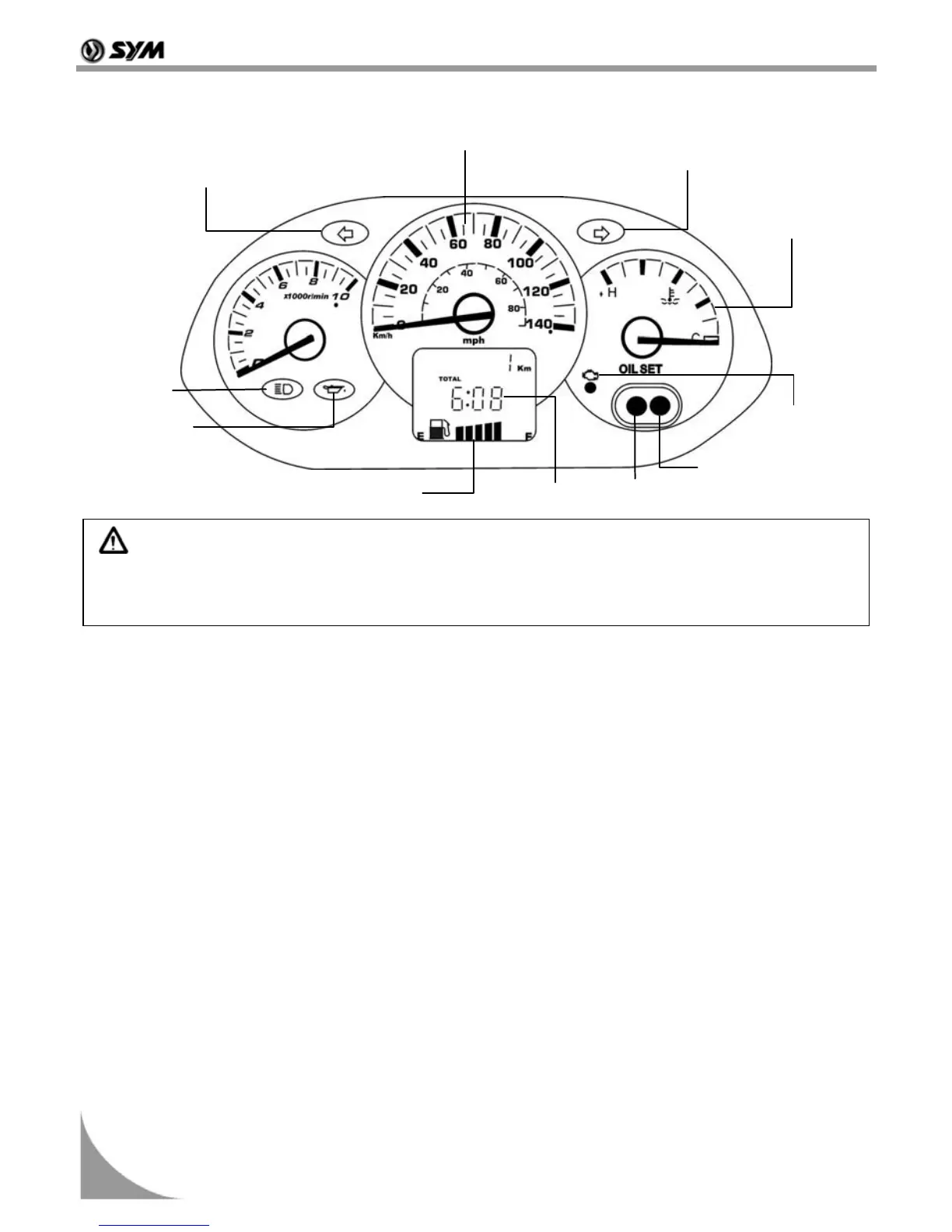

Gauges
Water temperature
gauge
S
Turn Signal Indicator
Turn Signal Indicator
High Beam
Indicator
Fuel Gauge
Oil check
Indicator
Odometer/Clock
Set Button
Oil reset
EFi Indicator
button
CAUTION :
• Not to have trouble on electrical meter working, or damage the electrical meter.
• Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such
• As gasoline…etc. to avoid damaging these components.
y Speedometer:
This shows your speed in kilometers and miles per hour (Outer ring for Km/h, inner ring for MPH).
• Odometer：
This odometer shows the total kilometers this scooter has been driven.
• High Beam Indicator( blue)：This indicator comes on with high beam headlight is turned on.
• Turn Signal Indicator(green)：The left or right Indicator will be flashing according to the operated
directions of turn signal light switch when it is turned on.
• Fuel Gauge：
The fuel gauge doesn’t come on when the main switch is at “OFF” position.
When key switch is turned to “ON”, and the “pointer” indicates above “E” position, it shows how much fuel
in the tank, and also the fuel indicator light keeps coming on. When the “pointer” is below “E” position, the
fuel indicator flashes, and the fuel warning indicator(orange) will come on. It means there is only
approximately 1.72 liter of fuel left in the tank. Refuel octane 92/95/98 unleaded gasoline immediately.
