16

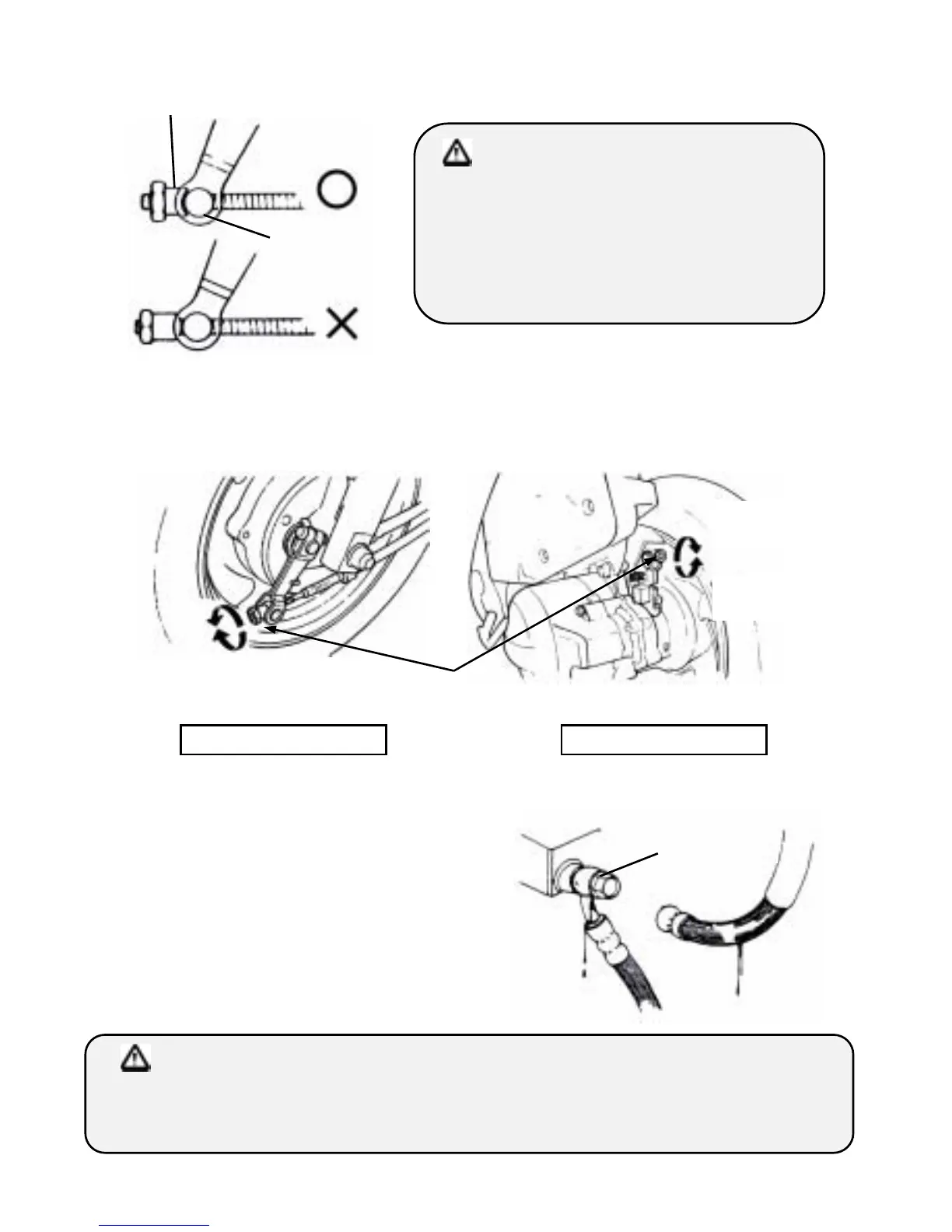

Adjustment:﹙Drum type﹚
• The indentation of brake adjustment nut must be aligned with the pin. (see below figure)
• Turn the adjustment nut on brake arm of front and rear wheels to adjust the free play of hand-brake
lever.
• Hold the hand-brake levers after adjusting with both hands until there is effective brake feeling.
• Measure the free play with a rule.
DISK BRAKE INSPECTION (Applicable for model equipped with disc brake.)
(Leak, damaged, looseness of brake line)
• Visual check brake lines for leakage, or damage,
check brake lines connections for looseness using a
wrench or similar tool, and check whether steering
handle vibration in driving, or any parts' interference
may have damage the brake lines. If so, bring your
motorcycle to your SANYANG dealer for repairing or
service.
CAUTION:
When free play is between 10~20 mm, check
brake indicators of front and rear wheels. If the
arrow on the brake arm aligned with the “△”
marked on the brake disk, that means the brake
lining has been excessively worn, and must be
replaced immediately.
CAUTION:
z Please drive your motorcycle on a dry road surface slowly and operate front and rear brakes in
order to find out if there is any malfunction so as to ensure the motorcycle is at its optimum
condition and safe to ride.
Pin
Adjustment nut
Front wheel drum type Rear wheel drum type
Adjustment nut
To increase
free play
To decrease
free play
To increase
free play
To decrease
free play
Hose connection
