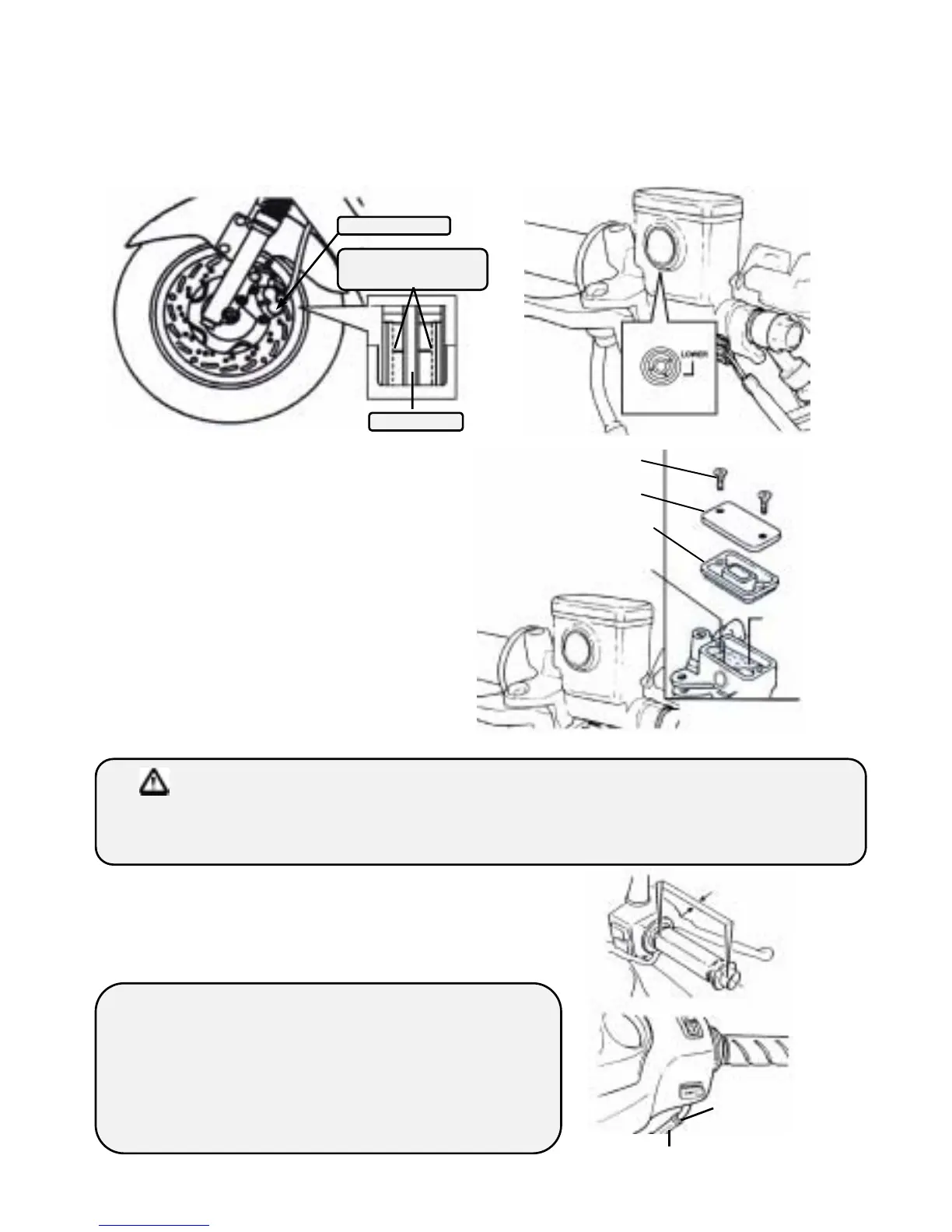

﹙Checking front brake lining﹚ ﹙Checking oil quantity in brake oil reservoir﹚
• Check the brake from behind the brake
caliper. The brake pad must be replaced with
new lining when the brake pad wear limit
reaches the brake disk.
• Park the motorcycle on a level ground, and
check if fluid level is under the “LOWER” mark.
Recommended Brake Fluid: WELL RUN
BRAKE OIL (DOT 3).
﹙Replenishment of front wheel brake fluid﹚
1. Loosen the screws and remove the master
cylinder cover.
2. Wipe clean foreign materials , dirt around the
reservoir, being careful not to let foreign
materials fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper level.
5. Install the diaphragm plate and the diaphragm,
and install the master cylinder cover.
6. Please note the diaphragm direction, and do not
let foreign materials fall into the reservoir. And
tighten the master cylinder cover securely.
THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT
• Correct clearance allows throttle vale handle to rotate 2~6mm.
• Loosen the lock nut first, then turn the adjust nut to adjust.
Tighten the lock nut securely when finished.
Brake pad wear limit
grooves
Brake disk
Brake cali
CAUTION:
• To prevent chemical reaction, please do not use brake fluids other than those recommended.
• Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
Check Items:
1. Check throttle valve cable to see if it can be moved
smoothly from a closed position to a wide open position.
2. Rotate steering handle from side to side to check if the
throttle valve cable is interfered.
3. 3. Check to see if the throttle valve cable is obstructed
by other cables preventing it from being operated
