15

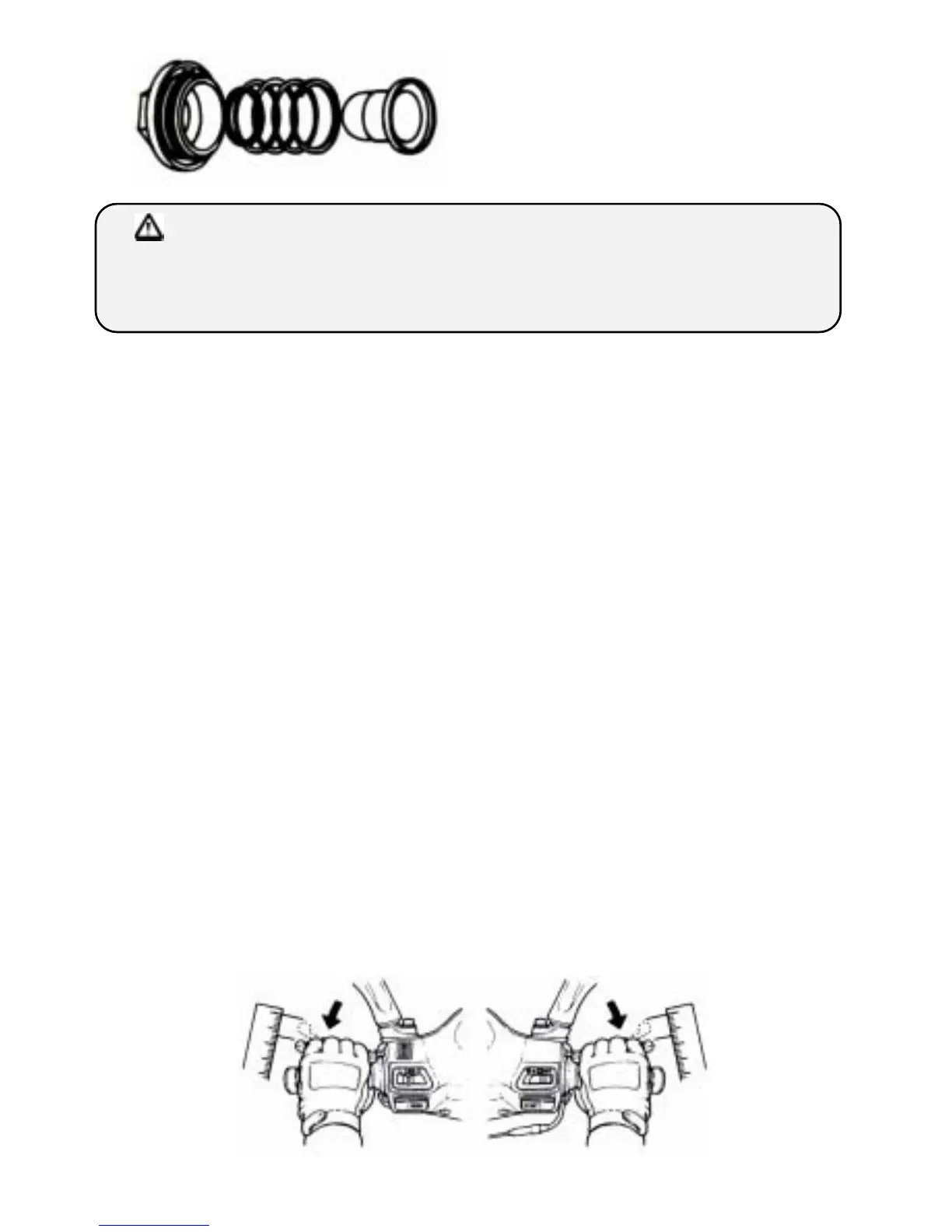

【Oil Filter Cleaning】
Open the filter nut assembly of the element, and
remove the element. Remove the foreign materials
from the element by using a gasoline or air spraying
gun.
FUEL INSPECTION
• Turn main switch key to "ON" position, and check fuel gauge's needle range to make sure there is
enough amount of fuel in the fuel tank.
• This motorcycle’s engine is designed for using the unleaded fuel of Octane 90 or above.
• Firmly secure the main stand on the ground, shut off the engine and keep flames away from the
motorcycle when refueling.
• Do not fill above fuel upper limit level when refueling.
• Make sure the fuel tank cap had been tighten properly.
TRANSMISSION OIL INSPECTION AND CHANGE
INSPECTION:
• Use the main stand to support the motorcycle on a level ground, after the engine stops, wait for 3~5
minutes. Remove the transmission oil infusion bolt, put a measuring glass under the drain bolt, and
remove the drain bolt. Let the oil flows into measuring glass and check for decreased or not. (at
disassembly: 110 c.c. / at change: 90~100 c.c.).
OIL REPLACEMENT:
• Stop the engine and use the main stand to support your motorcycle on a level ground. Remove the
infusion bolt and drain bolt, drain out the oil.
• Install the drain bolt and tighten it. Fill new transmission oil (90~100 c.c.), and install the infusion bolt
and tighten it. (make sure that bolts are tightened and check that there’s no leakage.)
※ Recommend Oil: Genuine SYM HYPOID GEAR OIL (SAE 85W-140).
INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY
INSPECTION: (Brake lever free play must be checked with the engine shut off.)
• Brake lever free play for front and rear wheels
When checking the hand-braking lever for front and rear wheels, its free play (the stroke of
hand-braking lever from no braking to initial braking) should be 10~20mm. It is abnormal if the feel is
spongy when holding the hand-braking lever forcefully.
WARNING:
• Oil level will not be correct when checking the oil level with the motorcycle parked on an
unleveled ground or immediately after the engine stopped.
• Engine and exhaust pipe are hot right after engine stopped. Pay special attention not to get
burned when checking or replacing engine oil.
10~20 mm
