10. Alternator / Starting Clutch
10-3

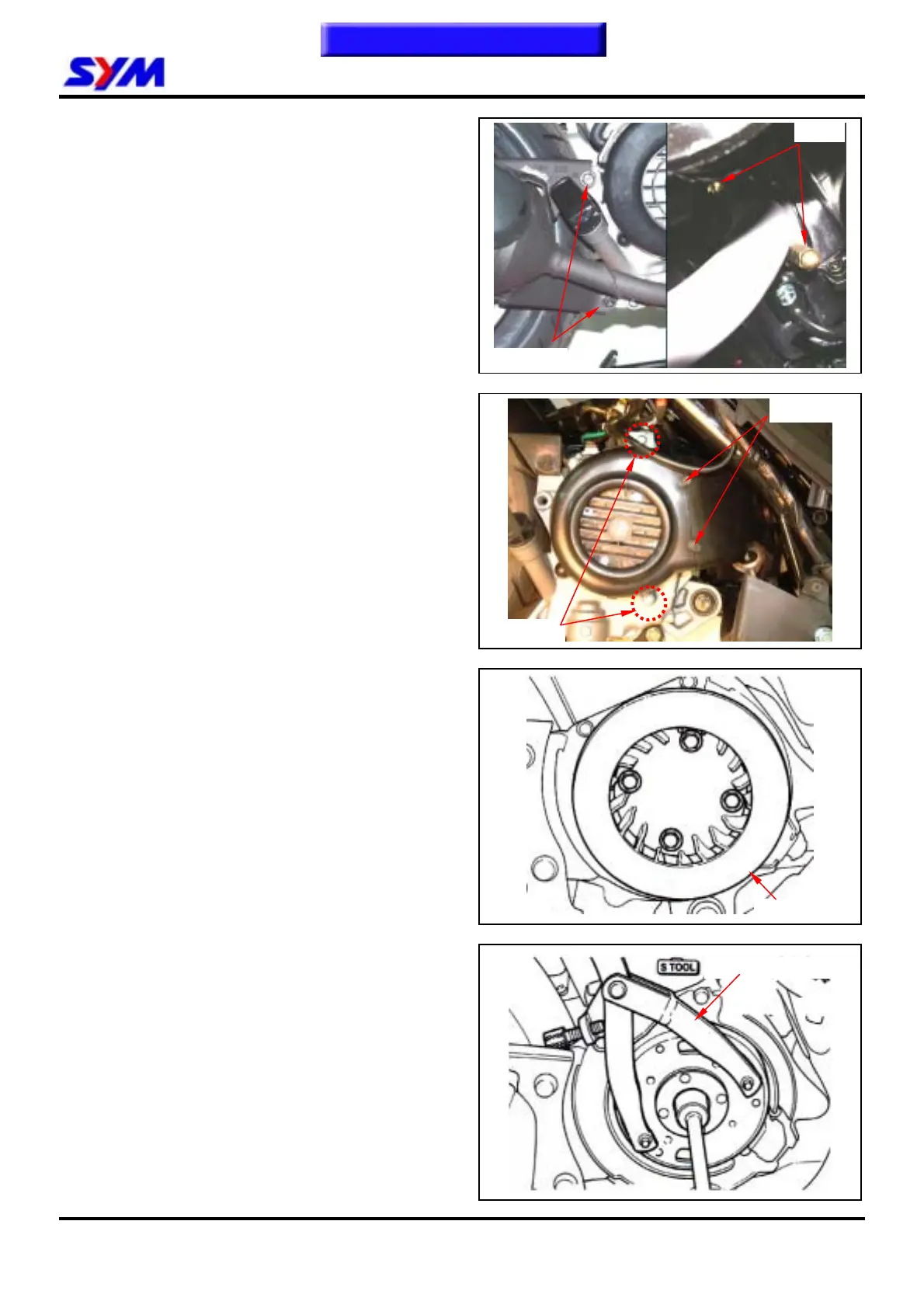

Alternator Removal
Drain out the engine oil.
Remove the right side cover.
Remove the exhaust pipe (2 bolts, 2 nuts).
Remove the fan shroud (2 screws, 2 bolts).
Remove the cooling fan (4 bolts).
Hold the flywheel with the universal fixture.
Remove the 10mm nut on the flywheel.
Special Service Tools:
Universal Fixture SYM-2210100
Universal fixture
Cooling fan
2 Nuts
2 Bolts
2 Bolts
2 Bolts
