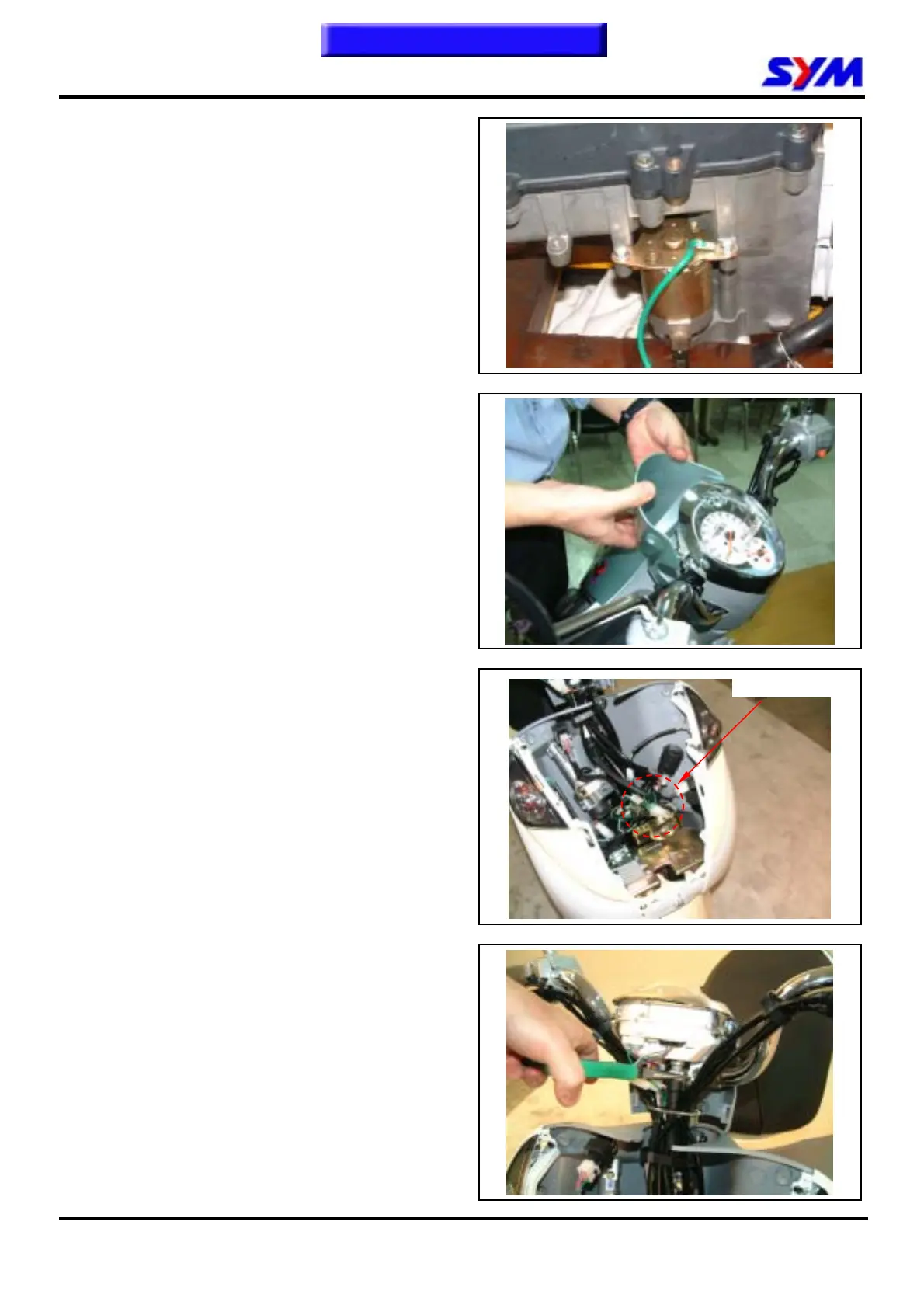

Start Motor Removal
Remove the right side cover. (1 screw)
Remove the air cleaner mounting bolts. (2 bolts)
Firstly, remove the battery negative (-) terminal,
and then remove the positive (+) terminal.
Remove the luggage box.
Remove the start motor power wire.
Remove the start motor mounting bolts and motor.
(2 bolts)
Starting Motor Installation
Install the motor in reverse order of removal.
Meter
Removal
Remove the handle front cover.
Remove front cover.
Remove the cable coupler of the meter.
Remove speedometer cable.
Meter coupler
