3. Lubrication System
3-7
Install driving gear and clamp.
Caution
z Make sure if the oil pump can be rotated
smoothly.

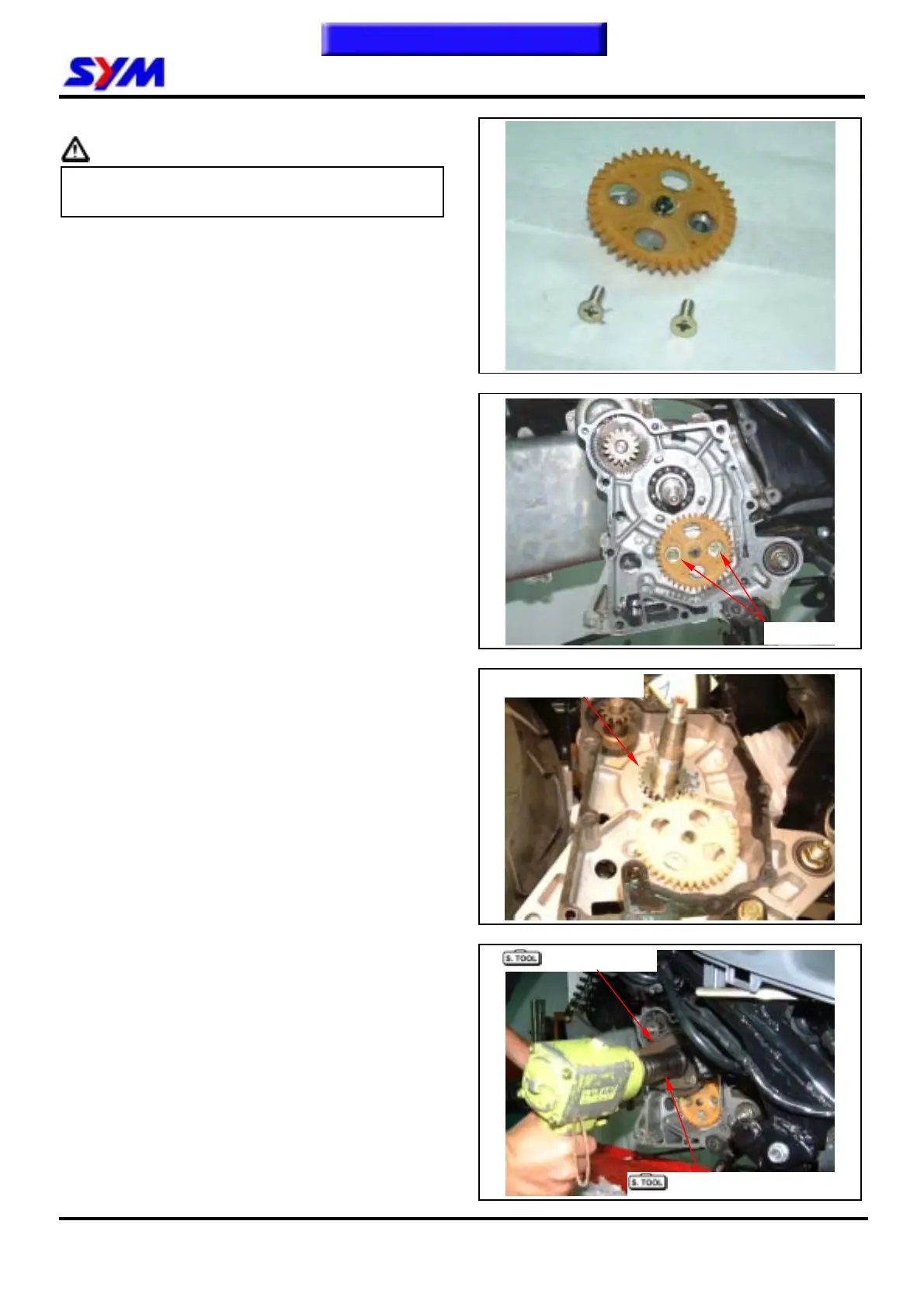

Oil Pump Installation
Install the oil pump (2 screws).
Install oil pump drive gear.
Install the one-way clutch and starting gear (1nut)
Install the engine right cover.
Install the alternator (refer to chapter 10).
Special Service Tools:
One way clutch socket SYM-9020100
Universal fixer SYM-2210100
Oil pump drive gear
2 screws
Universal fixer
One way clutch socket
