4. Fuel System
4-10

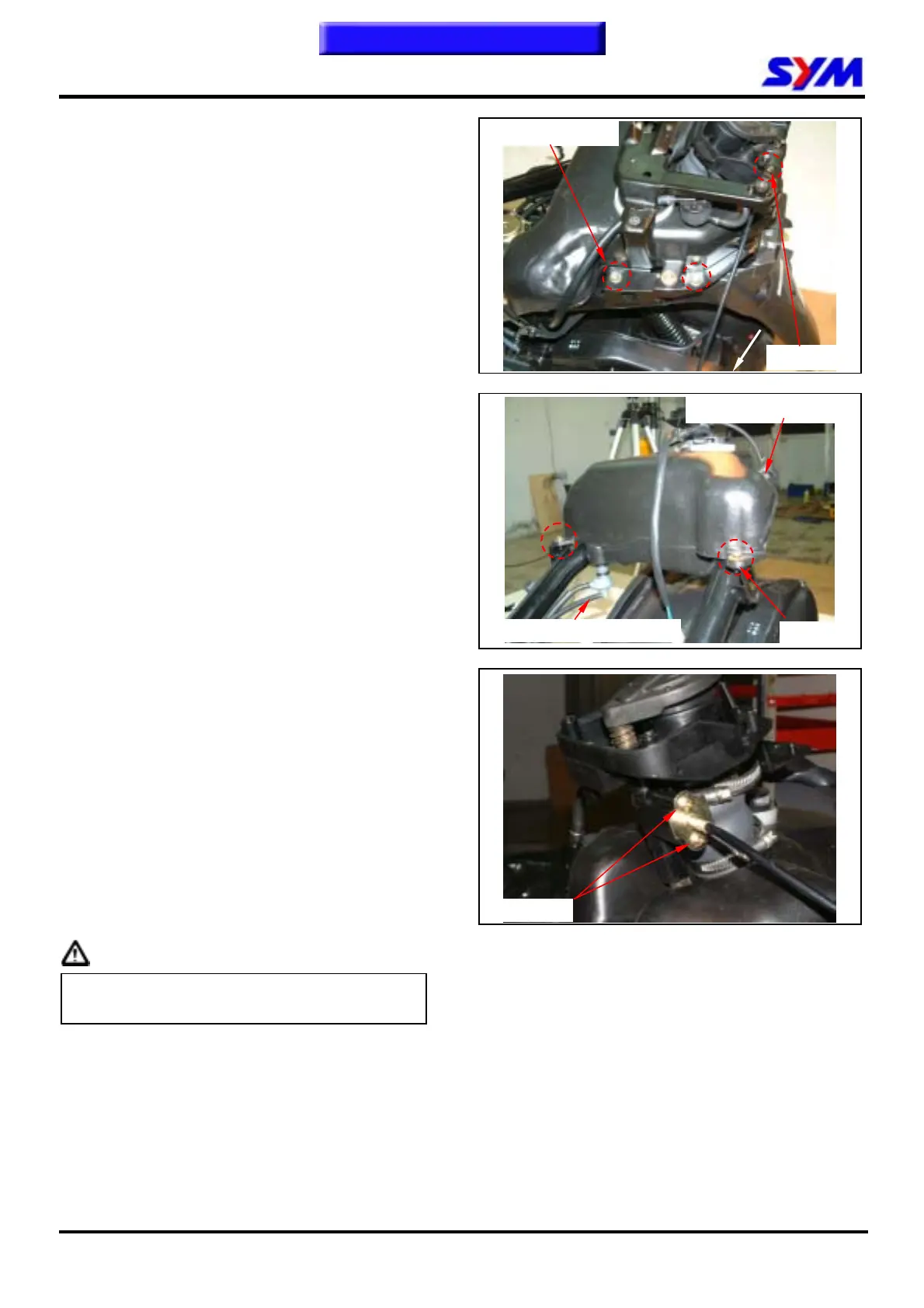

Fuel tank removal
Remove the left and right side covers.
Open seat.
Remove the luggage box.
Remove rear carrier.
Remove the left and right body covers.
Remove the pedal (please refer to chapter 12 for
these components above.)
Remove fuel unit coupler.
Remove the rear bracket (4 bolts & 3 screws)
Remove the fuel tank mounting bolts (4 bolts).
Remove the all lines from the fuel tank.
Remove fuel tank cap open cable (2 screws).
Remove the fuel tank.
Caution
z Replace the fuel tank immediately if it is
broken or leakage.
Fuel Tank Installation
Install the tank in the reverse order of removal.
Vacuum hose / Fuel hose
Fuel vapor separator
4 bolts
2 screws
Each side 2 bolts
3 screws
