Figure (2) Figure (3)

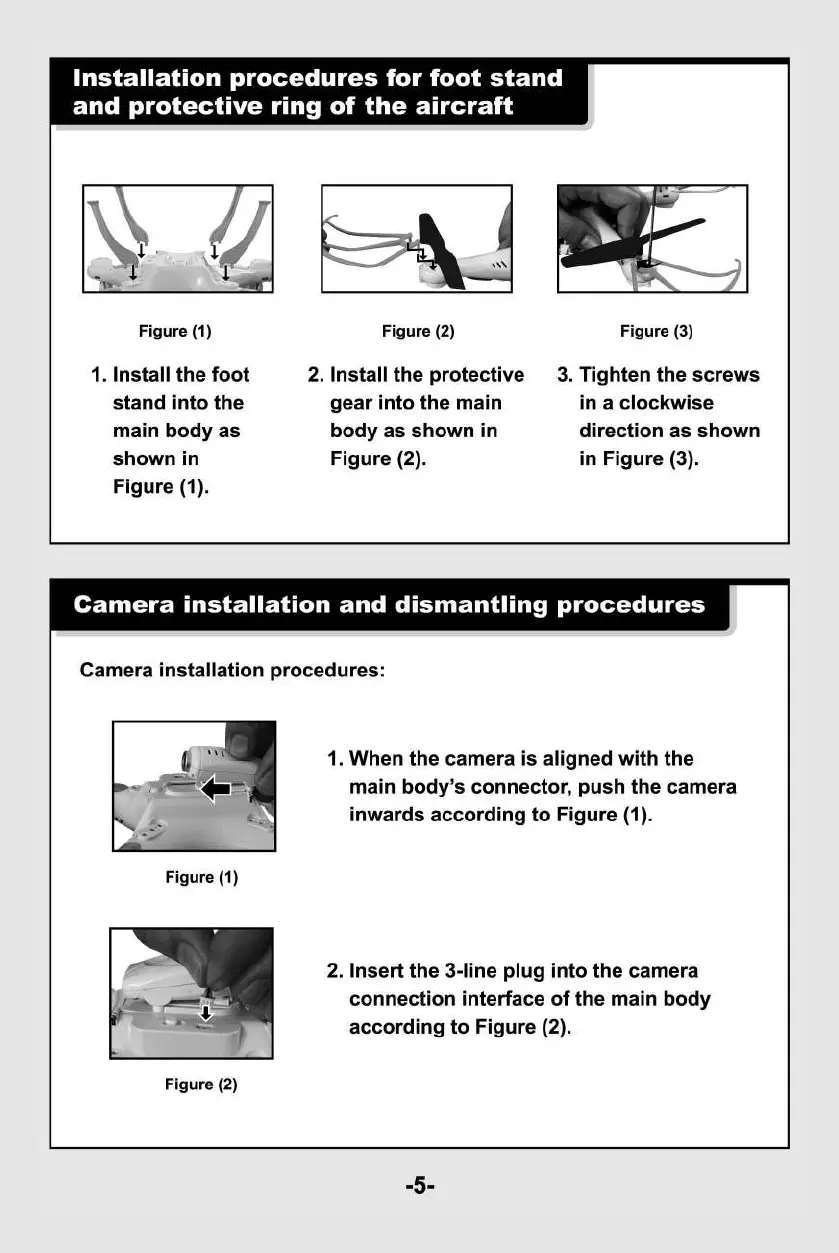

Installation procedures for foot stand
and protective ring of the aircraft
Figure (1)
1. Install the foot
stand into the
main body as
shown in
Figure (1).
2. Install the protective
gear into the main
body as shown in
Figure (2).
3.
Tighten the screws
in a clockwise
direction as shown
in Figure (3).
Camera installation and dismantling procedures
Camera installation procedures:
1.
When the camera is aligned with the
main body's connector, push the camera
inwards according to Figure (1).
2.
Insert the 3-line plug into the camera
connection interface of the main body
according to Figure (2).
Figure (1)
Figure (2)
-5-
