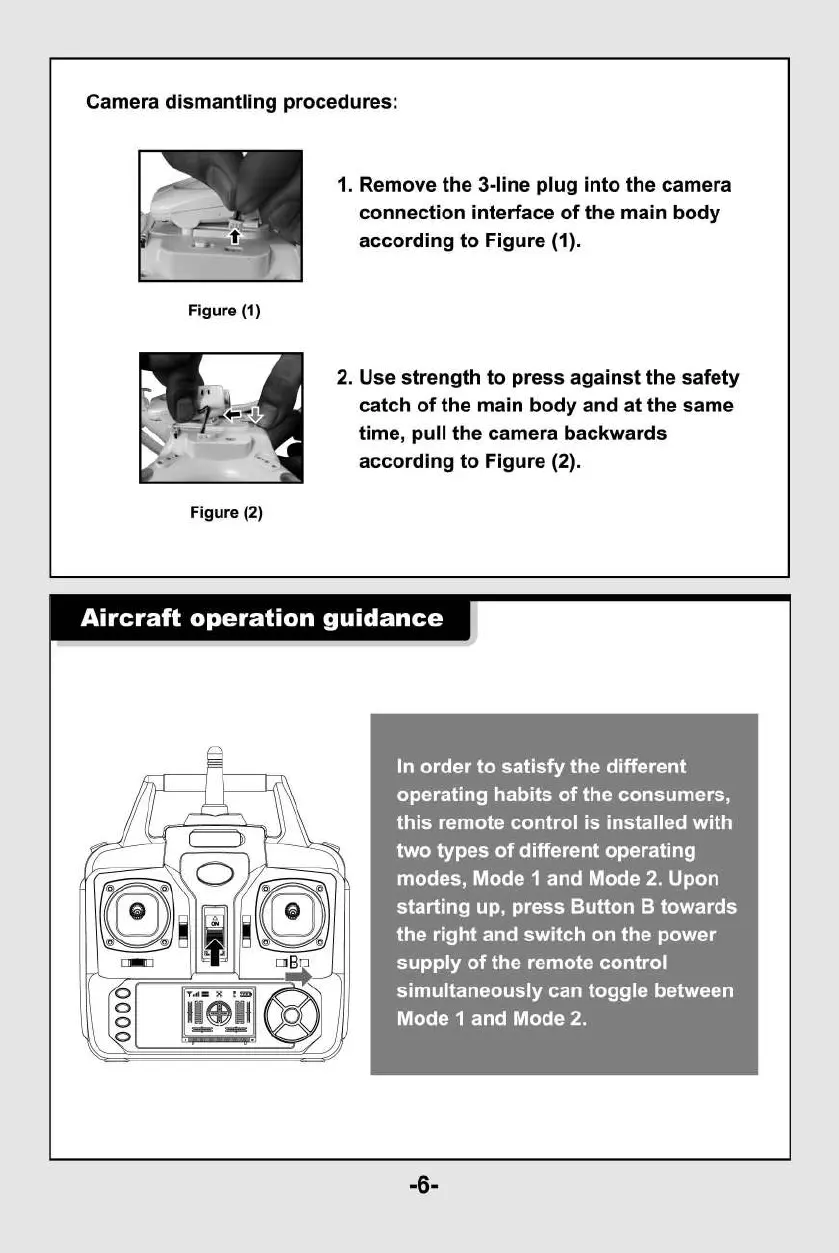

Camera dismantling procedures:
1.
Remove the 3-line plug into the camera
connection interface of the main body
according to Figure (1).
2.
Use strength to press against the safety
catch of the main body and at the same
time, pull the camera backwards
according to Figure (2).
Figure (1)
Figure (2)
Aircraft operation guidance
In order to satisfy the different
operating habits of the consumers,
this remote control is installed with
two types of different operating
modes, Mode 1 and Mode 2. Upon
starting up, press Button B towards
the right and switch on the power
supply of the remote control
simultaneously can toggle between
Mode 1 and Mode 2.
-6-
