Symmons 3DIVBODYSRT - Parts Breakdown and Tools Required; Replacement Parts; Tools Required

2

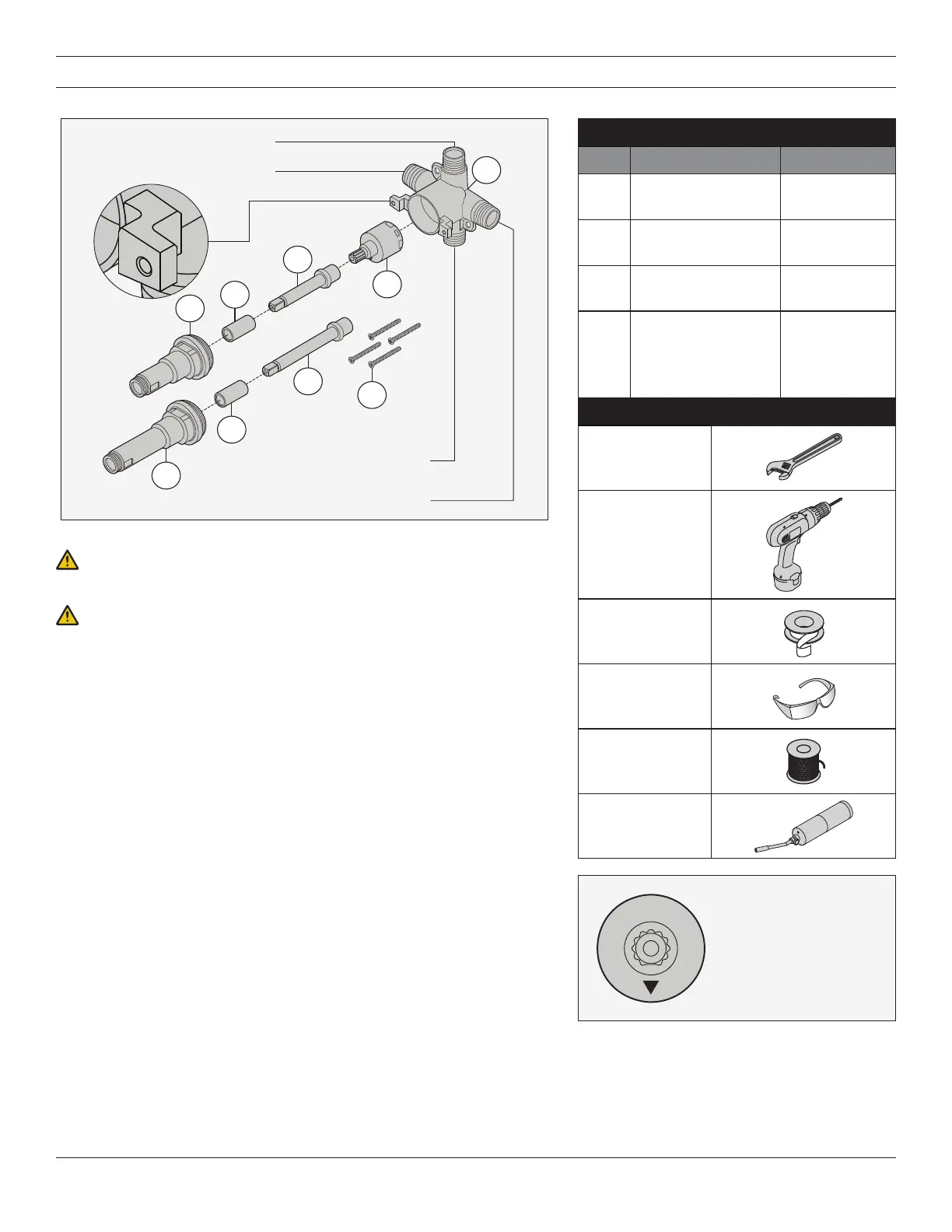

Parts Breakdown
Tools Required
Adjustable
Wrench
Drill (optional)
Plumber Tape
Safety Glasses
Solder
Torch
Replacement Parts
Item Description Part Number
A Cap Assembly
RTS-DIVCAP-
SRT
C Cartridge Extender
RTS-DIVEXT-
SRT
D
F
Cartridge
Retaining Sleeve
RTS-3DIV
B
G
H
I
Spacer
1" Cap Extender
1" Cartridge Extender
4" Mounting Screws
RTS-DIV-1EXT
E
FROM SHOWER VALVE
DIVERTER FUNCTION 1
DIVERTER FUNCTION 2
DIVERTER FUNCTION 3
C
D
A
B
G
H
B
I
Important:
Cartridge (D)
must be installed
with arrow
facing down.
Important: Do not plug outlet ports. Do not use diverter as shut
off valve.
Note: Diverter valve can be installed in wall with shower valve or in
an adjoining wall to shower valve.
Important: Do not expose diverter valve to heat for longer than 2
minutes when sweating in copper tubing. Doing so may damage
the internal components of the valve and will void the product
warranty.
