Symmons 3DIVBODYSRT - Installation Guide; Step-by-step Installation; Optional Fittings; Diverter Operation

3

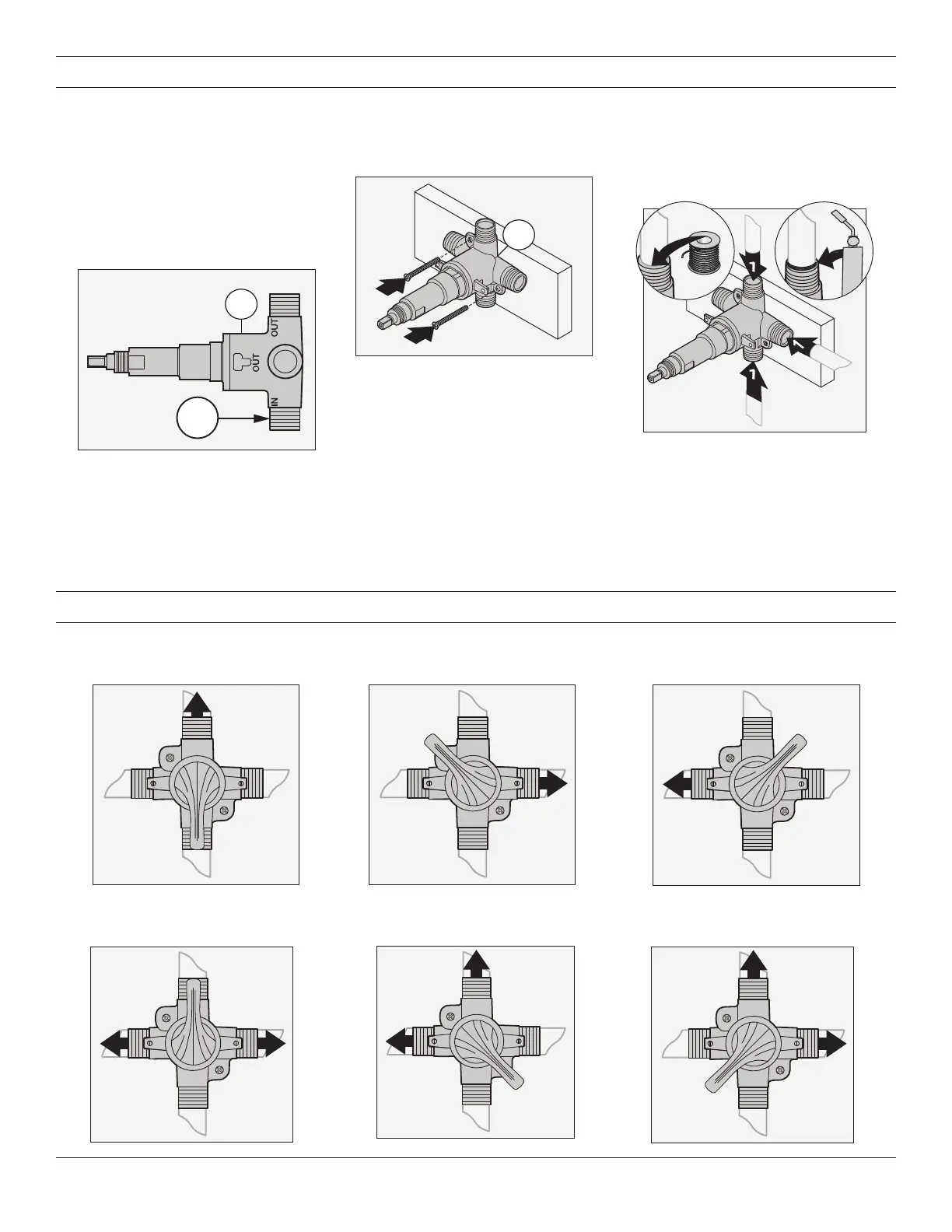

Installation
1) Reference rough-in dimension for
shower application with diverter
for proper installation of diverter
valve.
5) Sweat 1/2" copper tubing from
inlet port on diverter valve
to water source. Sweat 1/2"
copper tubing from outlet ports
to desired accessories.
2) Shut-off water supplies.
4) Secure stringer mounts on diverter
valve (E) to wood blocking for
support.
E
!
E
3) Position diverter valve (E) so port
marked IN is facing down.
3
2
Optional: Apply plumber tape to
male IPS threads on the inlet and
outlet ports of diverter valve. Install
1/2"-14 NPT copper ttings to the
inlet and outlet ports. Connect
outlets to desired accessories.
Note: Securing stringer mounts is
necessary for applications where
PEX, or other non rigid tubing, is
used to install diverter valve.
Operation
1
POSITION 1
1) Cartridge is factory set to divert
to function 1.
POSITION 2
2
2) Turn handle to position 2 to divert
to function 2.
POSITION 3
3
3) Turn handle to position 3 to divert
to function 3.
POSITION 4
2
3
4) Turn handle to position 4 to share
functions 2 and 3.
POSITION 5
3
1
5) Turn handle to position 5 to share
functions 1 and 3.
POSITION 6
2
1
6) Turn handle to position 6 to share
functions 1 and 2.
6) Turn on water supplies to ush
plumbing lines free of debris .
Check for leaks.
