Symphonic SC724FDF - Page 57

1-11-15
T2127SCD3

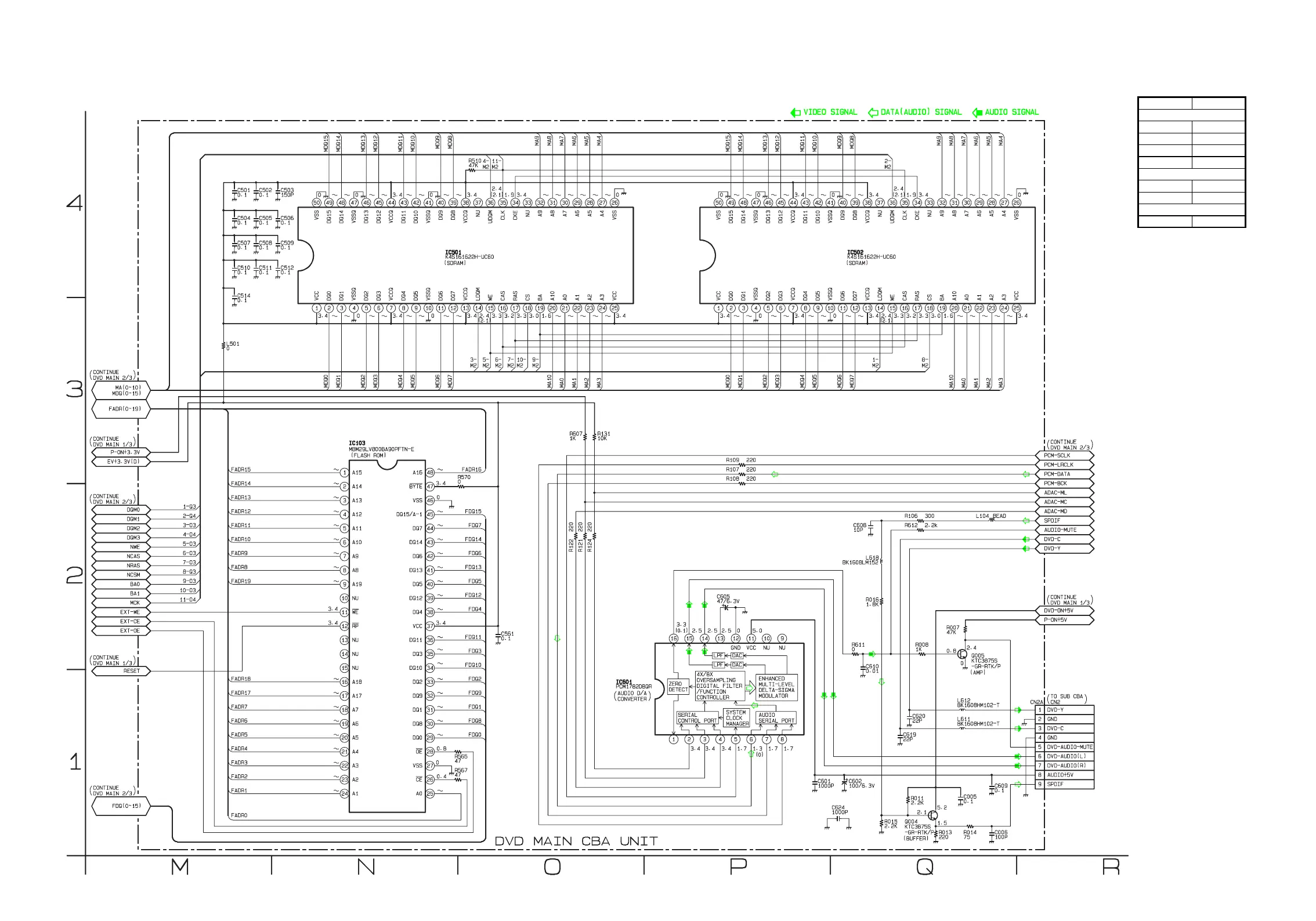

DVD Main 3/3 Schematic Diagram < DVD Section >
DVD MAIN 3/3
Ref No. Position
IC103 N-3
IC501 N-4
IC502 Q-4
IC601 O-1
Q004 Q-1
Q005 Q-2
CN2A R-1
ICS
CONNECTOR
TRANSISTORS
