Symphonic SC724FDF - Page 60

1-11-18
R2583
(H f
0
Adjustment)
H SIZE
VR2531
PIN C.
VR2530

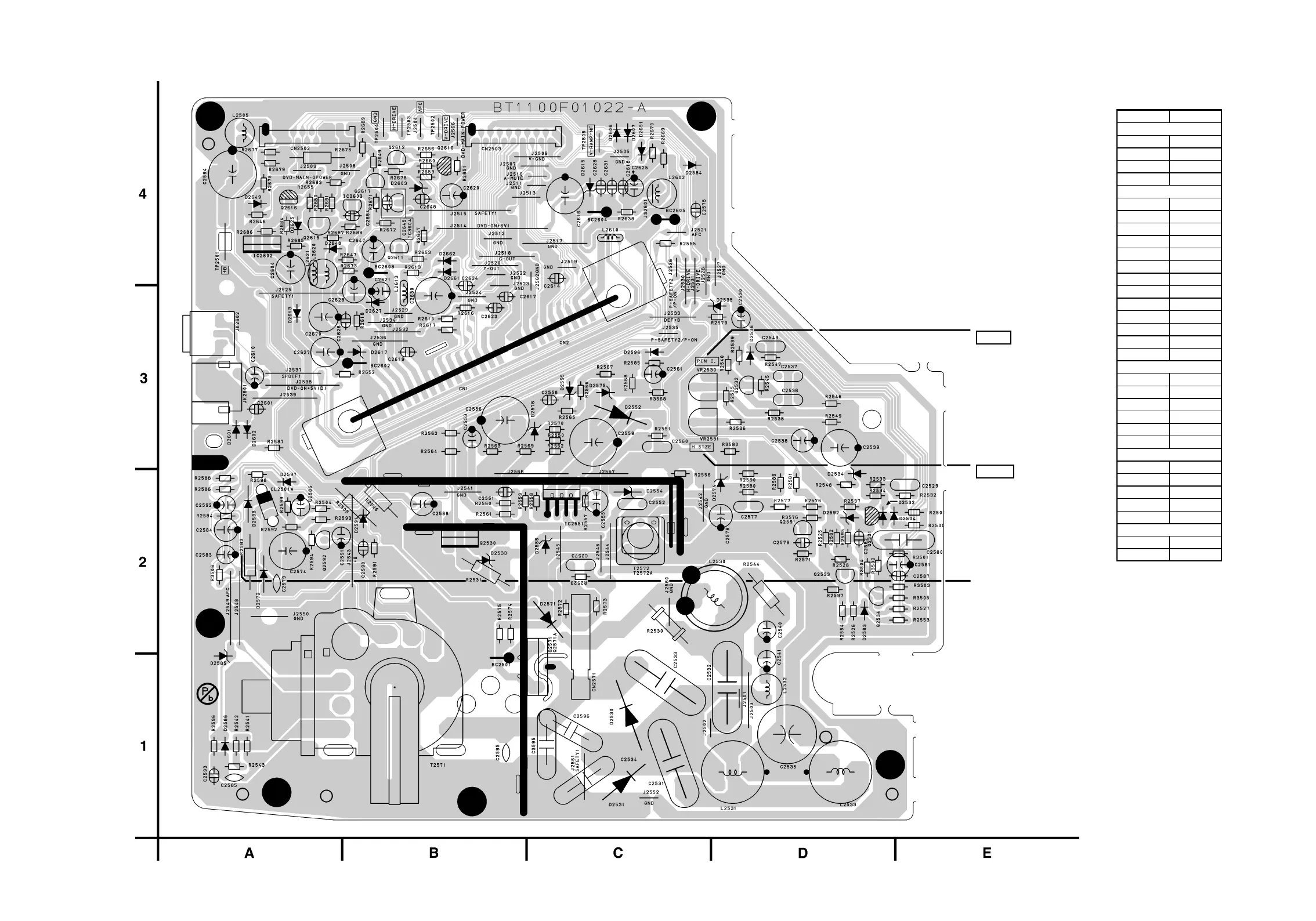

Sub CBA Top View < TV/VCR Section >
BT1100F01022-A
SUB CBA
Ref No. Position
IC2551 C-2
IC2602 A-4
IC3603 B-4
IC3604 B-4
Q2530 B-2
Q2531 D-2
Q2532 D-3
Q2533 D-2
Q2571 C-2
Q2591 D-2
Q2592 A-2
Q2610
B-4
Q2611
B-4
Q2612
B-4
Q2615 A-4
Q2616 A-4
Q2617 B-4
CL2501A A-2
CN2502 A-4
CN2503 B-4
CN2571 C-1
CN1 B-3
CN2 C-3
TP2501
A-4
TP2502
B-4
TP2503
B-4
TP2504
B-4
TP2505
C-4
VR2530 C-3
VR2531 C-3
ICS
CONNECTORS
TEST POINTS
TRANSISTORS
VARIABLE RESISTORS
