SYNAPTICON SOMANET Node 400 Hardware Manual

1.4.1.2 Power supply, phases and brake

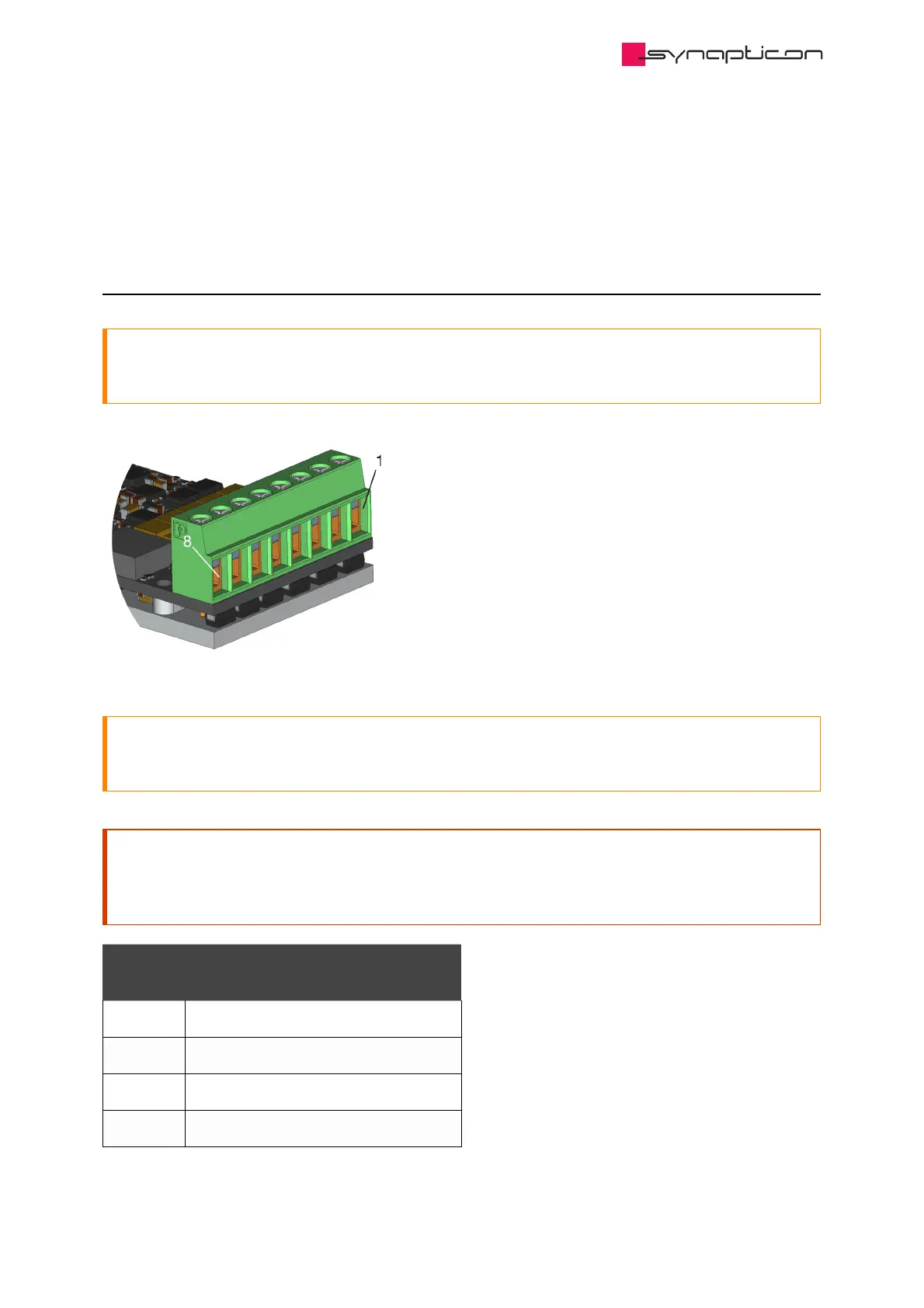

1.4.1.2.1 Pinout Power Terminal
Important
The cable length for Main Power Supply (12-48 V) must not exceed 30 m.
Important
The motor and power cables must be twisted for EMC reasons.
Attention
No reverse polarity protection! Always ensure that the power cables are connected correctly,
otherwise the Drive may be damaged beyond repair!
Terminal
#
1 Phase A
2 Phase B
3 Phase C
4 Phase D - Brake output 0-48 V PWM
Hardware Manuals / SOMANET Node / SOMANET Node rev. E.1
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.10.2 | Built 2021-07-06 16/67
