SYNAPTICON SOMANET Node 400 Hardware Manual

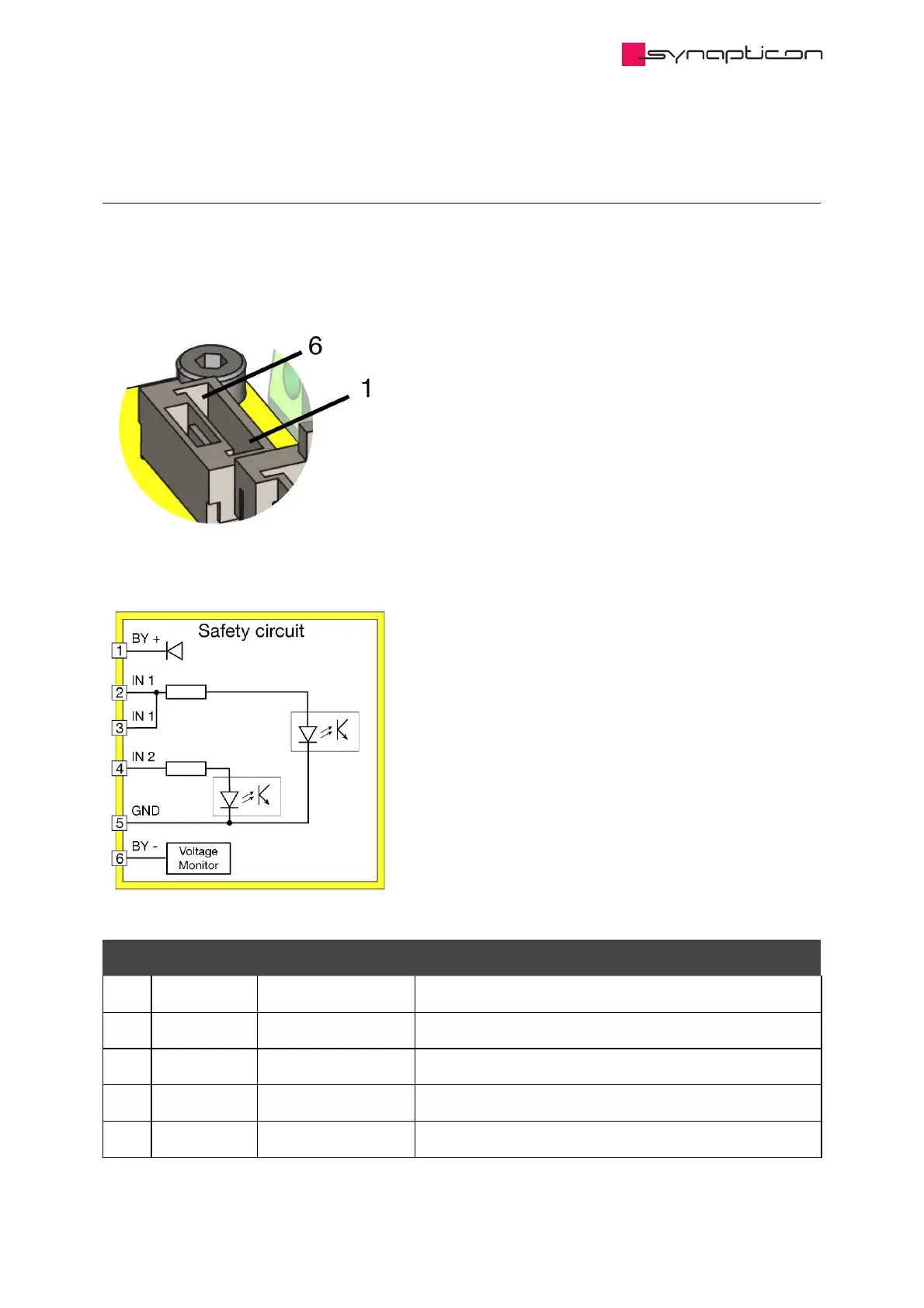

1.6.3.1 Connecting the STO/SBC inputs
1.6.3.1.1 STO/SBC input port
Pin# Designation Function Description
1 BY+ Bypass+ Connect to BY- (Pin 6) to bypass STO/SBC
2 IN1 STO/SBC input 1 Input 1 for STO/SBC
3 IN1 STO/SBC input 1 Extra Pin for Input 1
4 IN2 STO/SBC input 2 Input 2 for STO/SBC
5 GND Safety GND Must be isolated from main Ground
Hardware Manuals / SOMANET Node / SOMANET Node rev. E.1
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.10.2 | Built 2021-07-06 50/67
