机床产品/Machine Tool Products – 60CA/60CB Simple-Type Wood Cutting Machine Operation Manual
How to Operate 60 Series Controller– 119
•
•
•
a.
b.
c.
d.
•
•
•
a.
b.
•
•
•
•
•
•
•
•
•
•
•
•
i.
ii.
iii.
iv.
v.
•
•
Condition
Only for single block( MDI) and auto mode
Operation
Press "MPG Shift – Enable" in "MDI" or "auto" mode
MPG shift widow will be displayed
Switch to MPG axis assign
Rotate the MPG and the value will be shown in the MPG shift window
Confirmation
Switch to coordinate system screen and make sure the value in MPG shift column is correct.
Related Parameters
Pr.3201 set lathe, MPG shift function can't be enabled when the parameter is not 0
When the path of axes Pr.701~716 has axes belonging to different path, the MPG shift function
can't be enabled.
Notifications
Other enabling method
Besides enabling with the MDI button, the MPG shift window can also be called by the
rising-edge trigger which makes R606.0 changes to 1 from 0 in "MDI" or "Auto" mode.
Only accepts MPG command, JOG and INJOG commands are invalid

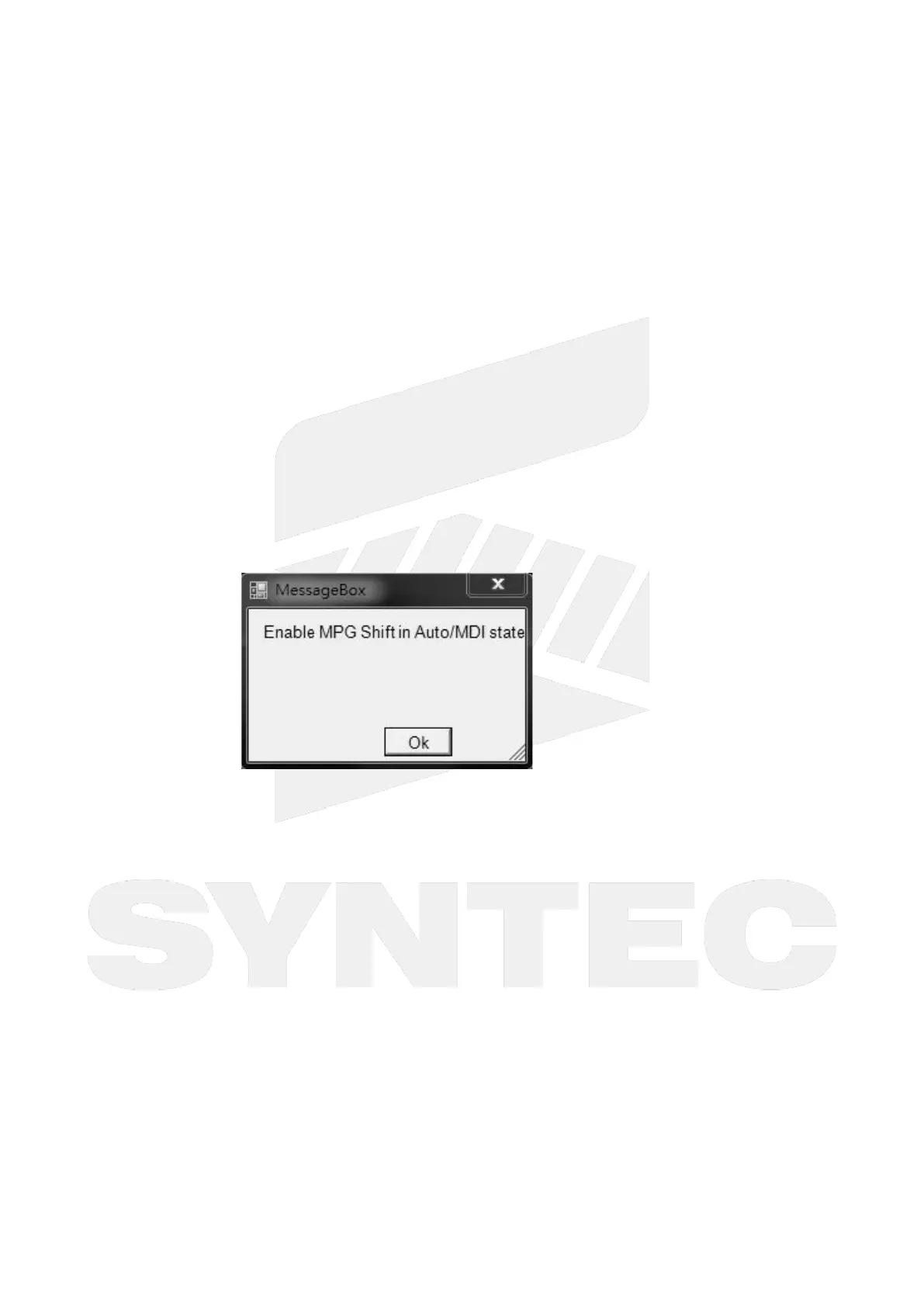

Press "MPG Shift – Enable" in non-"MDI" or non-""Auto" mode"
The reminder window will pop up
Close the MPG shift window：
Press ESC when the window is displayed
When R606.0 turns to 0 from 1
Being switched to other modes except for "MDI" or "Auto" mode.
Able to be operated when the machine is locked
Dismiss timing
Save the MPG shift coordinate when power-on
Skip clear after changing the coordinate (G54/G55)
Skip clear while changing the machining process
Skip clear after home searching
Skip clear after G28/G29/G30 return to reference point actions
Limitation
When MPG shift function is enabled under MPG simulation, the commands will be sent to MPG
shift function when rotating the MPG. After the MPG shift function is done, the commands will
then be sent to MPG simulation function.
