SYNTHES 17
DHS/DCS Standard System

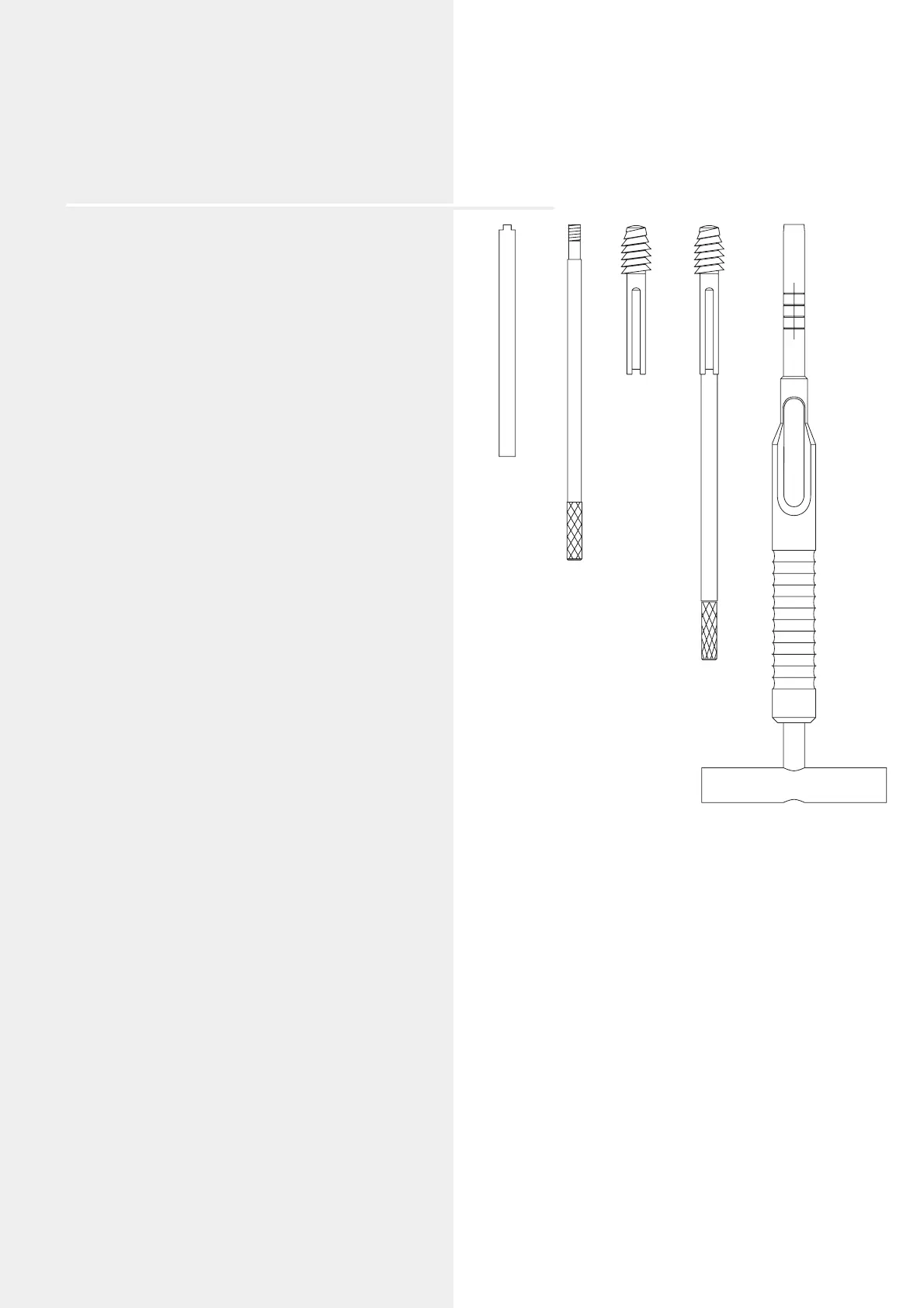

Assembling the insertion instruments
338.060
338.190
338.210
338.200
Insert the short Connecting Screw (338.200) in the Guide
Shaft (338.210) and screw into the inner thread of the
DHS/DCS screw. The cam and slot must interlock correctly
and firmly.
Slide the long Centering Sleeve (338.190) over the DHS/DCS
Wrench (338.060). Insert the whole assembly into the
DHS/DCS wrench.
