8. Rotary Knives(Optional)

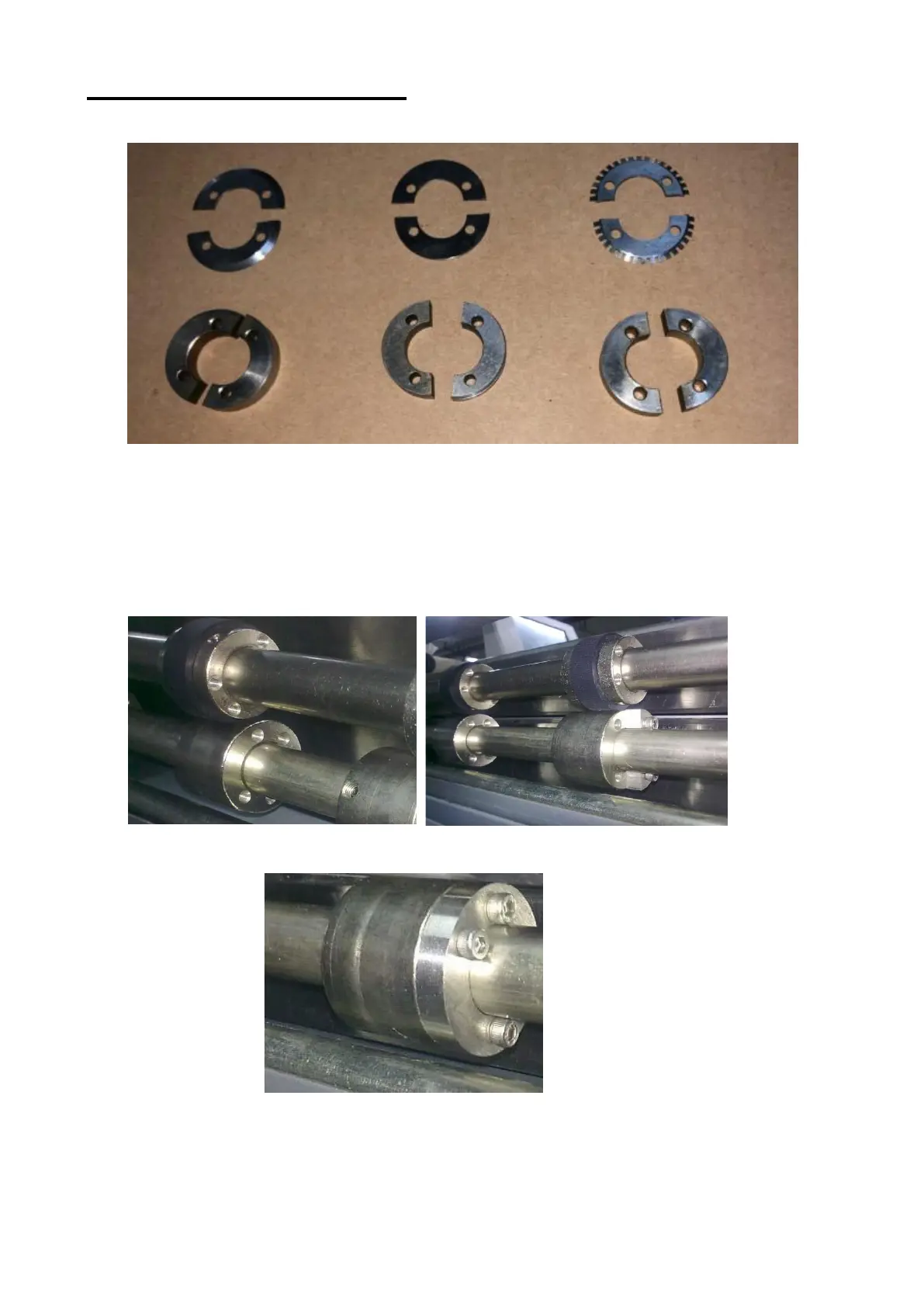

There are 3 types of rotary knife.
Slitter Scorer Perforator
8.1 Loosen the grub screws in the lower roller using Allen key 2.0, stagger it
away from the upper rubber roller.
8.2 Install one of the lower die to the lower roller with 2 M3*10 screws using
Allen key 2.5, mind the 4 threaded holes position. Do not set it too tightly.
8.3 Install the both lower dies then tighten them.
8.4 Install the upper knives to the upper roller one by one like the lower dies with
M3*6 screws.
8.5 Move the upper and lower rollers to make the upper knife and the lower die
To Next Page
