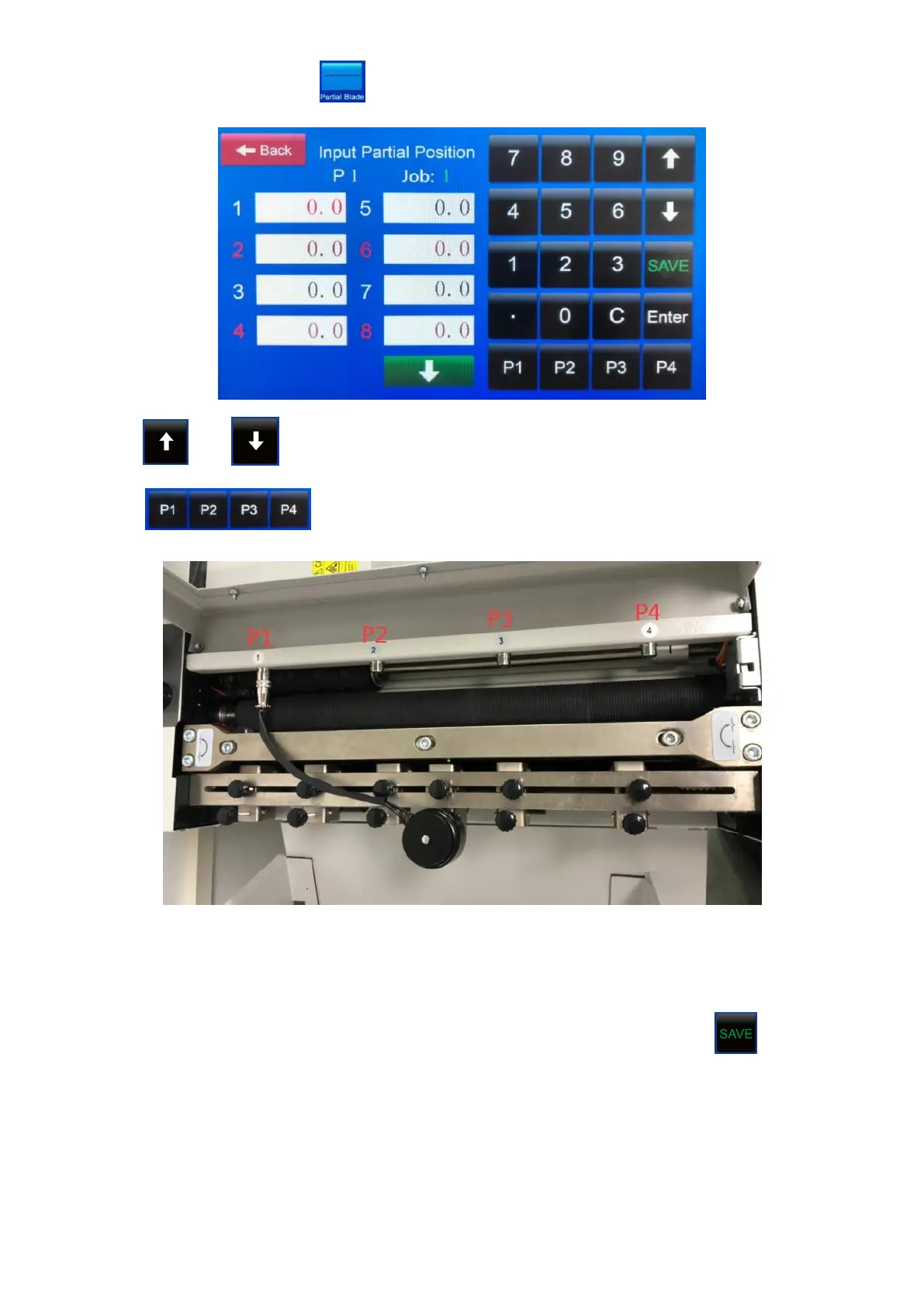

8.5. Partial blade: Press to get into the partial blade setting interface.
press or to choose the job No.. There are 4 job memories available.
Press to choose the partial blade port.
Tip on the blank box then enter the partial position from the keypad. The
measurement is from the start position to the end position in feeding direction.
32 position data can be set for each port in one pass once. Press to set
the whole job data into memory.
