4-4 System Menu Details
4
4-4-11 Safety Monitor
Displays a list of values of variables. In the initial state, only outputs are displayed. Selecting an output
displays its related inputs.

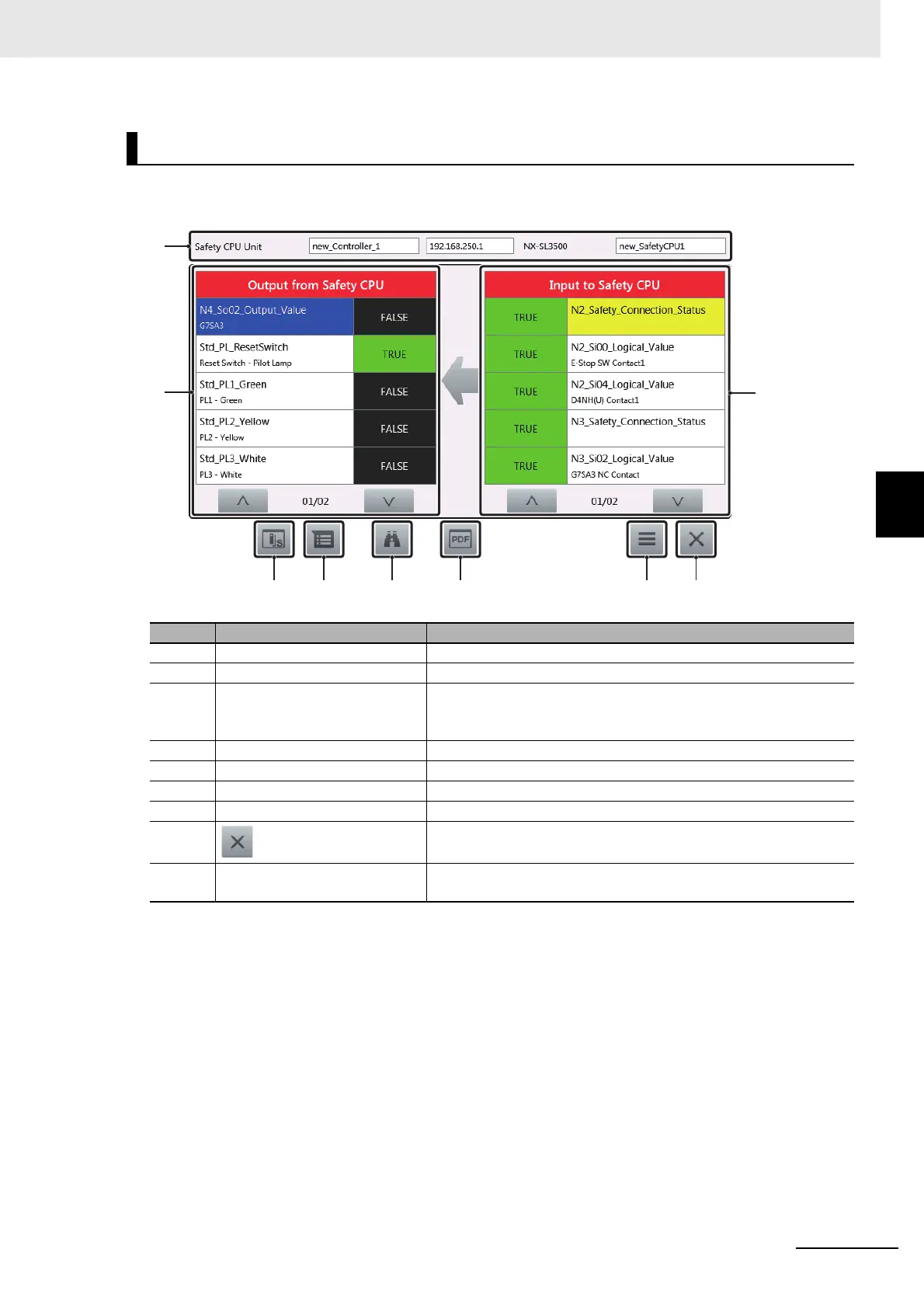

I/O Matrix Monitor
No. Item Description
1 Applicable equipment Displays the safety CPU unit currently being monitored.
2 Output from Safety CPU Displays a list of outputs and shows values.
3 Safety I/O monitor Displays information on the safety I/O unit to which the selected
variable is assigned. Displays the safety output unit monitor or
safety input unit monitor according to the safety I/O unit assigned.
4 Variable Information Displays detailed information on the selected variable.
5 Search Searches for a variable.
6 PDF display Displays files set in PDF Display Settings.
7 Menu Accesses various functions.
8 Exits the Safety Monitor.
9 Input to Safety CPU Displays a list of inputs related to the selected output and shows
the value.
