A-1 Dimensions
 NA Units
 Cable Connection Dimensions
A-1-1 NA Units

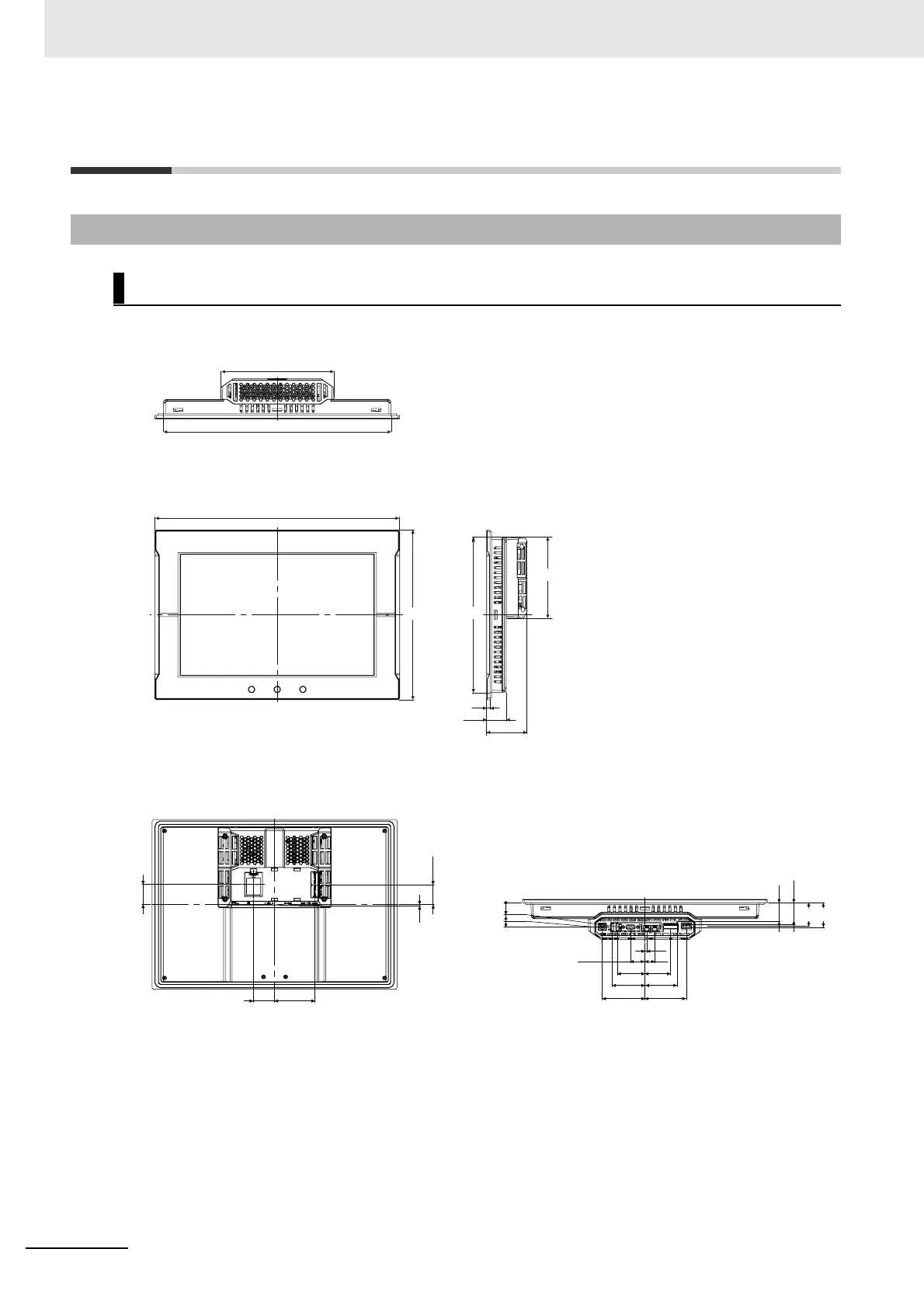

NA5-15W
194.2
420
391
6
33.5
69.1
291
139.1
267
(Unit: mm)
32.6
55
24.8
47.3
55.7
39.6 42.1
3
17
44
71 73
0
41.6
42
41.2
2.3
33.9
34.4
36 69.3
37
(Unit: mm)
