2-4-1 Connection Methods
2-4 Support Software
This Sysmac Studio is used to create, debug, and maintain applications for NA-series Programmable
Ter m inal s .
With an NA-series Programmable Terminal, you can connect the Sysmac Studio online in the following
ways.
Use a commercially available USB cable for a USB connection.
You do not need to specify the connected device on the Sysmac Studio.
2-4-1 Connection Methods

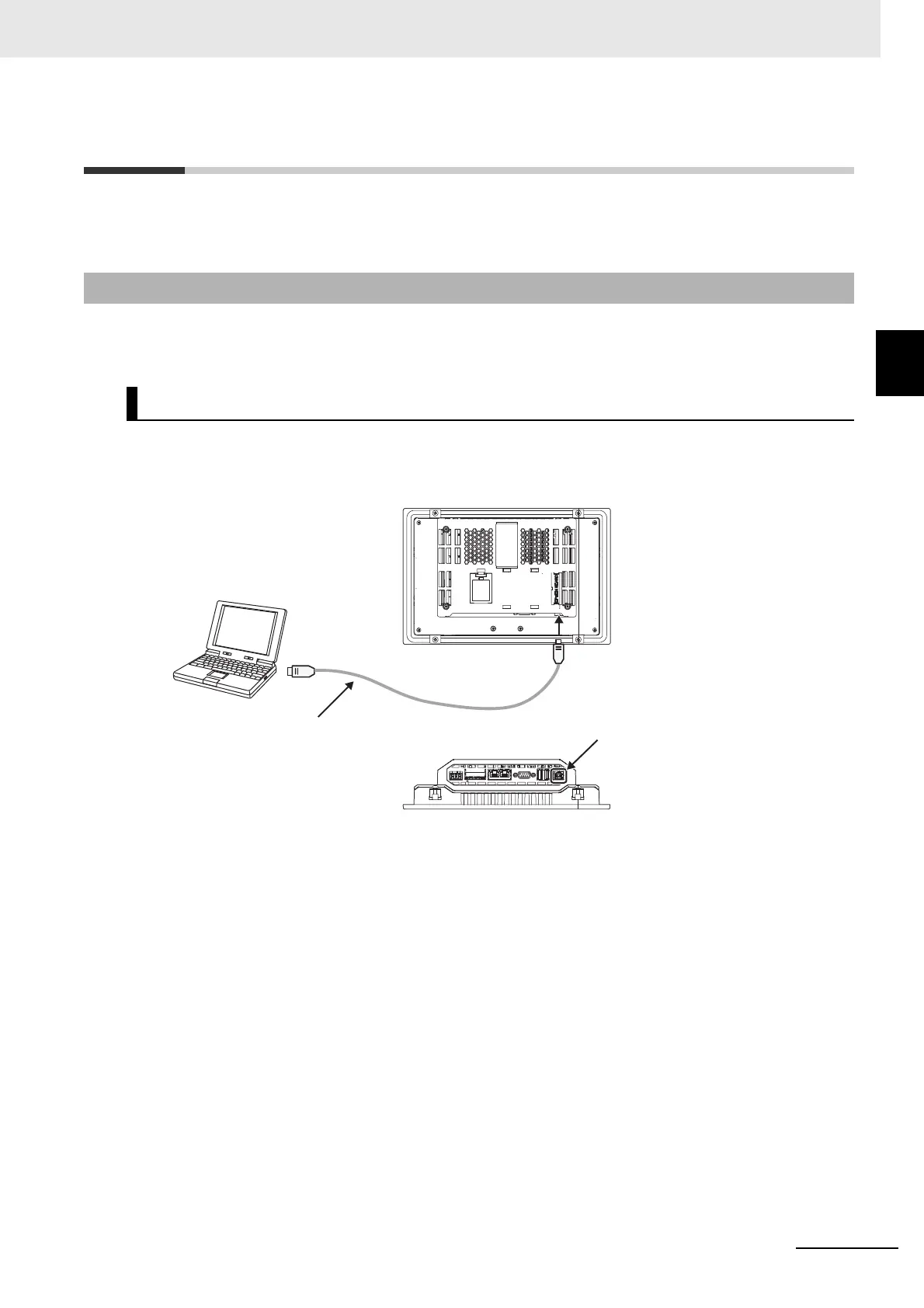

Connecting with USB
Back Panel of
NA Unit
Sysmac Studio
Commercially available
USB cable
USB slave port
Bottom Panel
of NA Unit
