4 System Program
4 - 42
NA-series Programmable Terminal Hardware User’s Manual (V117)

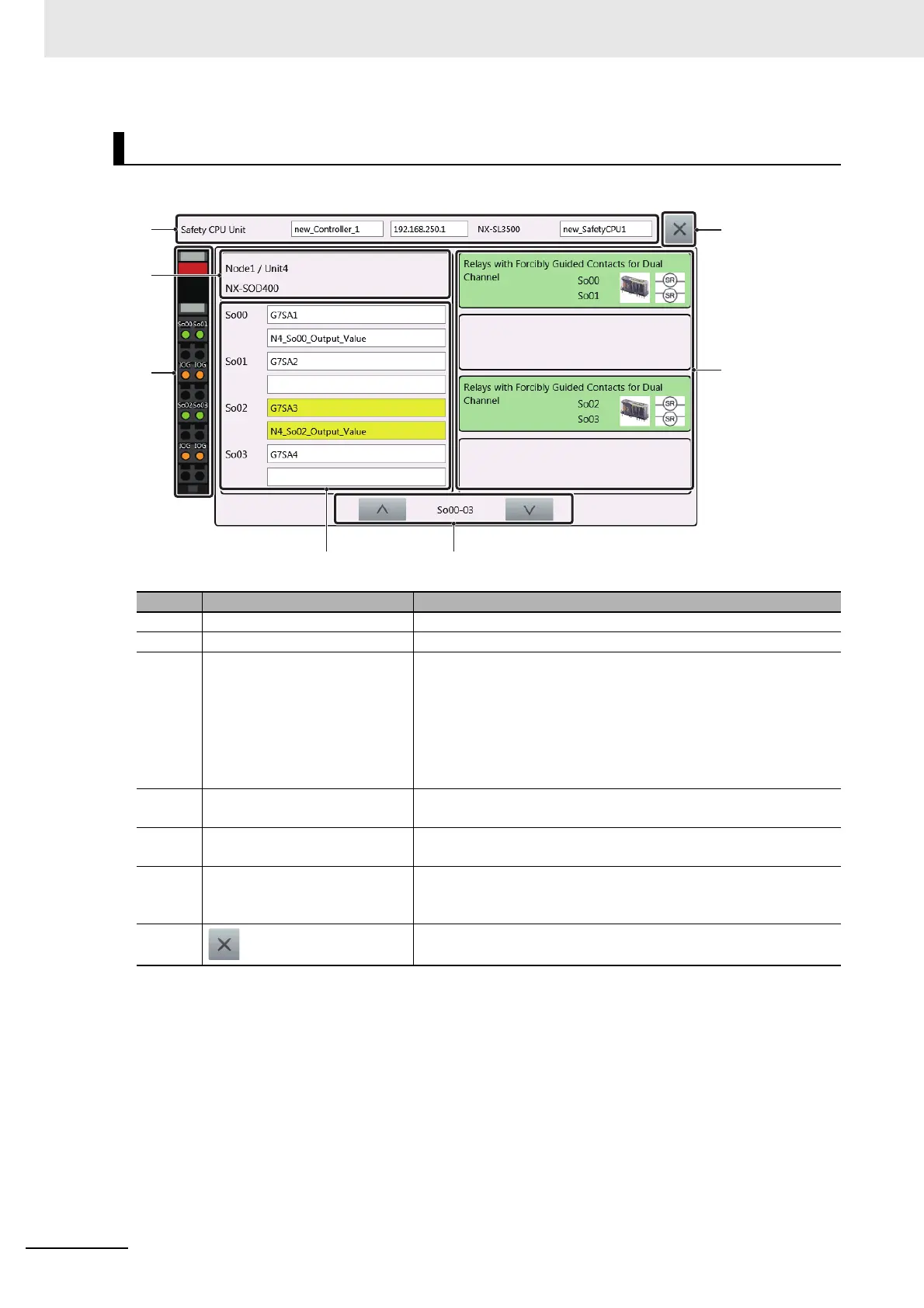

Displays the status of the safety output unit.
Safety output unit monitor
No. Item Description
1 Applicable equipment Displays the CPU unit currently being monitored.
2 Unit information Displays information on the currently displayed safety output unit.
3 Terminal section monitor Displays the output state of the terminal.
Green: ON
Gray: OFF
Red: Error
Orange: IOG terminal being used
Black: Unused
4 Variable Information Displays the name of the variables assigned to the terminal as well
as any comments.
5 Change display items Changes the items to display when there are four or more display
items.
6 External equipment setting
information
Displays information on the equipment connected to the terminal.
Displays the name of the equipment, terminal numbers connected,
as well as corresponding icons.
7 Closes the safety output unit monitor.
