Power is supplied via a 2-pole Phoenix socket of type DFK-PC /2-
GF-7,62. The corresponding plug carries the designation Phoenix Con-
tact PC 4/ 2-ST-7,62.

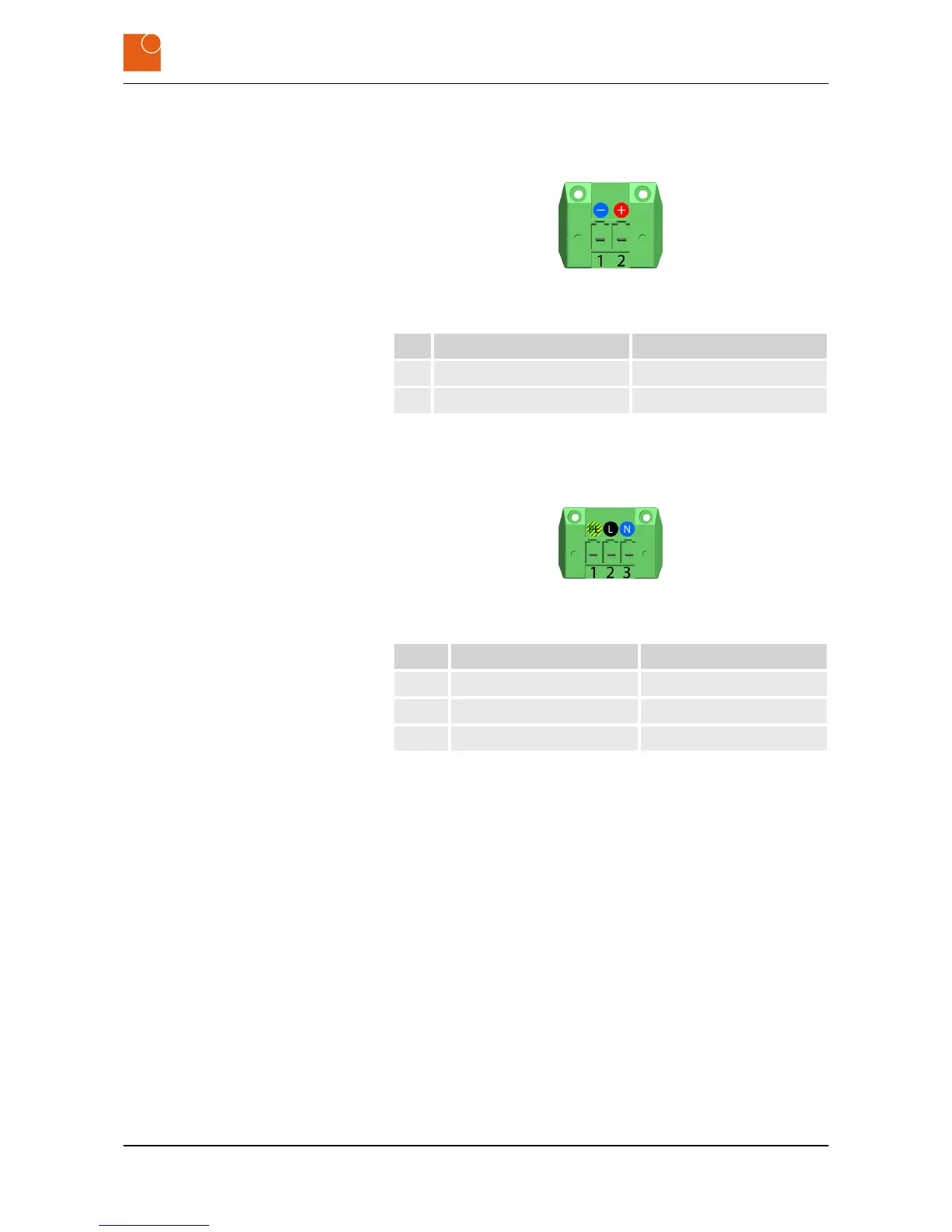

Fig. 16: 2-pole Phoenix Contact socket for the power supply
Pin Designation Significance
1
-
Ground (GND) 0V
2 + Power supply +
Power is supplied via a 3-pole Phoenix socket of type DFK-PC /3-
GF-7,62. The corresponding plug carries the designation Phoenix Con-
tact PC 4/ 3-ST-7,62.
Fig. 17: 3-pole Phoenix Contact socket for the power supply
Pin Designation Significance
1 PE Surge protectors
2 L Phase
3 N Neutral conductor
Power supply in the extra low voltage
range (12‑24V DC)
Power supply in the low-voltage
range (100 – 240 V AC, 50 – 60 Hz)
Product description
External connectors > Description of the external connections
WAVE 224 monitor/thin client - Industrial monitor/thin client
19
