๎˜ƒ
Bilag๎˜ƒ8โ€”3๎˜ƒ
๎˜ƒ
the๎˜ƒrails๎˜ƒand๎˜ƒinto๎˜ƒthe๎˜ƒunit.๎˜ƒMount๎˜ƒthe๎˜ƒrails๎˜ƒA1๎˜ƒand๎˜ƒB2๎˜ƒon๎˜ƒthe๎˜ƒfront๎˜ƒside๎˜ƒ(the๎˜ƒside๎˜ƒwith๎˜ƒthe๎˜ƒinspection๎˜ƒdoors)๎˜ƒโ€“๎˜ƒ

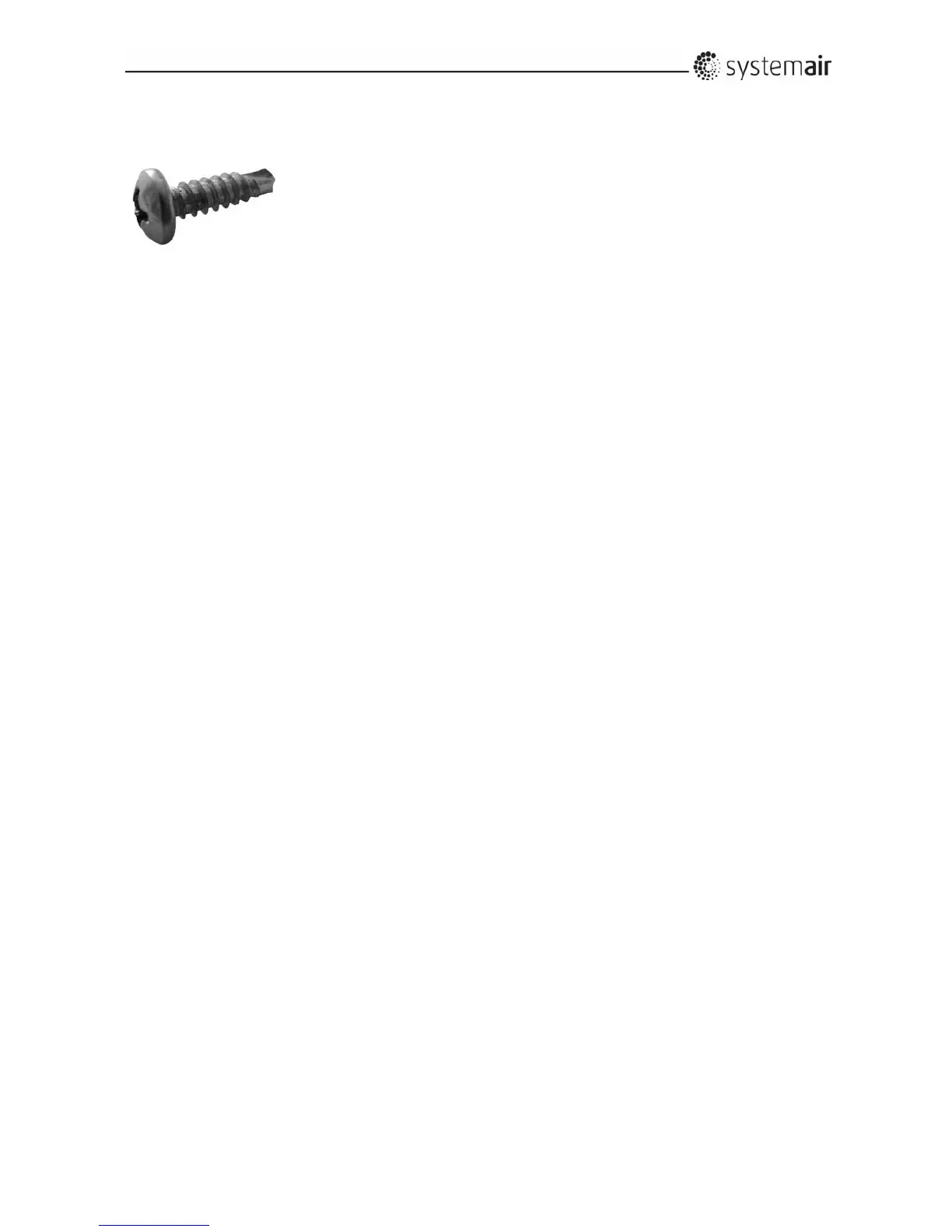

use๎˜ƒthe๎˜ƒsimple๎˜ƒself๎˜ƒdrilling๎˜ƒscrews๎˜ƒwithout๎˜ƒthe๎˜ƒsealing๎˜ƒwasher๎˜ƒโ€“๎˜ƒsee๎˜ƒthe๎˜ƒillustration๎˜ƒof๎˜ƒthe๎˜ƒscrew๎˜ƒbelow.๎˜ƒ
๎˜ƒ
๎˜ƒ
Note:๎˜ƒRail๎˜ƒB2๎˜ƒfits๎˜ƒinto๎˜ƒthe๎˜ƒrail๎˜ƒA1,๎˜ƒand
๎˜ƒthis๎˜ƒoffers๎˜ƒthe๎˜ƒadvantage๎˜ƒthat๎˜ƒthe๎˜ƒrail๎˜ƒB2๎˜ƒcan๎˜ƒbe๎˜ƒslid๎˜ƒinside๎˜ƒthe๎˜ƒrail๎˜ƒA1๎˜ƒ
to๎˜ƒadjust๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒrail๎˜ƒB2๎˜ƒaccurately๎˜ƒto๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒIn๎˜ƒthis๎˜ƒway๎˜ƒit๎˜ƒis๎˜ƒnot๎˜ƒnecessary๎˜ƒto๎˜ƒspend๎˜ƒ
time๎˜ƒand๎˜ƒeffort๎˜ƒcutting๎˜ƒthe๎˜ƒrail๎˜ƒB2.๎˜ƒ
Mount๎˜ƒthe๎˜ƒlower๎˜ƒrails๎˜ƒC3๎˜ƒ
and๎˜ƒD4๎˜ƒon๎˜ƒthe๎˜ƒback๎˜ƒside๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒ
Note:๎˜ƒRail๎˜ƒD4๎˜ƒfits๎˜ƒinto๎˜ƒthe๎˜ƒrail๎˜ƒC3,๎˜ƒand๎˜ƒthis๎˜ƒoffers๎˜ƒthe๎˜ƒadvantage๎˜ƒthat๎˜ƒthe๎˜ƒrail๎˜ƒD4๎˜ƒcan๎˜ƒbe๎˜ƒslid๎˜ƒinside๎˜ƒthe๎˜ƒrail๎˜ƒC3๎˜ƒ
to๎˜ƒadjust๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒrail๎˜ƒD4๎˜ƒaccurately๎˜ƒto๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒIn๎˜ƒthis๎˜ƒway๎˜ƒit
๎˜ƒis๎˜ƒnot๎˜ƒnecessary๎˜ƒto๎˜ƒspend๎˜ƒ
time๎˜ƒand๎˜ƒeffort๎˜ƒcutting๎˜ƒthe๎˜ƒrail๎˜ƒD4.๎˜ƒ
Mount๎˜ƒvertical๎˜ƒrail๎˜ƒโ€“๎˜ƒE5๎˜ƒโ€๎˜ƒwith๎˜ƒthe๎˜ƒroof๎˜ƒslope๎˜ƒat๎˜ƒeach๎˜ƒend๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒ
Mount๎˜ƒthe๎˜ƒrails๎˜ƒY๎˜ƒand๎˜ƒZ๎˜ƒon๎˜ƒthe๎˜ƒunit๎˜ƒwith๎˜ƒthe๎˜ƒcentreโ€line๎˜ƒof๎˜ƒthe๎˜ƒrails๎˜ƒexactly๎˜ƒover๎˜ƒthe๎˜ƒcentreโ€line๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒ
It๎˜ƒis๎˜ƒlongitudinal๎˜ƒon๎˜ƒthe๎˜ƒmiddle๎˜ƒof๎˜ƒthe๎˜ƒunits๎˜ƒto๎˜ƒhold๎˜ƒthe๎˜ƒtrapezoidal๎˜ƒroof๎˜ƒplates.๎˜ƒ
Notice,๎˜ƒthat๎˜ƒrail๎˜ƒZ๎˜ƒfits๎˜ƒover๎˜ƒthe๎˜ƒlower๎˜ƒrail๎˜ƒY,๎˜ƒand๎˜ƒthis๎˜ƒoffers๎˜ƒthe๎˜ƒadvantage๎˜ƒthat๎˜ƒthe๎˜ƒrail๎˜ƒZ๎˜ƒcan๎˜ƒbe๎˜ƒslided๎˜ƒon๎˜ƒthe๎˜ƒ
rail๎˜ƒY๎˜ƒto๎˜ƒadjust๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒrail๎˜ƒZ๎˜ƒaccurately๎˜ƒto
๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒIn๎˜ƒthis๎˜ƒway๎˜ƒit๎˜ƒis๎˜ƒnot๎˜ƒnecessary๎˜ƒto๎˜ƒspent๎˜ƒ
time๎˜ƒand๎˜ƒeffort๎˜ƒon๎˜ƒcutting๎˜ƒthe๎˜ƒrail๎˜ƒZ.๎˜ƒ
It๎˜ƒis๎˜ƒimportant๎˜ƒto๎˜ƒplace๎˜ƒa๎˜ƒscrew๎˜ƒin๎˜ƒeach๎˜ƒhole๎˜ƒโ€“๎˜ƒeven๎˜ƒthough๎˜ƒthe๎˜ƒnumber๎˜ƒof๎˜ƒholes๎˜ƒfor๎˜ƒscrews๎˜ƒseems๎˜ƒto๎˜ƒbe๎˜ƒ
very๎˜ƒlarge,๎˜ƒa๎˜ƒscrew๎˜ƒin๎˜ƒeach๎˜ƒ
hole๎˜ƒis๎˜ƒnecessary๎˜ƒas๎˜ƒthe๎˜ƒstress๎˜ƒon๎˜ƒthe๎˜ƒroof๎˜ƒduring๎˜ƒstormy๎˜ƒweather๎˜ƒis๎˜ƒextremely๎˜ƒ
high.๎˜ƒ๎˜ƒ
8.4๎˜ƒRoof๎˜ƒoverhang๎˜ƒalong๎˜ƒthe๎˜ƒlong๎˜ƒsides๎˜ƒof๎˜ƒthe๎˜ƒunit๎˜ƒ๎˜ƒ
The๎˜ƒroof๎˜ƒplates๎˜ƒare๎˜ƒlonger๎˜ƒthan๎˜ƒthe๎˜ƒwidth๎˜ƒof๎˜ƒthe๎˜ƒunit๎˜ƒto๎˜ƒensure๎˜ƒsufficient๎˜ƒoverhang๎˜ƒalong๎˜ƒthe๎˜ƒsides๎˜ƒof๎˜ƒthe๎˜ƒ
unit.๎˜ƒ
The๎˜ƒoverhang๎˜ƒis๎˜ƒ100๎˜ƒmm๎˜ƒalong๎˜ƒeach๎˜ƒside๎˜ƒof๎˜ƒthe๎˜ƒsmallest๎˜ƒunit๎˜ƒโ€“๎˜ƒsize๎˜ƒ10.๎˜ƒ
The๎˜ƒoverhang๎˜ƒis๎˜ƒ150๎˜ƒmm๎˜ƒalong๎˜ƒeach๎˜ƒside๎˜ƒof๎˜ƒthe๎˜ƒunits๎˜ƒโ€“๎˜ƒsize๎˜ƒ15,๎˜ƒ20,
๎˜ƒ25.๎˜ƒ
The๎˜ƒoverhang๎˜ƒis๎˜ƒ175๎˜ƒmm๎˜ƒalong๎˜ƒeach๎˜ƒside๎˜ƒof๎˜ƒthe๎˜ƒbiggest๎˜ƒunits๎˜ƒโ€“๎˜ƒincluding๎˜ƒsize๎˜ƒ30.๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
8.5๎˜ƒCalculation๎˜ƒof๎˜ƒthe๎˜ƒoverhang๎˜ƒat๎˜ƒthe๎˜ƒends๎˜ƒof๎˜ƒthe๎˜ƒunit.๎˜ƒMount ๎˜ƒoverhang๎˜ƒprofile๎˜ƒโ€“๎˜ƒG1.๎˜ƒ
The๎˜ƒroof๎˜ƒmust๎˜ƒbe๎˜ƒbetween๎˜ƒ200๎˜ƒand๎˜ƒ400๎˜ƒmm๎˜ƒlonger๎˜ƒthan๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒthe๎˜ƒunit๎˜ƒto๎˜ƒsecure๎˜ƒa๎˜ƒroof๎˜ƒoverhang๎˜ƒ
between๎˜ƒ100๎˜ƒmm๎˜ƒand๎˜ƒ200๎˜ƒmm๎˜ƒat๎˜ƒthe๎˜ƒeach๎˜ƒof๎˜ƒthe๎˜ƒ2๎˜ƒends๎˜ƒof๎˜ƒthe๎˜ƒunit,๎˜ƒand๎˜ƒthe๎˜ƒlength๎˜ƒof๎˜ƒthis๎˜ƒoverhang๎˜ƒmust๎˜ƒ
be๎˜ƒcalculated๎˜ƒbefore๎˜ƒthe๎˜ƒfirst๎˜ƒroof๎˜ƒplate
๎˜ƒis๎˜ƒmounted.๎˜ƒ
๎˜ƒ๎˜ƒ
