Start-up, adjustments, use, commissioning and unit in hipernation |
39

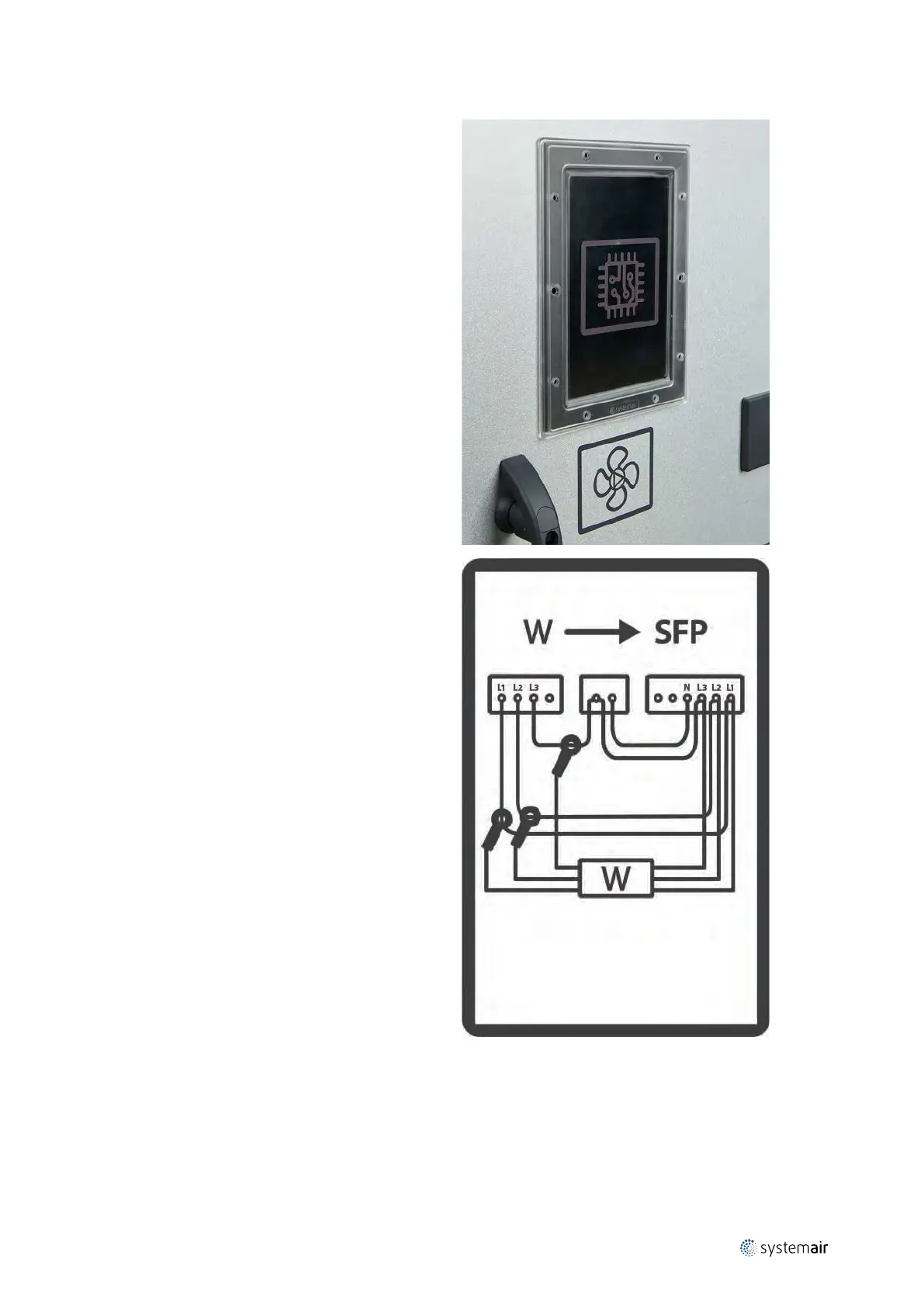

K.7 Accurate measuring of SFP (Specific Fan Power)
When this cover called service door in the inspection door
is removed, there is no leakage of air flow, and the true
power consumption can be measured by connection of
an instrument to the terminals in the cabinet because .
Measure the ampere by the clamps as show and measure
the volts on the terminals L1, L2 and L3 as shown.
