SystemAir SAVE VTR 300/B Installation Manual

Configuration |
7

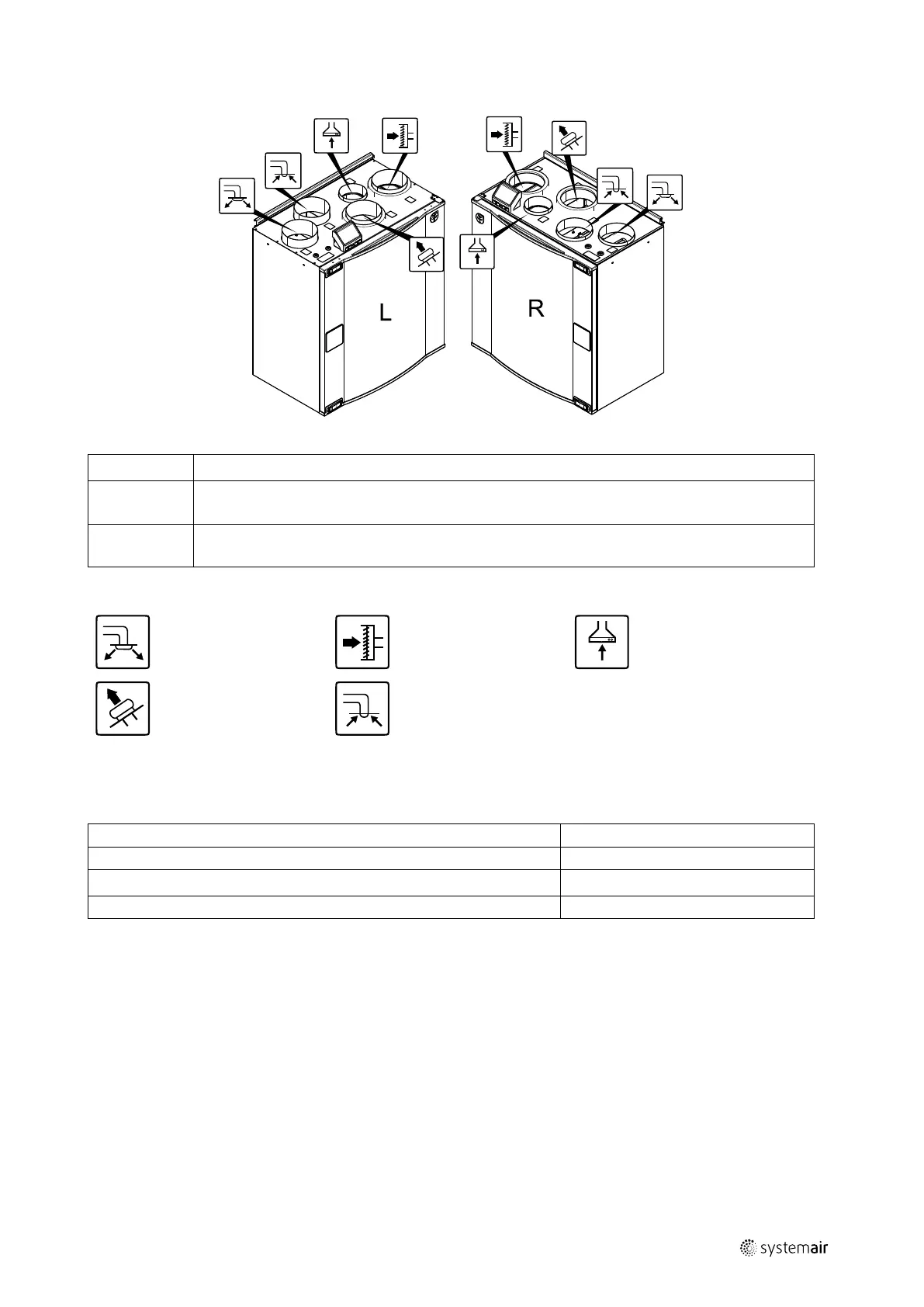

4.3 Duct connections
Fig. 4 Duct connections
Position Description
R
Right hand model (Supply air connection is situated on the right hand side of the unit viewed from
the front)
L
Left hand model (Supply air connection panel is situated on the left hand side of the unit viewed
from the front)
Symbol
Description
Symbol
Description
Symbol
Description
Supply air
Outdoor air Cooker hood air
Exhaust air
Extract air
4.4 Power consumption and fuse size
Re-heater
1670 W
Fans 176 W
Total power consumption
1846 W
Fuse 10 A
5 Configuration
5.1 General
SAVE VTR 300/B has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The
touchscreen display provides information about current state of the unit and allows you to control all system functions.
Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too
hard.
5.2 Startup wizard
During the first power up of the unit, you will be asked to set:
• menu language
• time and date
| v01
