Service
|
31
10.2 Internal components

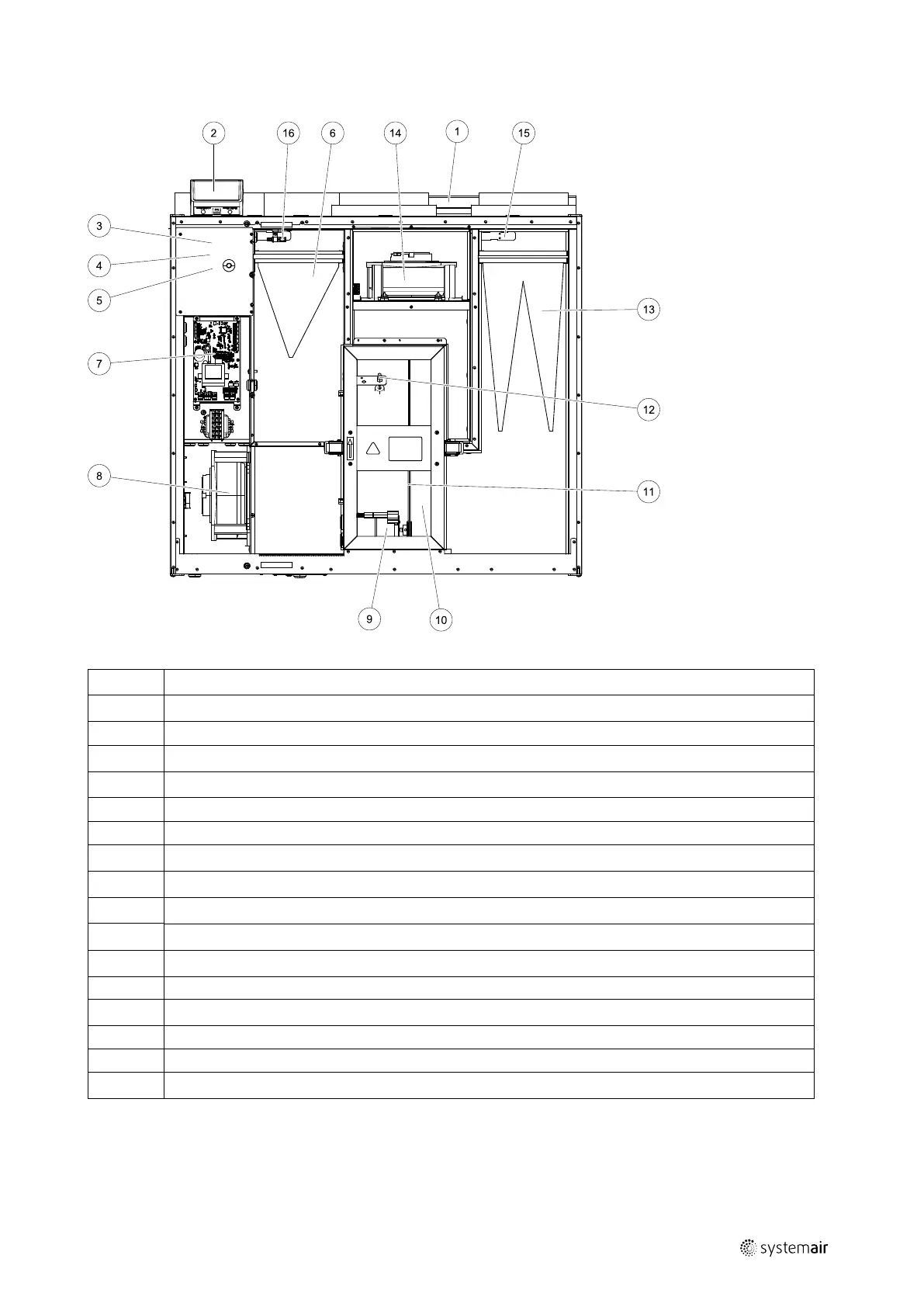

Fig. 10 Internal components
Position Description
1
Mounting bracket
2
External connections
3
Supply air sensor
4
Overheat protection sensor
5
Internal electrical re-heater
6
Extract air filter
7
Main print card
8
Supply air fan
9
Rotor motor and belt pulley
10
Rotating heat exchanger
11
Heat exchanger drive belt
12 Rotor sensor
13
Supply air filter
14
Extract air fan
15
Outdoor air sensor
16
Relative humidity/Extract air temperature sensor
211477 | A001
