38
|
Accessories
11.3 Temperature control

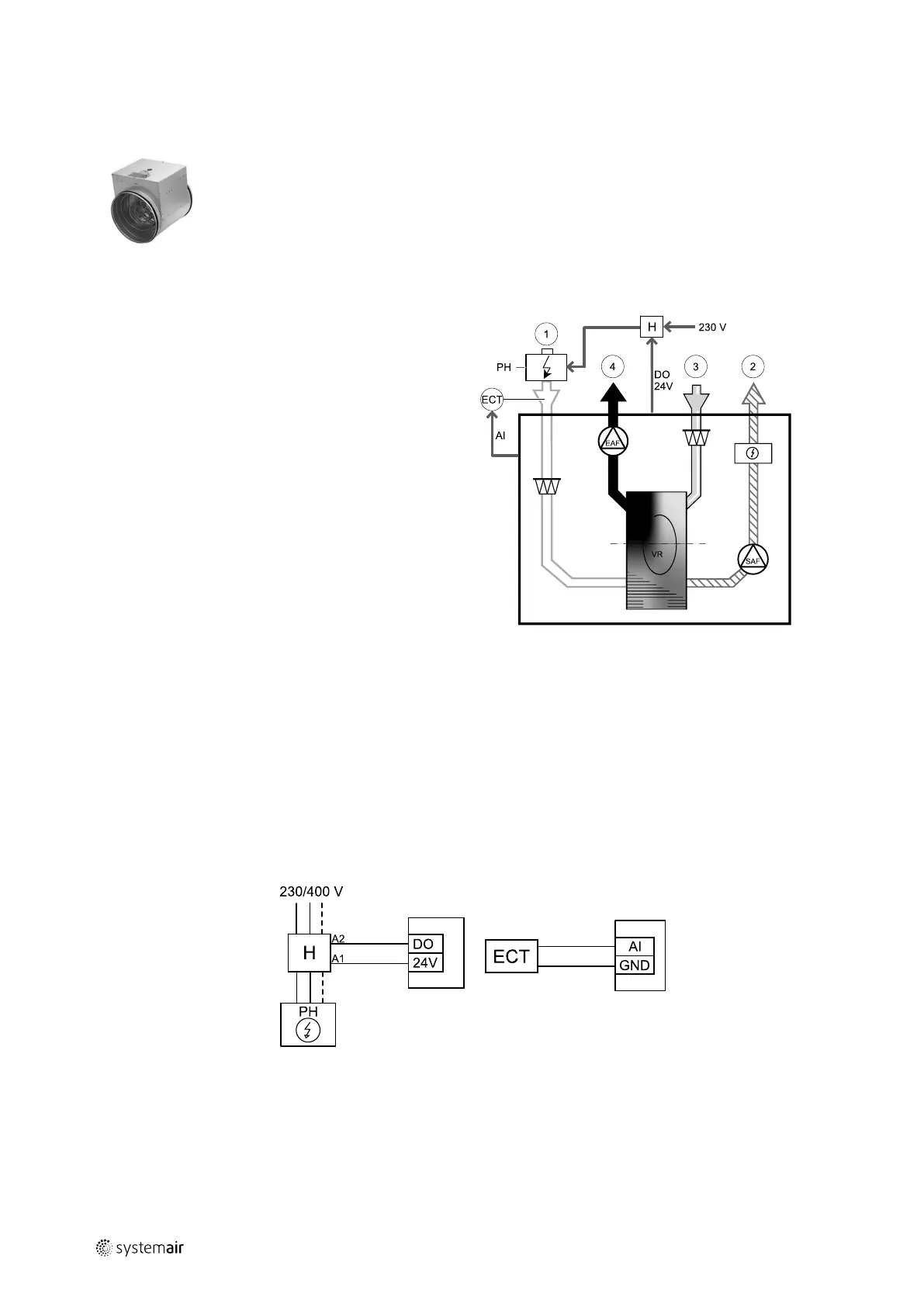

11.3.1 Electrical duct pre-heater
Electrical pre-heater can be installed in the outdoor air duct to pre-heat outdoor air before it reaches the unit and pre-
vent icing in the heat exchanger.
• PH — electrical pre-heater
• ECT — extra controller temperature sensor
• H — contactor
• 1 — Outdoor air
• 2 — Supply air
• 3 — Extract air
• 4 — Exhaust air
Component/product — Article number:
• CB 200-2,1 230V/1 Duct heater — 5384
• CB Preheater Connection Kit — 142852
• Duct temperature sensor (ECT) — 211524
• Contactor B6 30-10 220-240V 40 — 201519
Installation and connection
1. Install electrical pre-heater at least 100 mm distance from the unit in the outdoor air duct. Contactor is used to control
the pre-heater. Connect contactor it to any free digital output.
2. Connect pre-heater and the power supply to the contactor.
3. Connect extra controller temperature sensor (ECT) to any free analog input.
Fig. 13 Pre-heater connections
Configuration
1. Go to Service menu
2. Enter password (default 1111)
3. Go to Components menu, select Extra Controller menu and select mode as Preheater. Pre-heater setpoint
can be set in the same menu. Do other advanced settings if necessary.
211477 | A001
