The use of the µBMS recall command is not compatible with the modbus communication. The
same terminals and addressing DIPs are used in both connection cases.
Caution
24 SYSHRW
14.2. µBMS

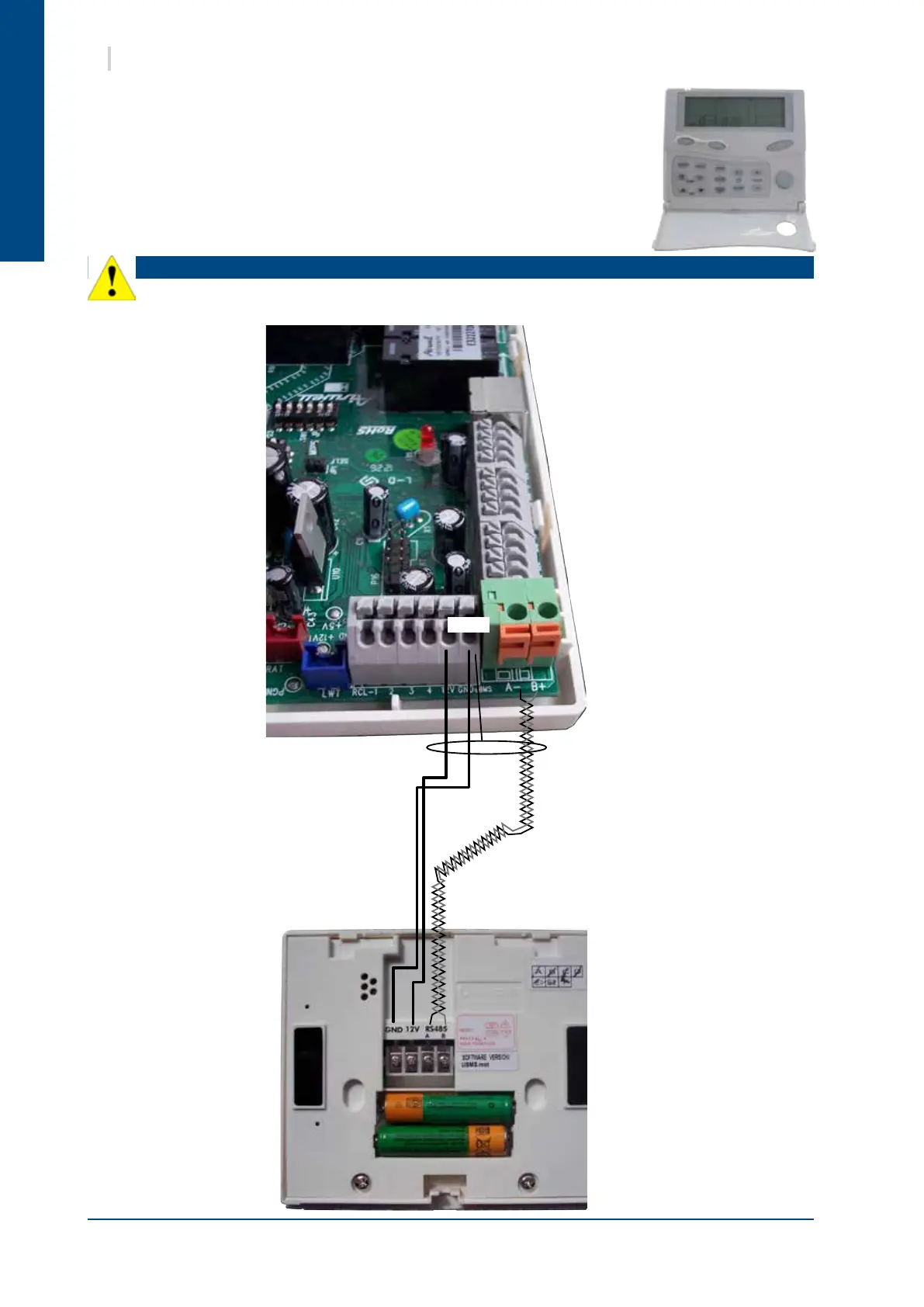

The µBMS control module must be connected in accordance with the diagram
below.
Use screened twisted pair telephone wire with a section of between 0.12 and 0.5
mm²for wiring the control modules.
Refer to the following chapter for detail of the appliances’ addressing.
