Installation |
17

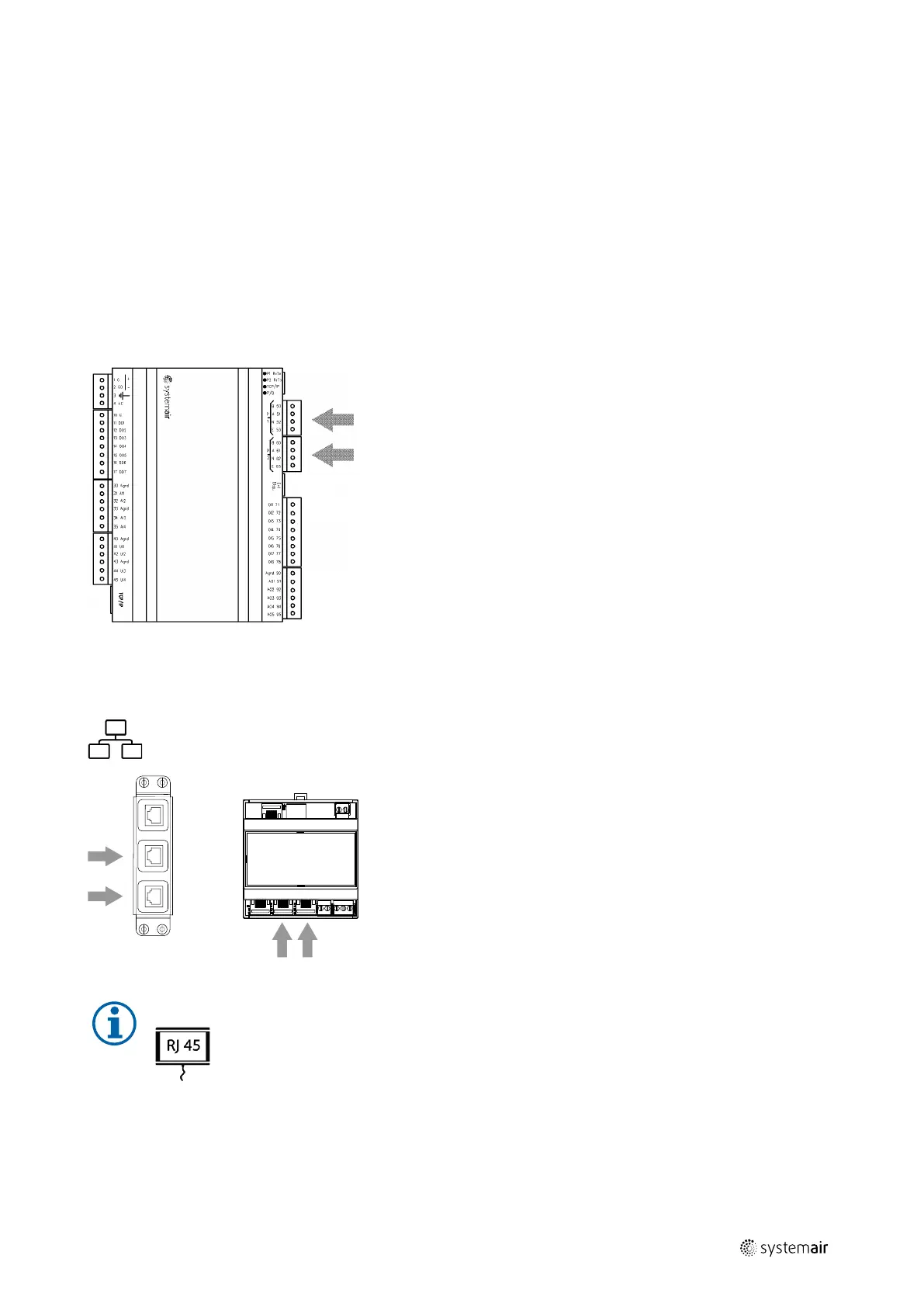

4.7.6 BMS Connection
Communication possibilities for control unit.
• RS485(Modbus): 50-51-52 or 60-61-62
• RS485(BACnet): 50-51-52 or 60-61-62
• RS485(Exoline): 50-51-52-53 or 60-61-62-63
• TCP/IP Exoline
• TCP/IP Modbus
• TCP/IP WEB
• TCP/IP BACnet
RS 485 connection
Fig. 11
TCP/IP connection
Connect the device to panel outlet or switch module, depending on type of air handling unit.
Fig. 12 Panel outlet view is an example,
Note:
24V HMI connection dedicated for the display. The connection is only for HMI and no other
connections is permitted.
151627 | A002
