Product information |
3
3.2 Technical data
3.2.1 Dimensions and weight
C
B60 60
A
D
7070
E
148IHG
J
øK
137
9898
L
F
A-A
A-A
A-A
*1/2"
M

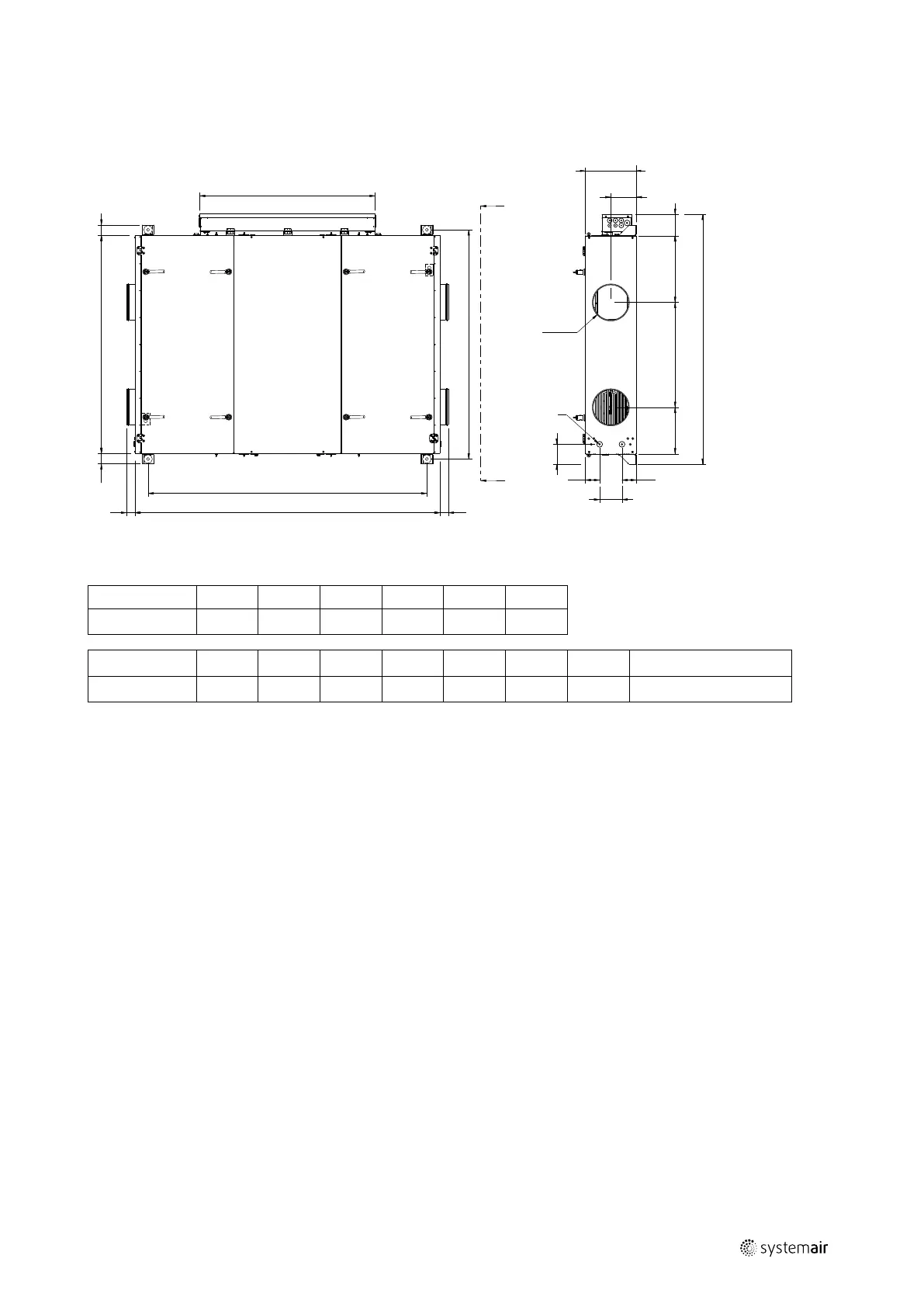

Fig. 1 Dimensions Topvex FC02 (mm) drawn as right hand unit
* = male connection
Model
A B C D E F
Topvex FC02 1500 2101 1919 1208 1577 1720
Model
G H I J øK L M
Weight, kg
Topvex FC02 320 722 459 175 250 154 350 270
151627 | A002
