| Product information
70A70
C C
B60 60
E
D
148
J
IHG
F
L
100
100
136
A-A
A-A
A-A
*1/2"
□K
M

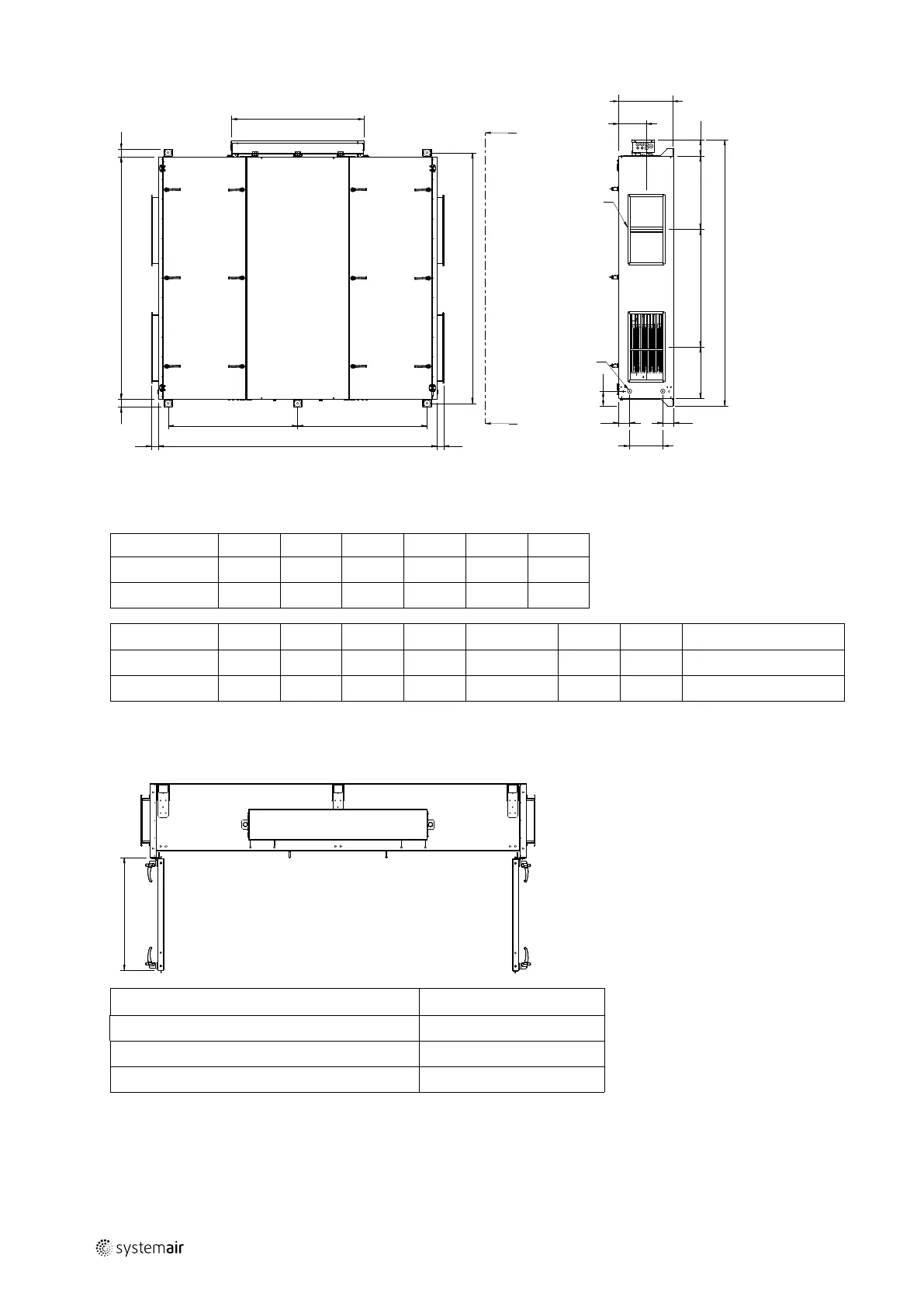

Fig. 2 Dimensions Topvex FC04, Topvex FC06 (mm) drawn as right hand unit
* = male connection
Model
A B C D E F
Topvex FC04 2024 2561 1190 1204 2098 2242
Topvex FC06 2214 2546 1182 1208 2288 2432
Model
G H I J □□K L M
Weight, kg
Topvex FC04 446 979 600 200 250x500 200 400 420
Topvex FC06 471 1073 671 250 300x600 300 500 510
3.2.2 Space required
Image shows Topvex FC06
Model
W (mm)
Topvex FC02 644
Topvex FC04 774
Topvex FC06 765
In case the sliding door application is installed the required space corresponds to the height of the sliding door support
bars (60 mm).
151627 | A002
