Installation |
13
4.7 Connections
4.7.1 Ducting

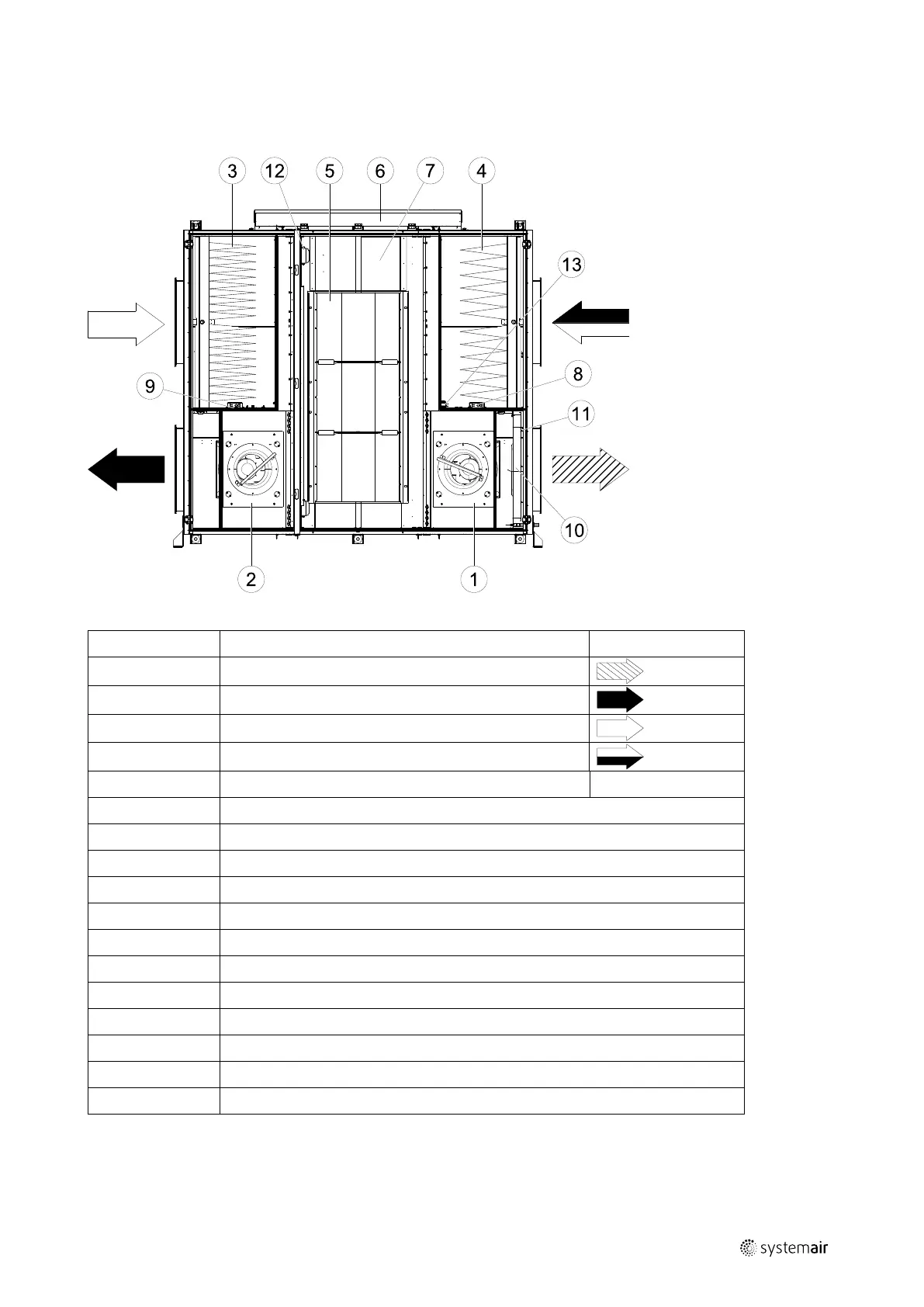

Fig. 8 Connections and basic components in right hand connected units
Position
Description Symbol
A
Connection supply air
B
Connection exhaust air
C
Connection outdoor air
D Connection extract air
1
Fan supply air
2 Fan extract air
3
Filter supply air
4
Filter extract air
5
Heat exchanger
6
Electrical connection box
7
Damper by-pass outdoor air
8
Pressure transmitter supply air fan/extract air filter
9
Pressure transmitter extract air fan/supply air filter
10
Re-heater battery
11
Manual over heat protection reset
1
12
Pressure transmitter defrosting exchanger
13
Air flow sensor
1
1
Only valid for units with electrical re-heater battery
151627 | A002
