| Technical Data
3 Technical Data
3.1 Power consumption and fuse size
SAVE VSR 300/500 come with 1670 Winstalled re-heater battery.
Model
VSR300 VSR500
Re-heater
1670 W
Fans 166 W 338 W
Total power consumption
1836 W 2008 W
Fuse 10 A 13 A
3.2 System curves
Every change in the pressure of the ventilation system, will result in a different airflow.
Each curve shows a different airflow level setting:
1. 16% (MINIMUM LEVEL)
2. 20% (LOW LEVEL)
3. 50% (NORMAL LEVEL)
4. 80% (HIGH LEVEL)
5. 100% (MAXIMUM LEVEL)
Airflow level settings can be changed in Service menu.
The pressure is affected by the filter type and differ with each filter combination.
System curves for each airflow level with standard filters shown bellow.

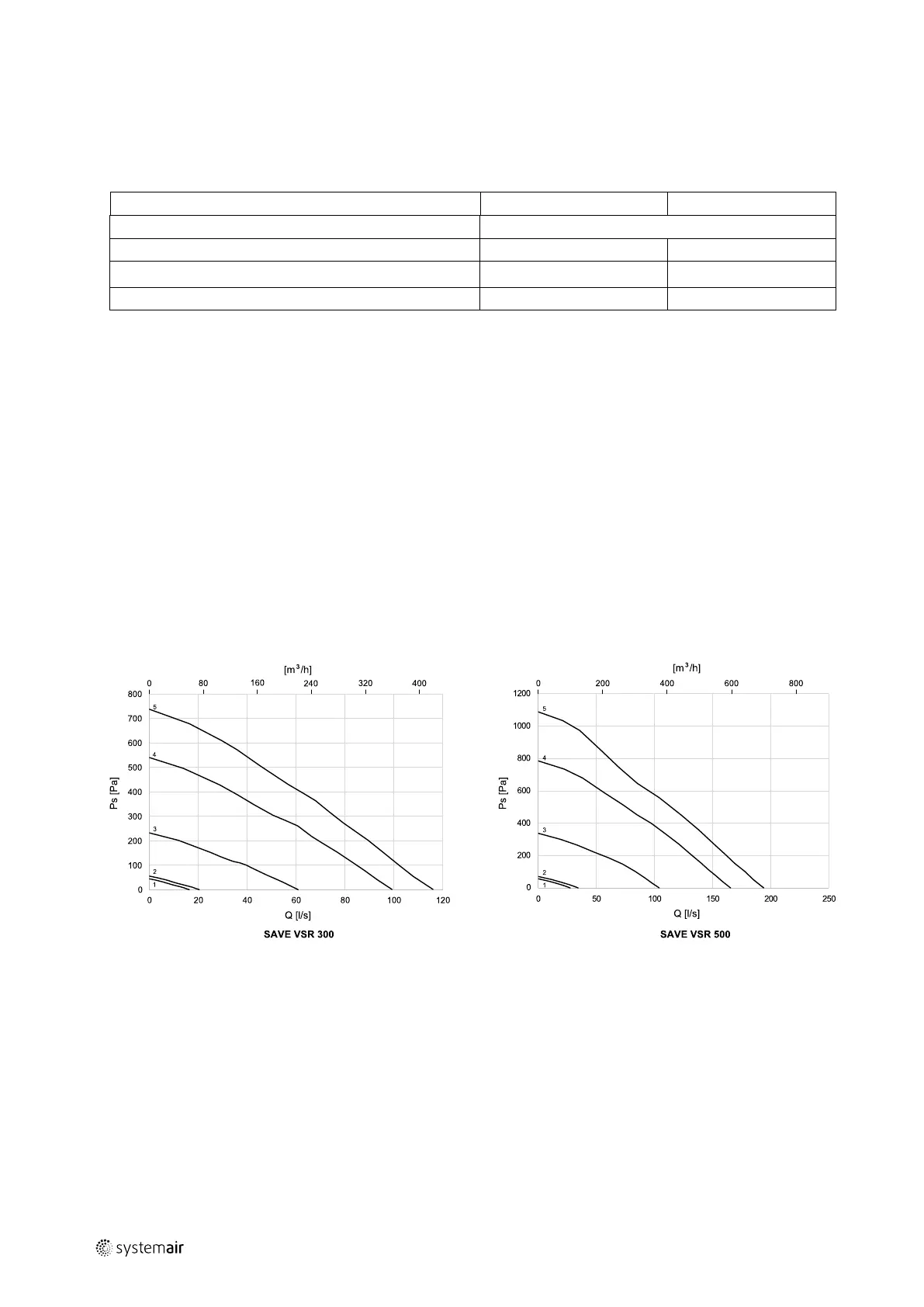

3.2.1 Supply air, F7/ePM10 80% type filter
| v1_1.12.0

SystemAir VSR 300 Specifications

General

Supply voltage	230 V
Frequency	50 Hz
Max. extract air temperature	60 °C
Enclosure Class	IP44
Phase	1
