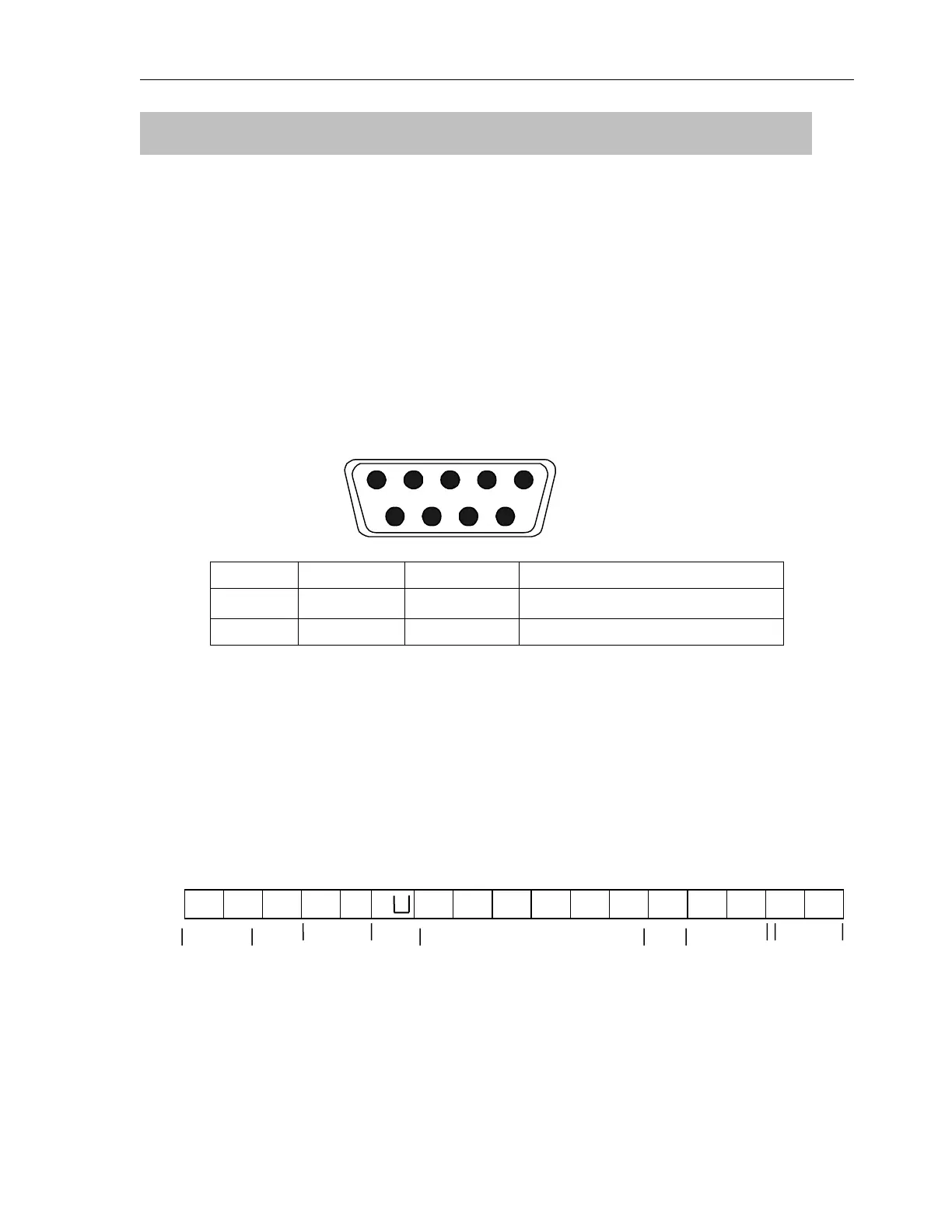

9. RS-232 OUTPUT
1. Specifications:
RS-232 output of weighing data
ASCII code
600~9600 Baud
8 data bits
No Parity
2. RS-232 (9pin D type connector)
Pin
２
RXD
Input
Receiving data
Pin ３
TXD
Output
Transmission data
Pin ５
GND
―
Signal ground
9pin D Connecter:
Indicator Computer / Printer
Pin 2: Pin 3
Pin 3: Pin 2
Pin 5: Pin 5
3. Continuously output protocol
Con1: Weighing mode
S
T
，
G
S
-/
k
g
CR
LF
-HEADER1
-WEIGHT UNIT-
TERMINATOR
-WEIGHT DATA-
-HEADER2-
１
２
３
４
５
６
７
８
９
